Actually quite easy Section one = inverter 1 Section two = inverter 2 Section three = non essentials like underfloor heater etc all fed from common supply, which have an integrated generator on grid side for extended outages 14 hours +
-
Morning all I split my distribution board into sections, running a 5kw system on each half My query relates to the ct installation 1. Must it be installed on the main incomer from the council that feeds both halves, or 2. Should it be installed on the individual feeders to the inverters
-

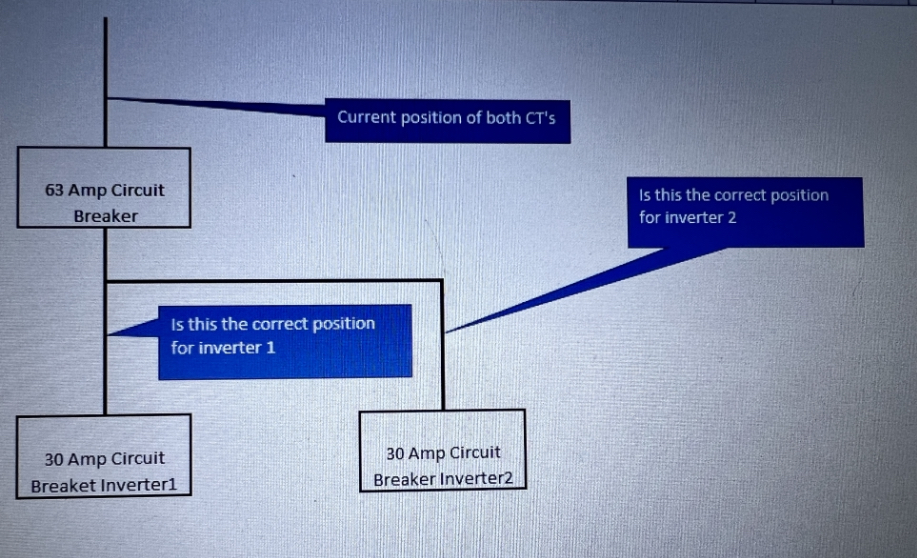

Morning all I split my DB into two separate systems both receiving power from the same source my question is should the CT,s for both units be on the same main live incomer, or should I install the CT coils on the individual AC supply (after the split was done) for each inverter regards
