Thanks for Pointing out my error. Fair point Knyee isn’t a household name here in SA yet. They’re the residential ESS brand of Chilwee Group (Chaowei), one of China’s biggest battery manufacturers: founded 1998, Hong Kong listed, 30+ factories, 100+ subsidiaries, and tens of thousands of employees. They produce on a scale that dwarfs every local South African battery brand combined many more known brands likely come out of their factories. The ES-LV-16 is essentially their flagship low voltage floor standing model coming out of that industrial base. The same factories also supply white label versions like certain Hina ESS units that typically run a scaled down version of the Knyee Energy BMS while the cells and internal components are the same.

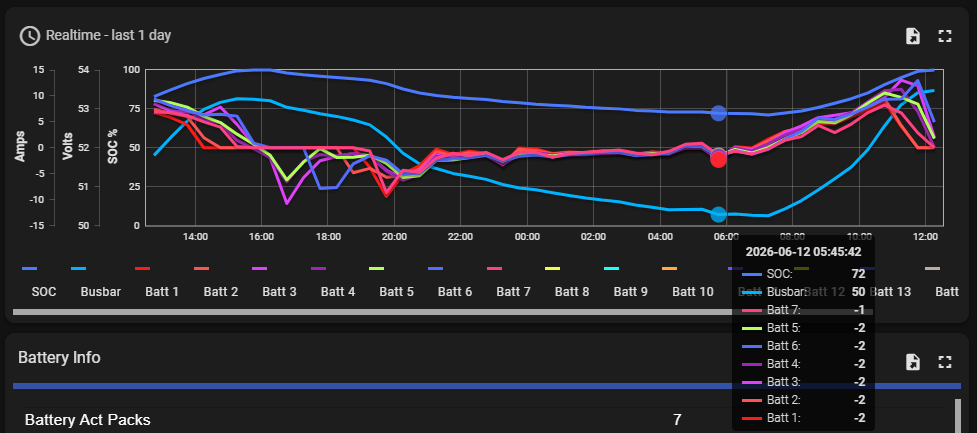

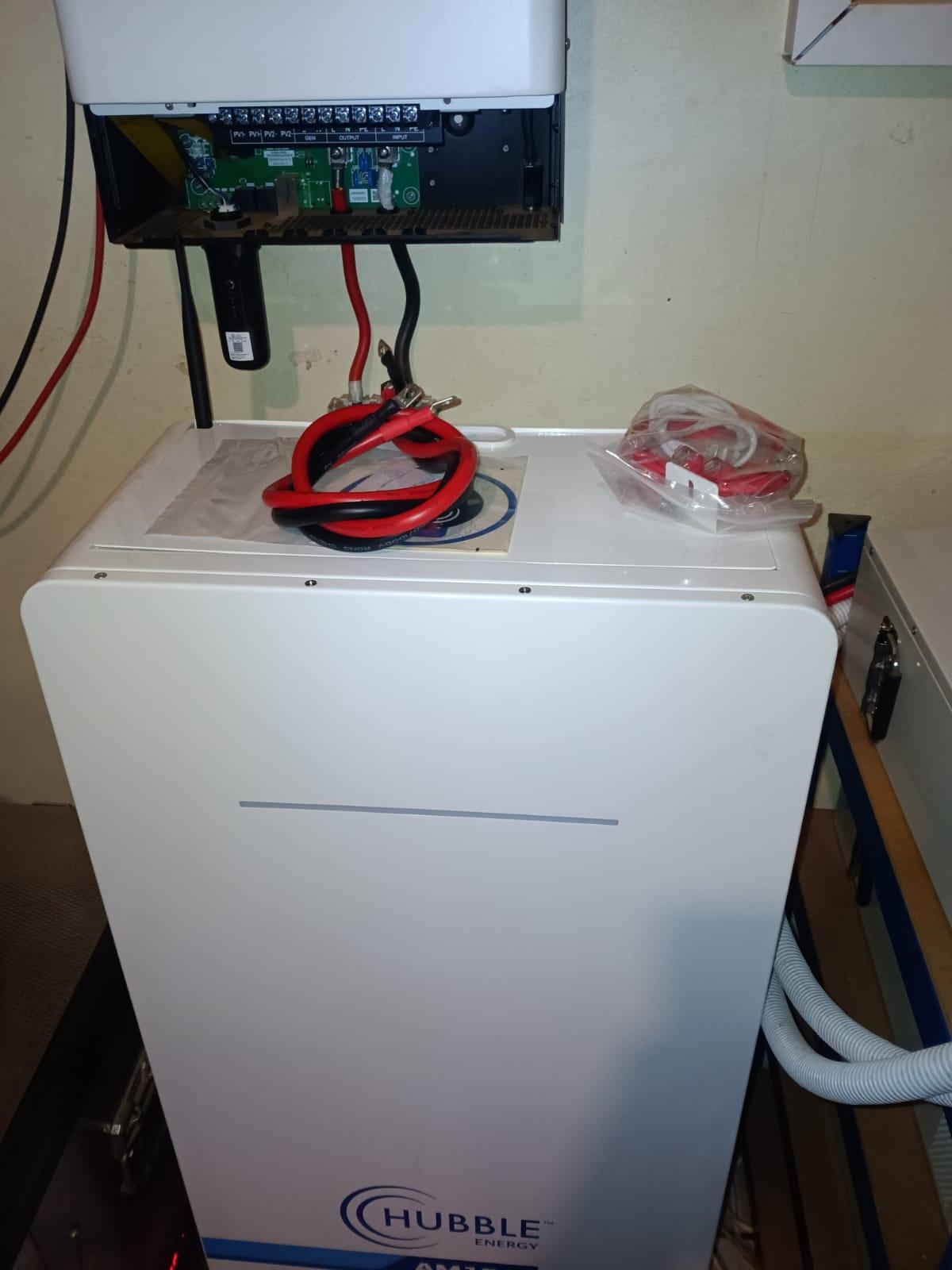

Very Interesting to see how creative one can be with off grid systems the Solis does indeed make things more flexible and eliminates the need to have loads on seperate feeds I have been Off Grid for many years now and my generator is still brand new I dont think it has done more than 2 Hours running time Since I bought it never had grid to start. What I find impressive with the Hubble setup is that even though i am running a 16KW and a 5KW batteries together they charge and discharge in ratio and maintain decent SOC balance with each other through out the charge and discharge curves. This weekend I plan to do the full inverter integration with Solis cloud had a few special cables I needed to make up this potentially will allow me to monitor the Solis inverters in real time on the Hubble Cloudlink portal this is very useful when monitoring wind power production and realtime loads on the inverters will also provide some nice data to analyse.

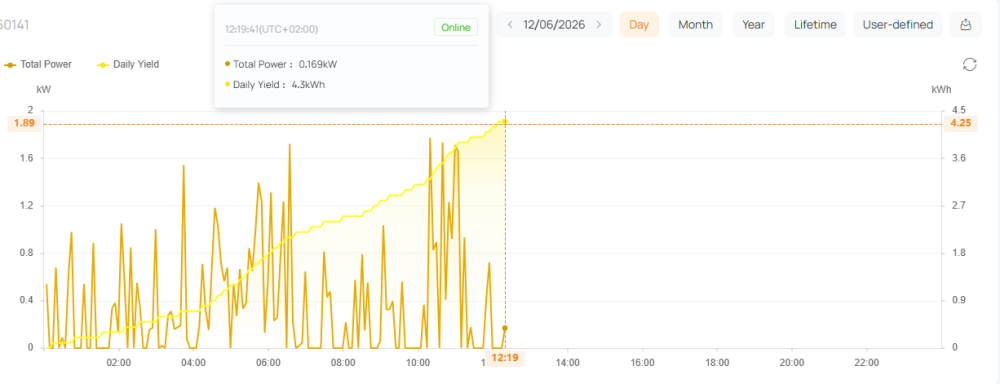

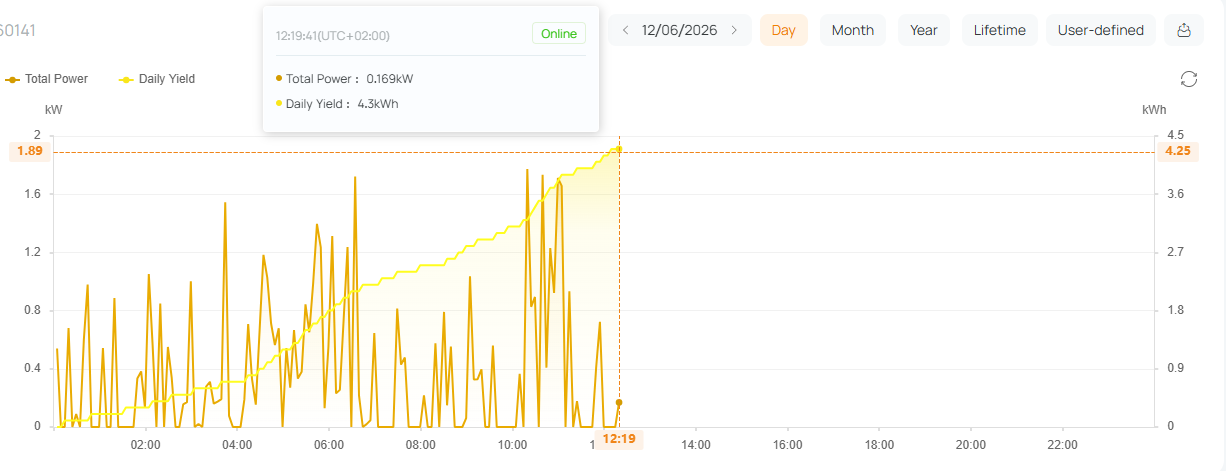

Hello All here is an update on my review thus far and the block diagram requested by @Yellow Measure System Update – Current Operating Mode + Parallel Performance Here’s a clear overview of how the system is currently configured and performing: Current System Layout Solis S6 8kW Pro (Master / Grid-forming) Battery: 7 × Hubble AM2 (≈30 kWh) PV array charging its own battery bank Solis S5 4.6kW AC-coupled via the Aux port Solis S6 6kW Pro (sees the 8kW as “Grid”) Battery: AM16+ (16.1 kWh) + AM5+ (5.12 kWh) running in parallel (≈21.2 kWh total) 2 kW Wind turbine on the MPPT (constant voltage mode) “Allow Grid Charge” is enabled with a timed schedule Night-Time Priority Operation From 17:00 to 08:00 the 6kW inverter carries 100% of the house loads. As a result the 8kW battery bank stays completely idle overnight (zero discharge). At 08:00 the 6kW stops injecting. By that time solar production has already started, so the PV on the 8kW essentially carries the daytime loads and the older AM2 bank still sees very little (or zero) discharge. This is a very elegant way of prioritising the newer LFP batteries at night while protecting the older AM2 bank.Parallel Battery Performance (AM16+ + AM5+)The two batteries are charging and discharging proportionally. Their State of Charge stays within 1% of each other throughout the entire charge and discharge curve across multiple cycles. This is excellent balancing behaviour and shows that the Cloudlink / BMS communication between the different capacity packs is working very well. ┌─────────────────────────────────────────────────────────────────────────────┐ │ MICRO-GRID SYSTEM │ │ (Current Night-Time Priority Operating Mode) │ └─────────────────────────────────────────────────────────────────────────────┘ ┌──────────────────┐ │ HOUSE LOADS │ └────────┬─────────┘ │ ┌────────────────────────┴────────────────────────┐ │ │ ▼ ▼ ┌───────────────────────────────────┐ ┌───────────────────────────────────┐ │ SOLIS S6 8kW PRO HYBRID │ │ SOLIS S6 6kW PRO HYBRID │ │ (Master / Grid-Forming) │◄── sees as │ (Sees 8kW as “Grid”) │ │ │ “Grid” │ │ │ Battery: 7 × AM2 (≈30 kWh) │ │ Battery: AM16+ + AM5+ Parallel │ │ │ │ (≈21.2 kWh) │ │ • PV charges its own battery │ │ • “Allow Grid Charge” = ON │ │ • Completely IDLE at night │ │ • Timed charge schedule │ │ (zero discharge) │ │ • From 5 PM → 8 AM carries │ │ • Only starts bearing load │ │ ALL the house loads │ │ at 08:00 when 6kW stops │ │ │ │ injecting │ │ │ │ • By then PV is already covering │ │ │ │ most/all of the load │ │ │ └──────────────┬────────────────────┘ └──────────────┬────────────────────┘ │ │ │ │ ┌─────────┴─────────┐ ┌─────────┴─────────┐ │ │ │ │ ▼ ▼ ▼ ▼ ┌─────────────┐ ┌─────────────┐ ┌─────────────┐ ┌─────────────────┐ │ PV Array │ │ Solis S5 │ │ 2 kW Wind │ │ Hubble Cloudlink│ │ (charges │ │ 4.6 kW │ │ Turbine │ │ (on both │ │ AM2 bank) │ │ (AC-coupled│ │ (on 6kW │ │ AM16+ & AM5+) │ │ │ │ via Aux) │ │ MPPT) │ └─────────────────┘ └─────────────┘ └─────────────┘ └─────────────┘I’ll continue collecting more data and will share detailed graphs soon.

JA Solar JAM66D46 LB 715W | LONGi Hi-MO 7 LR8-66HGD 610W | LONGi Hi-MO X10 Explorer 645WFull Pallets Only | EX Johannesburg Genuine Tier 1 n-type bifacial modules at aggressive pricing. 1. JA Solar JAM66D46 LB – 715Wn-type Double Glass Bifacial https://www.jasolar.eu/fileadmin/data/4.0/JAM66D46_LB/JAM66D46_715-740_LB_Global_EN_20250709C.pdf JAM66D46 LB, 715-740W - JA SOLAR 715W high-power output Up to 23.0% efficiency 80% bifaciality Double glass construction 12-year product + 30-year linear power warranty 33 panels per pallet 2. LONGi Hi-MO 7 – LR8-66HGD 610WHPDC Bifacial Module LongiHi-MO 7 - LONGiUniform smart soldering increases the power and efficiency of the module, and improves the power load capacity.610W Up to 22.6% efficiency High bifaciality (80% ±5%) Excellent temperature coefficient 12-year product + 30-year linear power warranty 36 panels per pallet 3. LONGi Hi-MO X10 Explorer – LR7-72HVD 645W BC-Cell Technology LongiHi-MO X10 - LONGiHi-MO X10 takes over the core technology of HPBC 2.0 cells, leading in power generation performance, reliability, and customer benefits, which can better meet the needs of distributed customers for pr645W Up to 23.9% module efficiency Excellent for high-temperature & industrial cement roofs Lower operating temperature 15-year product + 30-year linear power warranty 36 panels per pallet Pricing (Full Pallets Only – EX JHB) Panel Watts Price per Watt (excl VAT) Price per Panel (excl VAT) Price per Panel (incl VAT) JA Solar JAM66D46 LB 715W 715 R2.35 R1,680 R1,932 LONGi Hi-MO 7 LR8-66HGD 610W 610 R2.35 R1,434 R1,649 LONGi Hi-MO X10 Explorer 645W 645 R2.45 R1,580 R1,817 Installer prices available on request. Large volumes (half to full container – approx. 720 panels) will receive better pricing. Important Notes: Full pallets only Collection / EX Johannesburg Legitimately sourced panels ERP included Prices do not include delivery Contact us to reserve your pallet(s): 📞021 276 2975 📱WhatsApp: 074 218 9845 ✉️[email protected] Or comment / PM us on the forum. Thank you for your continued support. The sale of these quality products helps keep the wheels at PowerForum turning. Without your support, we simply could not continue providing this free resource to the community. @Powerforum Store www.powerforum.co.za

Canadian Solar 615W TOPBiHiKu6 N-type Bifacial https://www.canadiansolar.com/na/topbihiku6/ Collection CPT and Durban Only Genuine Tier 1 Canadian Solar TOPCon bifacial panels. One Pallet is 36 panels. Singles are 35 and less panels Pricing Quantity Price per Watt (excl VAT) Per Panel (excl VAT) Per Panel (incl VAT) Full Pallets / Larger volumes R2.25 R1,384 R1,592 Single panels R2.35 R1,445 R1,662 Important Notes: Full pallet pricing applies to complete pallets or larger volumes Collection from Cape Town and Durban only Legitimately sourced panels ERP included Prices do not include delivery Broken pallets / small quantities will be charged at the single panel rate Stock is limited.Contact us to order: 📞021 276 2975 📱WhatsApp: 074 218 9845 ✉️[email protected] Or comment / PM us on the forum. Thank you for your continued support. The sale of these quality products helps keep the wheels at PowerForum turning. Without your support, we simply could not continue providing this free resource to the community. @Powerforum Store www.powerforum.co.za CS-Datasheet-TOPBiHiKu6_CS6.2-66TB_v1.2_EN (2).pdf

We Can supply you with one for R6 966,25 Vat Included ex delivery youre welcome to contact me on whats app 0742189845 there are 46 Units in stock. Power Forum Renewable Energy Store | By Powerforum.co.zaS6 4.6kW 2MPPT 1PH Inverter - with DCS6 4.6kW 2MPPT 1PH Inverter - with DC Part No: SOL-4.6-S6-DT-DC Inverters - Main Units Rating: 4,600W Phases: 1 Solis Series 6 is the latest generation of grid-tied residential inverters from Solis. T

Added now in the IP65 battery realm is the Pylontech Fidus Power Forum Renewable Energy Store | By Powerforum.co.zaPylon Fidus Plus16kWh 51.2V Li-ion IP65 With Wheels and C...Fidus Battery Plus IP65 With 51.2 V / 16 kWh, Fidus Battery Plus is an advanced residential and small commercial energy storage battery, engineered for high-capacity applications and long-term reliabiAll the Solis Inverters are IP66 meaning they can survive direct spray Power Forum Renewable Energy Store | By Powerforum.co.zaSolis S6 Pro 8kW Plus Hybrid Inverter (S6-EH1P8K-L-PLUS)...Shop highly efficient Solis S6 Pro 8kW Advanced Hybrid Inverter that allows the user to hit those ‘parity’ targets by managing power coming from multiple sources such as solar. Request a Quote now!

Limited Stock Available Only 18 Inverter Units Left Complete residential backup package with dual 10 year swap out warranties. Package Includes: 1 × Solis S6 5kW Pro Hybrid Inverter Dual MPPT • Up to 8 kW PV input • 112A charge/discharge • Ultra-fast UPS switching • Generator support • Peak shaving 10-Year Swap-Out Warranty 1 × Kynee 5 kWh Lithium Battery High-quality LiFePO4 10-Year Swap-Out Warranty Knyee_ESLV5_5.12Kwh_Battery.pdfSolis_datasheet_S6_EH1P_3_6_K_L_PRO_ZAF_V1.2_202503.pdf Special Package PriceR21,950 excl VAT R25,243 incl VAT One of the sharpest 5 kW hybrid + 5 kWh battery deals currently available.Limited stock first come, first served. Contact us now to secure yours: 📞021 276 2975 📱WhatsApp: 074 218 9845 ✉️ [email protected] Or comment / PM us on the forum. Thank you for your continued support. The sale of these quality products helps keep the wheels at PowerForum turning. Without your support, we simply could not continue providing this free resource to the community. @Powerforum Store Official store of the www.powerforum.co.za

Knyee Energy ES-LV-16 Update Real World Testing Progress Hi all,Here’s a progress update on the Knyee ES-LV-16 after several weeks of continuous operation in my micro-grid. Efficiency & Temperature Behaviour Round trip efficiency is measuring consistently around 98%. I have also been charging and discharging the battery at a constant 6 kW. During these sustained high-power sessions the battery shows only a very small temperature rise above ambient. Ambient temperatures over the test period have ranged from -2°C to 22°C, and the pack continues to run impressively cool. BMS Communication & Flexibility I have switched the battery between different inverters and the BMS communication happens seamlessly every time after selecting the correct protocol in the Knyee App. It also performs very well in pure voltage mode. Capacity & Cell Quality Although the design capacity is listed as 16.08 kWh, I am consistently able to extract close to 17.6 kWh from the battery. This is a strong indicator of high-grade, new cells. Nominal capacity is calculated at 51.2V × 314Ah = 16.08 kWh. Delivering close to 17.6 kWh means the cells are actually producing significantly more than their rated 314Ah roughly in the 340Ah+ range. New, high-quality Grade-A LiFePO4 cells often show this kind of over capacity when fresh. Lower-grade or aged cells rarely deliver this much above the rated figure. BMS App The Knyee App remains one of the strongest points of this battery. It is extremely comprehensive and offers a high level of visibility and control. Key features I am making use of include: Detailed real-time cell-level data (individual cell voltages, multiple temperature sensors, balancing status) Clear historical logs and graphs Easy protocol selection for different inverter brands Comprehensive alarm and protection event logs Parameter monitoring Reliable remote access over WiFi I am still figuring out the best way to export the data from the app so I can analyse it properly on my computer. I will post screenshots of the app and detailed charge/discharge curves at a later stage once I have sorted the data export. Ongoing Testing I will continue both short term and long term evaluation, including further capacity verification, higher load testing, extended cycling, and long term capacity retention monitoring. More detailed updates will follow as the data builds up. Happy to answer any questions. Cheers!

Full Pallets Only | Collection or Delivery Available We have limited pallet stock available on high-quality Tier 1 Premium Bifacial solar panels at aggressive pricing. Please note: 36 Panels in 1 Pallet These prices apply to full pallets only. Broken pallets / smaller quantities will be significantly more expensive. Prices do not include delivery (except where specifically stated). Delivery can be arranged at an additional cost. All panels are legitimately sourced and ERP is included. Available Stock & Pricing Panel Watts Excl VAT Incl VAT Notes Jinko 620W Bifacial 620 R1,538 R1,769 Jinko 620W Bifacial (Limited) 620 R1,544 R1,776 Limited stock Jinko 585W Bifacial 585 R1,451 R1,669 JA Solar 620W Bifacial 620 R1,562 R1,796 JA Solar 620W Bifacial 620 R1,581 R1,818 JA Solar 605W Bifacial 605 R1,561 R1,795 JHB Delivery Included JA Solar 625W Bifacial 625 R1,594 R1,833 Longi 620W Bifacial 620 R1,581 R1,818 Longi 620W Bifacial 620 R1,662 R1,911 Longi 620W Steel Frame Bifacial 620 R1,612 R1,854 Longi 635W Bifacial 635 R1,702 R1,957 TCL 620W Bifacial 620 R1,593 R1,832 Astronergy 610W Bifacial 610 R1,556 R1,789 Astronergy 580W Bifacial 580 R1,479 R1,701 All prices are full pallet only. Important Details: All panels are Tier 1 Premium Bifacial Minimum order = 1 full pallet Collection available from Johannesburg, Durban or Cape Town (CPT stock limited) Delivery available nationwide (quoted separately) – except JA 605W which includes JHB delivery This is special / indent stock (not held on our online store) Legitimately sourced with ERP included Stock is limited and moving quickly. Contact us to reserve a pallet: 📞 021 276 2975 📱 WhatsApp: 074 218 9845 ✉️ [email protected] Or comment / PM us on the forum.PowerForum Store www.powerforum.co.za Your support keeps our wheels turning so we can provide this great platform to you for free.

178.56 kWp Solar + 256 kWh Battery + 125 kW Hybrid System A complete, high-performance commercial industrial solution at an exceptional price. IBR roof Mounting system will be cheaper. Package Includes: 1 × Solis 125 kW 3-Phase HV Hybrid Inverter (10-Year Swap Out Warranty) 16 × Lumo OMS51314 16 kWh High Voltage Batteries (256 kWh total) (10-Year Warranty) 1 × Lumo HV Battery Management Unit 1 × Lumo 9+9 3U Rack 288 × Jinko 620 W Bi-facial Tier 1 Solar Panels (178.56 kWp) 288 × Ground Mounting Structures 2 × 10-in 10-out PV Combiners (with SPD & Isolator) 1,150 m Black & Red 6 mm² PV Cable 200 m Black & Red 10 mm² PV Cable 30 × MC4 Twin Packs 1 × DC 2P 200A 1000V MCCB Battery Cables & Lugs (35 mm²) Battery Power: 128 kW continuous at 0.5C perfectly matched to the 125 kW inverter. Special Package Price R1,350,000 excl VAT R1,552,500 incl VAT Key Benefits: Fully matched high-voltage commercial system 10-year warranty on the Solis inverter Large 256 kWh battery bank Premium Jinko bifacial panels Complete kit ready for installation Prices exclude delivery and installation. Stock is limited. Contact us today: 📞 021 276 2975 📱 WhatsApp: 074 218 9845 ✉️ [email protected] Or comment / PM us on the forum. Thank you for your continued support. The sale of these quality products helps keep the wheels at PowerForum turning. Without your support, we simply could not continue providing this free resource to the community. @Powerforum Store www.powerforum.co.za

Solis 50 kW 3-Phase Hybrid Inverter + Pylontech 62.48 kWh HV Battery System A fully matched high-voltage solution ideal for large homes, farms, small commercial and peak-shaving applications. Package Includes: 1 × Solis 50 kW 3-Phase HV Hybrid Inverter (10-Year Warranty) 11 × Pylontech M3A 5.68 kWh HV Lithium Batteries (62.48 kWh total) 1 × Pylontech SC1000 M3A180 BMU 1 × Pylontech M3 9+9 Layer Rack 1 × AC Combiner Box (for 50 kW) 1 × Battery Disconnect Box (DC 1000V / 160A) Expandable: The 9+9 rack allows for up to 17 batteries + 1 BMU, giving you a maximum capacity of 96.56 kWh simply by adding more modules later. Special Package Price R227,000 excl VAT R261,050 incl VAT Excluding Delivery Key Benefits: High-voltage system for better efficiency and lower cable losses 10-year warranty on the Solis inverter Proven Pylontech reliability Fully expandable up to 17 modules (96.56 kWh) Complete package with protection accessories included Prices exclude delivery and installation. Stock is limited. Contact us today: 📞021 276 2975 📱 WhatsApp: 074 218 9845 ✉️[email protected] Or comment / PM us on the forum. Thank you for your continued support. The sale of these quality products helps keep the wheels at PowerForum turning. Without your support, we simply could not continue providing this free resource to the community. @Powerforum Store Your official www.powerforum.co.za online store.

Power Forum Renewable Energy Store | By Powerforum.co.zaTier 1 Pylon PowerCube M3A, 51.12kWh, 342V 148Ah stack of...Pylon PowerCube M3A, 51.12kWh, 342V 148Ah stack of 9 batteries Part No: PYLON-PC-M3A-BATT-11 Storage Systems - Li-ion Battery Pack This part is made up of the following items: 9 x PYL-PC-M3A-BATT PyloPower Forum Renewable Energy Store | By Powerforum.co.zaTier 1 Pylon PowerCube M3A, 62.48kWh, 418V 148Ah stack of...Pylon PowerCube M3A, 62.48kWh, 418V 148Ah stack of 11 batteries Part No: PYLON-PC-M3A-BATT-11 Storage Systems - Li-ion Battery Pack This part is made up of the following items: 11 x PYL-PC-M3A-BATT PyPower Forum Renewable Energy Store | By Powerforum.co.zaTier 1 Pylon PowerCube M3A, 73.882kWh, 499.2V 148Ah stack...Pylon PowerCube M3A, 73.882kWh, 499.2V 148Ah stack of 13 batteries Part No: PYLON-PC-M3A-BATT-13 Storage Systems - Li-ion Battery Pack This part is made up of the following items: 13 x PYL-PC-M3A-BATTPower Forum Renewable Energy Store | By Powerforum.co.zaTier 1 Pylon PowerCube M3A, 96,56 kWh, 646V 148Ah stack o...Pylon PowerCube M3A, 96.56kWh, 646V 148Ah stack of 17 batteries Part No: PYLON-PC-M3A-BATT-11 Storage Systems - Li-ion Battery Pack This part is made up of the following items: 17 x PYL-PC-M3A-BATT PyPower Forum Renewable Energy Store | By Powerforum.co.zaPylon UF5000 5.12kWh 51.2V Li-ion battery (excl. brackets)Pylon UF5000 5.12kWh 51.2V Li-ion battery (excl. brackets)Part No: PYLON-UF5000 Storage Systems - Li-ion Battery Pack The UF5000 is a 51.2V, 5.12kWh lithium ion battery with incredible features to proPower Forum Renewable Energy Store | By Powerforum.co.zaPylon UF5000 5.12kWh 51.2V Li-ion Wall-Mount batteryPylon UF5000 5.12kWh 51.2V Li-ion Wall-Mount batteryPart No: PYLON-UF5000-WALL Storage Systems - Li-ion Battery Pack The UF5000-WALL is a 51.2V, 5.12kWh 1C lithium-ion battery with incredible featuresPower Forum Renewable Energy Store | By Powerforum.co.zaPylon UP5000 4.8kWh Li-Ion Solar Battery 48VPylon UP5000 4.8kWh Li-Ion Solar Battery 48VPart No: PYLON-UP5000 Storage Systems - Li-ion Battery Pack The UP5000 is a 48V, 4.8kWh lithium ion battery with incredible features to provide competitivePower Forum Renewable Energy Store | By Powerforum.co.zaPylon US3000D 3.5kWh Li-Ion Solar Battery (excl. brackets)Pylon US3000D 3.5kWh Li-Ion Solar Battery (excl. brackets)Part No: PYLON-US3000D Storage Systems - Li-ion Battery Pack The US3000D is a 48V low voltage HESS solar battery system provided by Pylontech,Power Forum Renewable Energy Store | By Powerforum.co.zaPylon US5000D 4.8kWh Li-Ion Solar Battery 48VPylontech US5000 4.8kWh Li-Ion Solar Battery 48V Part No: PYLON-US5000 | Storage Systems - Li-ion Battery Pack The US5000 is Pylontech's advanced 48V, 4.8kWh lithium iron phosphate (LiFePO4) battery,We Will be adding more products and components etc to the store soon. Thanks for your support the sales of these products keeps the forums wheels turning.

Hello Everyone This special is Valid on Promotion again Your Support is appreciated and keeps our wheels turning.
