MarcB2007

Pictures from MPPT2

Hi coulomb, thanks for your work! Yesterday was a sunny day in Germany. I attached my logs from my „old“ SMW using Georg594 shadow managing firmware. My MPPT1 consist of 7x410W with direction SW, my MPPT2 consist of 6x300W with direction S.

Same for me. I have one „old“ EASUN SMW 8KW and use the shadow management firmware. Just bought a second „new“ EASUN SMW with the new chip. It would be great to get and test the shadow management firmware on this inverter too!

No, it is a different cable! It is RJ45 to DB9. I‘m not sure if the pinout is correct, but it should work RJ45 to DB9. Than you need DB9 to USB as well, for example DB9 to USB.

@Tinfontastic Normally the cable RJ45-DB9 should be included with your inverter.

@Tinfontastic The Synapse 5K Inverter looks like a Axpert clone. A direct USB connection to the pc is not working. You need a cable with RJ45 (inverter right LAN-Port) to DB9 (RS232) and a cable DB9 to USB (RS232), for example this one: DB9_to_USB

Perfekt! It‘s a really great program!

So according to the picture you use RS485 to communicate with your PC. I use console port between Pylon and PC. With console port my ten batteries are working. I have this cable in use: US3000C-Port-Cable

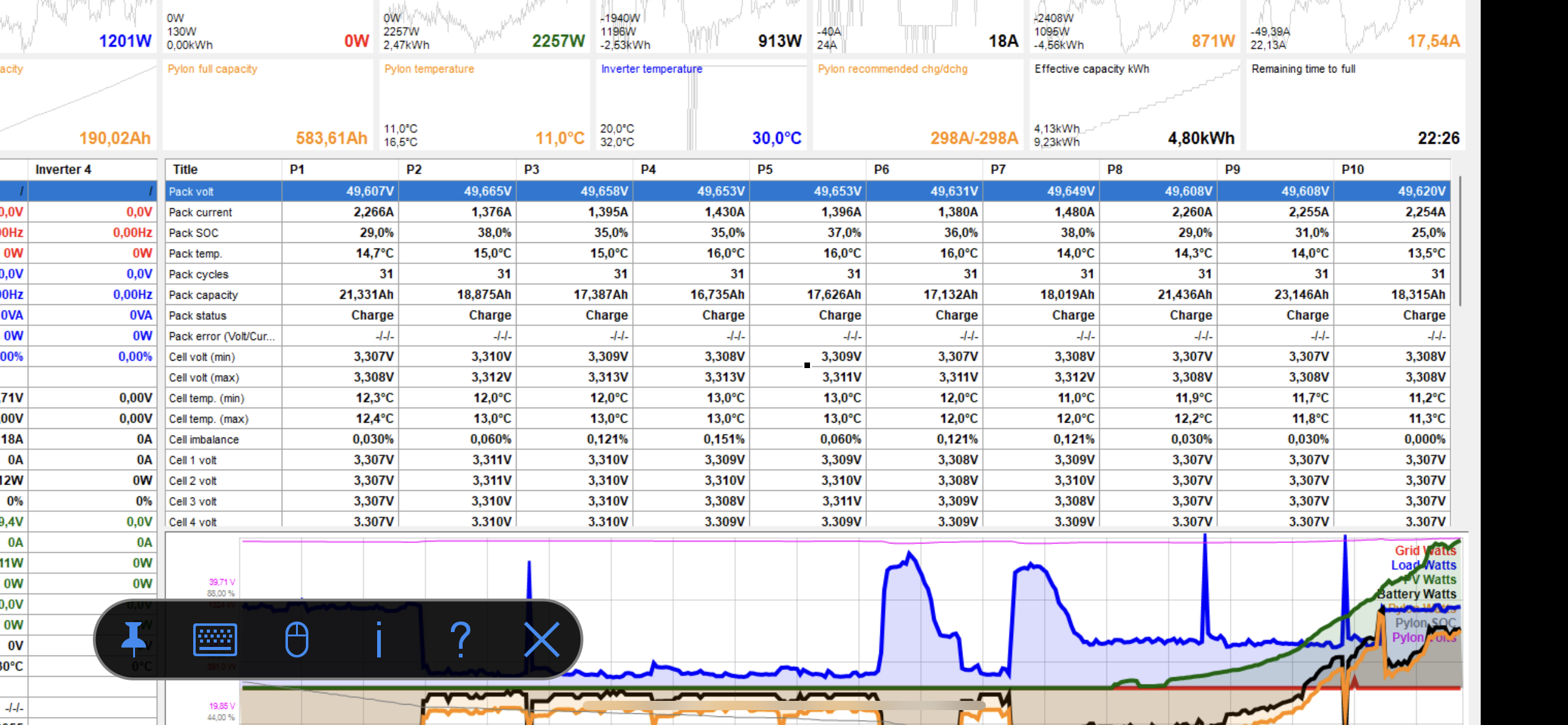

Well, I have 10 Pylontech running (6x US2000, 4x 3000C). They are all shown in MultiSIBControl! US3000C is working as Master. (US3000C - 6x US2000 - 3x US3000C) If you use C-Modell you need a different cable for RS232 between Pylon and PC as well as a different cable RS485 between Pylon and Inverter.

Hi yani, i have one 4048MSD monitored by ICC, one EASUN SMK (~Axpert King) monitored by solpiplog and one PCM60X battery charger monitored by a small tool. Is it possible to monitor the PCM60X with your program as well? It would be great to combine my 3 systems and monitor/control it by one software.
