Christoffel

Problem solved! Still the display not right according to me. But. The inverter is set to SBU. When i switch on my pool pump the inverter goes up to 1 400 watt. So the inverter only uses enough solar to run the load.

Will ask my wife for photos of those settings. When she gets home

What is bending my small mind is the pv watts. If you take the amps multyply with volts the watts doesnt make sense.

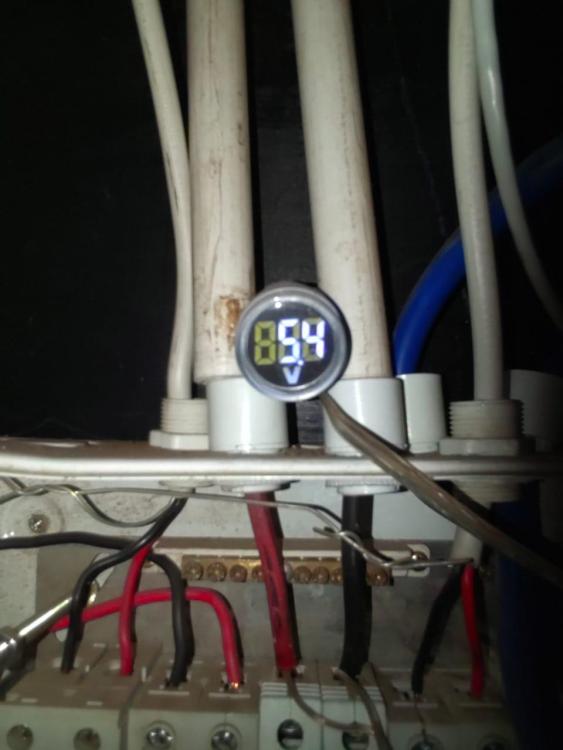

The twinflex is for a seperate volt meter.

These fuses are between solar and inverter. Isnt that the problem?

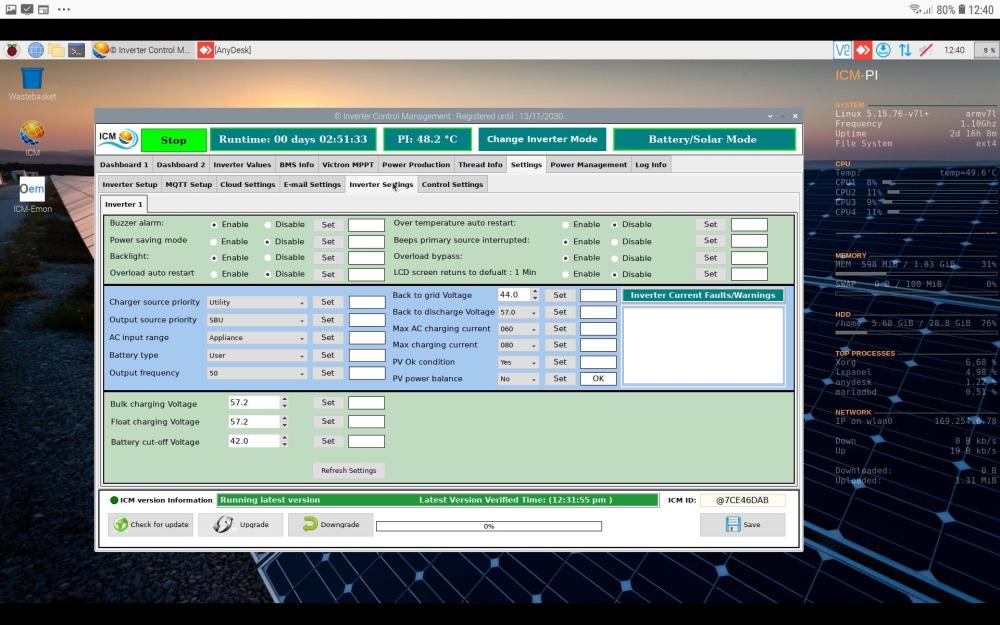

What settings do yo need. There are more than 30

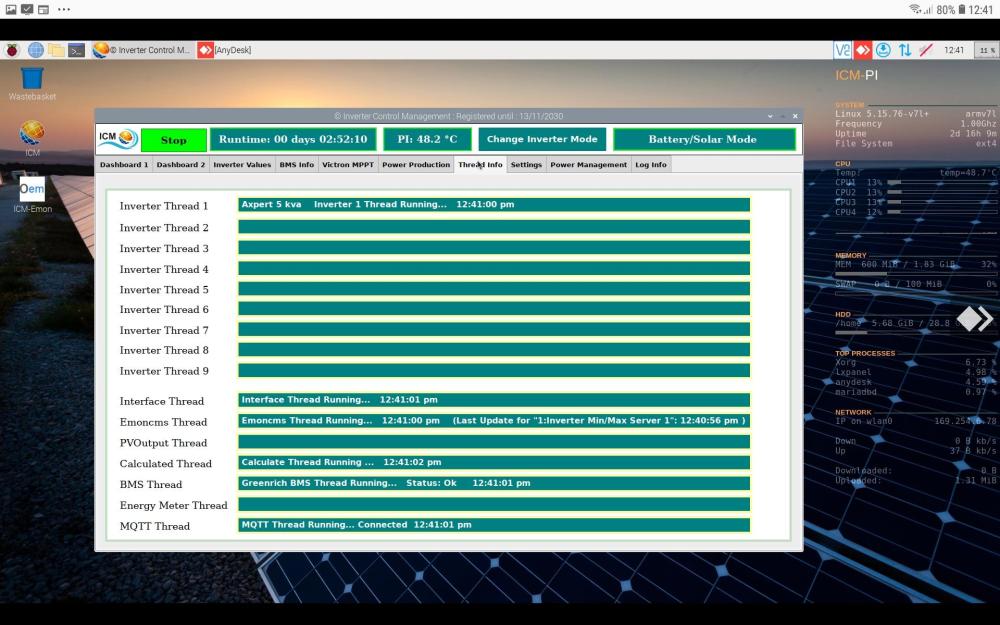

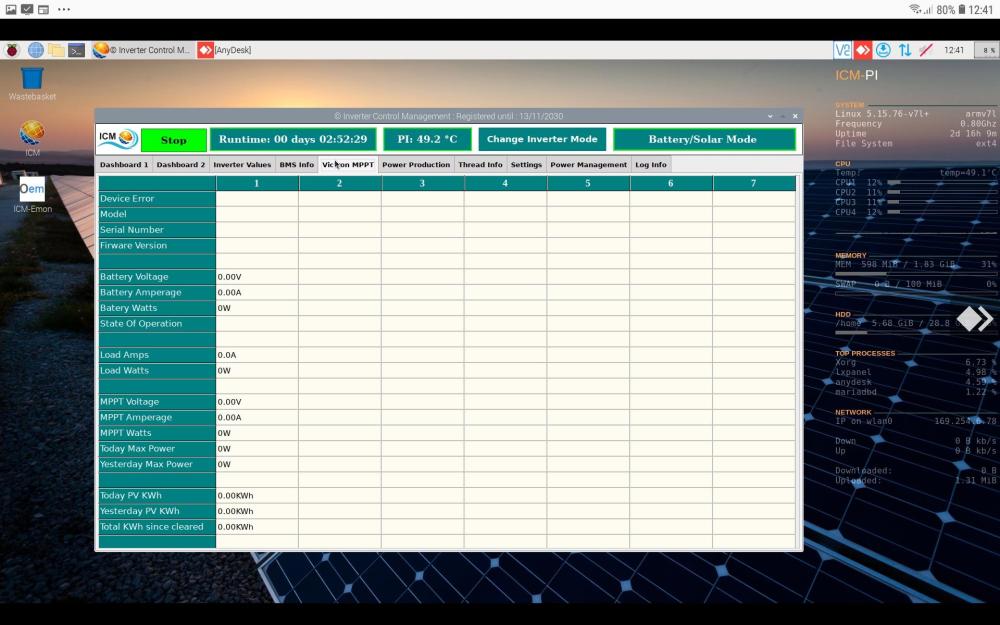

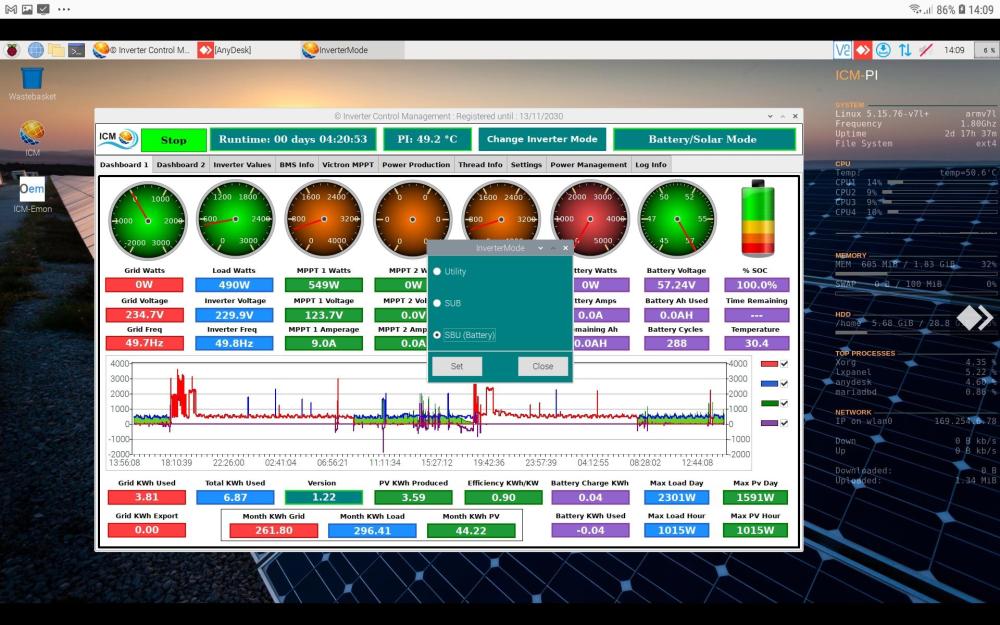

I just found something not right. On anydesk i have SUB and SBU. Doesnt matter which 1 i choose. The raspberrypi jusr says BATTERY/SOLAR. Doesnt swop them around

If you have anydesk ill gladly share the login info. So you can go check yourself. 🤔

I can do setting 1 from the anydesk app on my phone. It is on SUB

The inverter is back to solar after awhile

I did. Switch on the aircon. It switched to util. And doesnt want to go to solar. Even tho its shows.

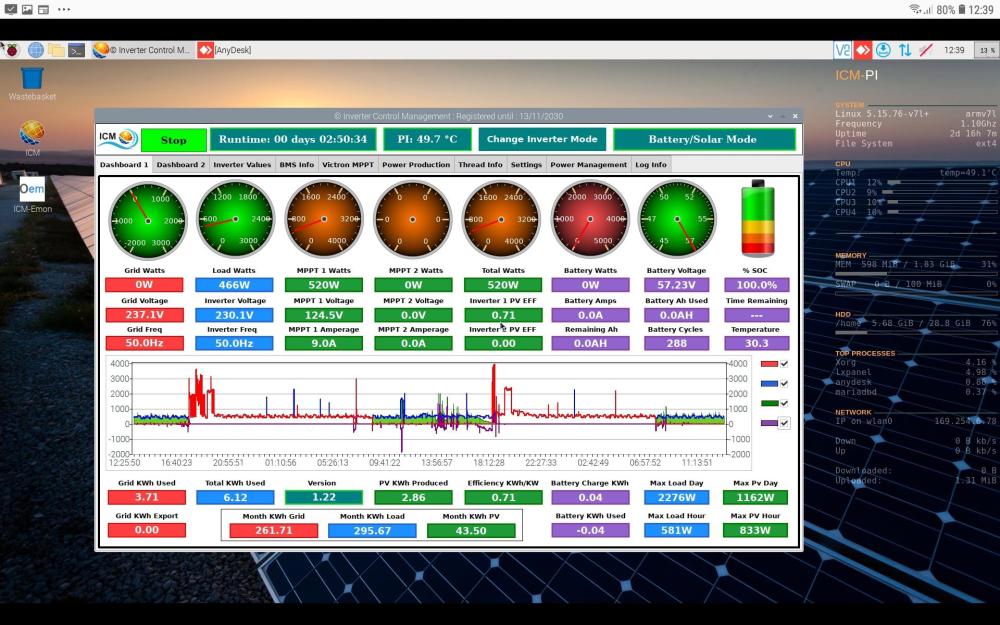

The above screenshot was only 2 panels in series. I have 3 in series now. Looks better (Amps and volts). But watts stil not right. . . .

I get more watts with a string of just 2 panels in series than with 4 panels also connected 2X2 is series. Then parallel to the inverter. Need advice! They are connected with a 4 to 1 cable. With no combiner box.

As I understand what I was trying to do with the two different watt solar panels. Can be explained like for instance you take a 9 volt battery and connect it with a 12 volt battery just to get mote power. You can't do it. As for 1 of the batteries wil be damaged. Thats how I understand it. Anycase the 2 off 650 watt solar pannels is sufficient to power my house on a synny day. . . And in deu time I will be adding more 650w solar pannels. Need 8 of them.

Thank you for everybody's advice. I have decided to use only the 2 X 650w pannels on my inverter. Appreciated

Thanks for the assistance 🙂.

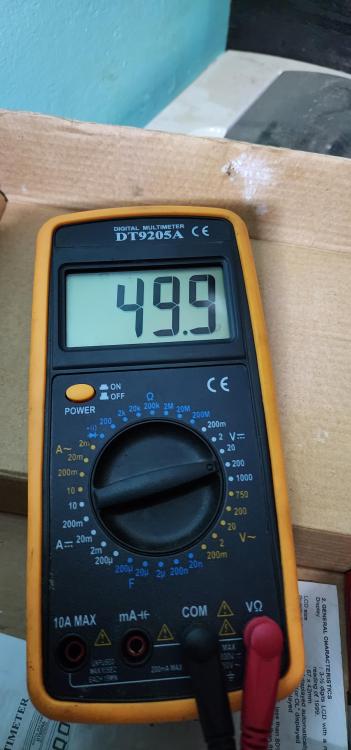

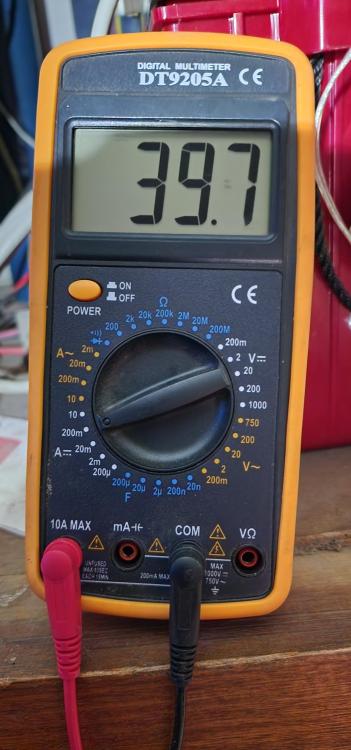

11.70 amps. Still inverter doesnt see them

My inverter dosnt recognize the solar
