NewbyKodak

Thanks, I update my settings and set the period to 1 day. There is no setting for the start time. I waited a day and eventually manually kicked off the equalization. Does the count down to the next run start from the last equalization run? And lastly, the voltage dropped back down to the float voltage within about 15 minutes after 90min @ 56.4V, is this considered normal?

Hi Jesse, The OG 5.48 does not come with wifi as far as I know, only Bluetooth. This means it is only usable on an Android device, no IOS support using WatchPower. I have gone with a raspberry pi/solar assistant solution for monitoring. Regards, NK

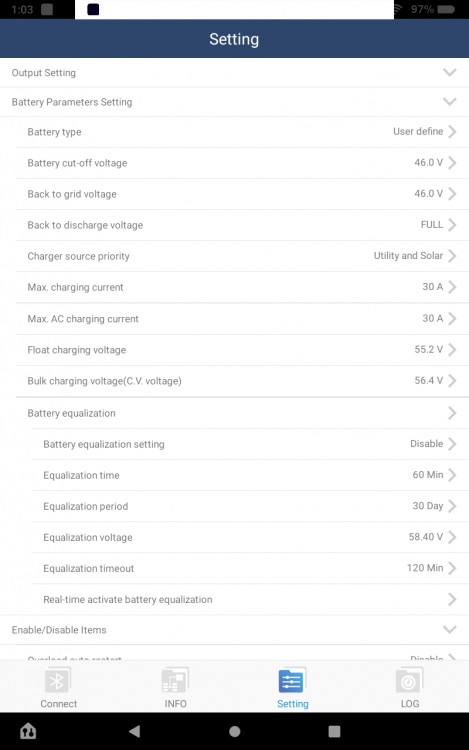

Thanks Coulomb, That is very helpful. I don't seem to have a "Bulk charging time" setting. Looks like it is also possible to accomplish the same using the equalization function. Would the following work? Battery Equalization Equalization : Enable Time : 90 Period : 5 days Voltage : 56.4V Timeout : 120 min Regards,

Hi, I have a newly installed Kodak OG 5.48 inverter and 4x12V100AH Vision 6FM100Z-X batteries in series. Firmware Main CPU version: 47.00 I have been struggling to charge the batteries past the default float voltage. The default AGM battery type settings (float = 54, Bulk=56.4V) have not been able to give a full charge and the battery voltage quickly drops during load-shedding to 50V and then slowly starts tapering. I expect that this will happen from the float voltage without the big initial drop. I have now upped the float to 55.2 and the charging current to 30A (initial 10A). Am I missing the obvious? Any advice would be appreciated.
