Rhys Gottwald

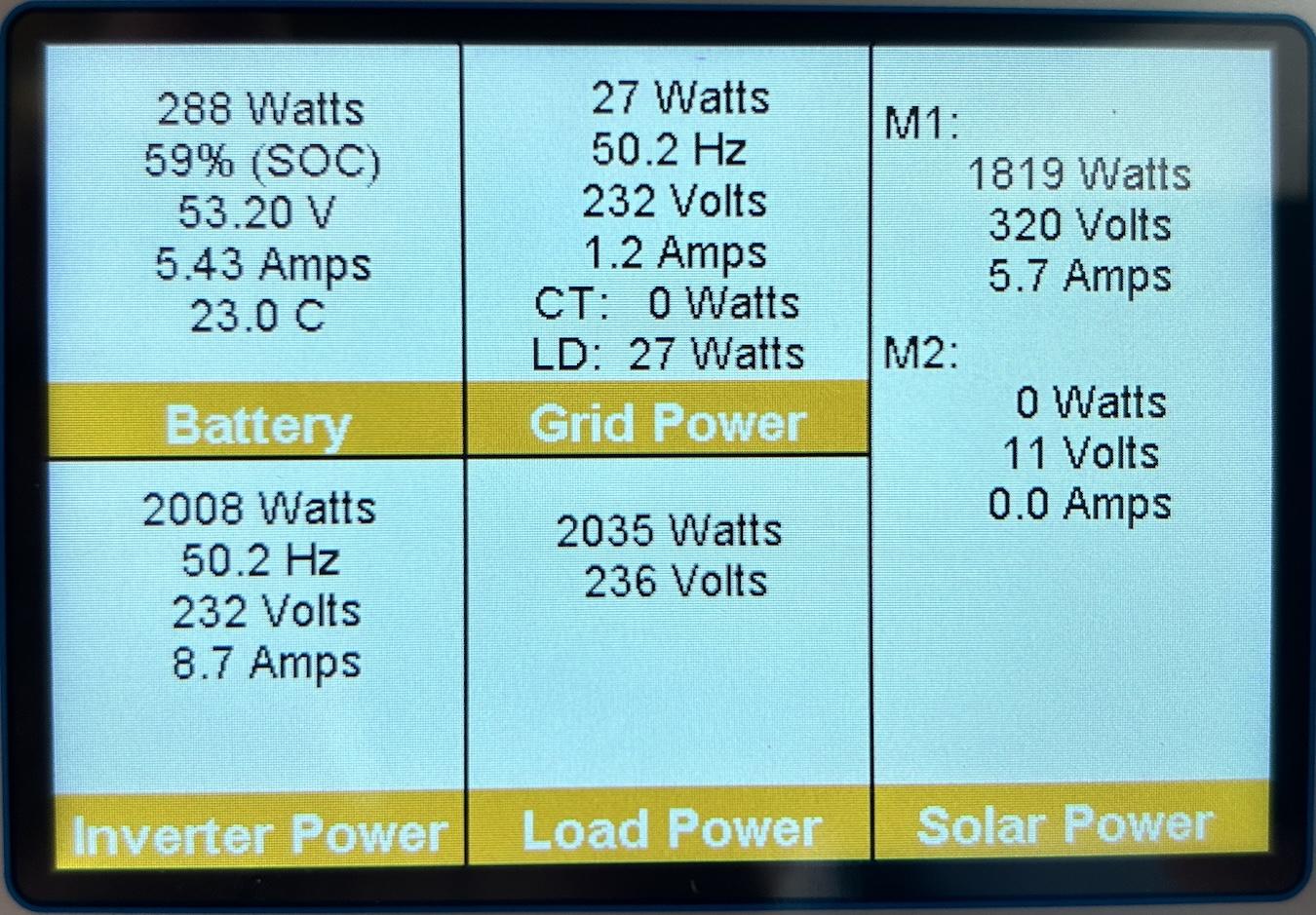

@Scorp007 I am not sure what you would like to see but I can tell how much is being pulled from the grid and how much is coming from the PV/battery at any time. I am not sure if you are expecting more, or something else.

Hi Talia, I hope this helps

Thanx Tali, my pv array size is 3.4kw. Where would I, or how would I get my load profile?

Hi guys, I have just had solar installed and I would just like to confirm that the config done by the installer is right. The equipment is a Synsunk 5kva inverter and a Freedom Won eTower 5Kva battery. Here is an image of the settings the installer put in, I am not sure if they are the right or not, that is why I am asking. Keep in mind I dont want to do anything that would void the warranty. Are there any other settings I should consider? Secondly, we agreed not use grid charge so it was not set up, what would the charging amp be for grid charge if I do put it on. We don't need grid charge now, but I am pretty sure that on the 30/05 we will. Thank you in advance.

Hi all, I have a Mecer inverter, bought about 7 years ago, and a new battery, a month old. The battery is working fine and rarely drops below 66% during load shedding. However, at 2am Friday morning, the was no load shedding at the time, the inverter switched over to battery feed and for 5 min and then it switched back to mains feed. But then after about 30 seconds it switched back to battery feed. This cycle repeated until switched it off. I was not an issue with the electricity supply because no other appliances were affected. Next morning, at a decent hour, I unplugged everything checked the cables, plugged it back in and it ran fine until 3pm then started switching again. It is now running in offline mode. Every thing else works perfectly in the inverter, I just cannot having it running inline. Any thoughts on why this is happening.
