Can you please tell me what setting I need to change?

I confirmed the CT coil is there and working correctly

So some very interesting results. After making the battery changes all of a sudden the PV is much higher. I got to around 4.3kW at 10:30 Do I call it a day or is there more PV power to be had ?

How did you solve this ?

I have adjusted the charge amps. I will take a photo of the peak solar production tomorrow.

Yes, the cables have been properly routed. Will adjust the charge amps and try again

There in so CT coil on the system

This is what I also thought, the power seems low for the number of panels. There are two strings of 6 panels. They produce very close to the same power. Will take a pic of the panel input tomorrow

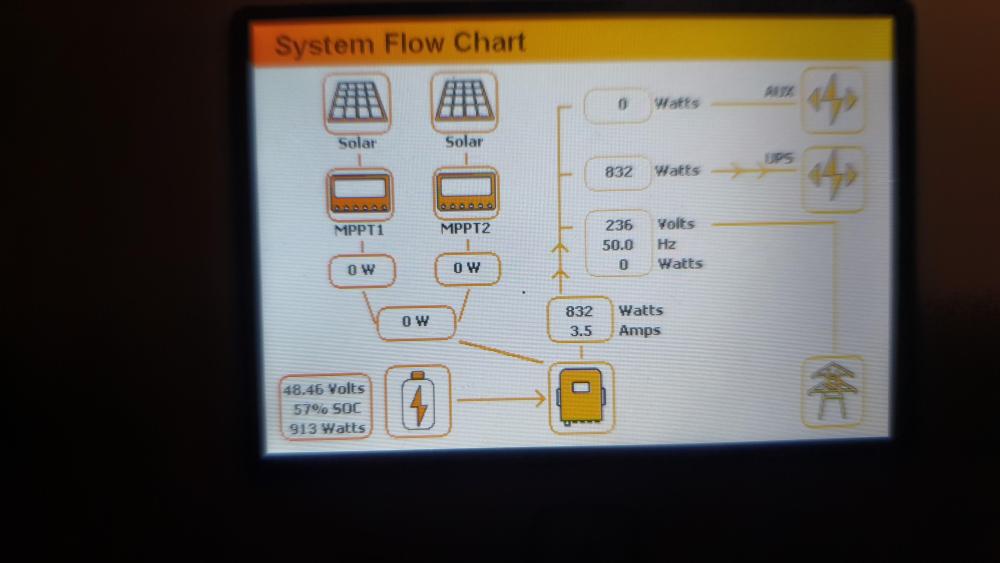

Sunsynk PV Power Good morning, I have the following system installed - 5.5kVA Sunsynk Inverter - 12 x 450W JA solar panels, two strings of 6 - Hubble 5.5kWh battery - Solar panels installed on roof facing north without any obstructions The readings in the photo is a test I conducted to confirm the power being generated by the PV. The load was 3.79kW, the PV produced 2.71kW and the remaining 1.1kW was drawn from the grid (Taken at peak solar production time 12:00). My question is for the max theoretical solar power delivery of 5400W is the current value of 2.7kW acceptable? I have been performing a couple of tests and the max PV power delivery I could achieve was 3.4kW But I have no idea if this is good or bad, some guidance will be greatly appreciated.
