Inverter Charger Easun Isolar SPS 3KW - defect - no PV detected


sethmad

Recommended Posts

Greetings to all,

I have a defective Inverter Charger Easun Isolar SPS 3KW, it does not detect the PV panels voltage. I opened the case and found 2 defective mosfets, (IRFB3306PBF MOSFET, N, 60V, TO-220AB).

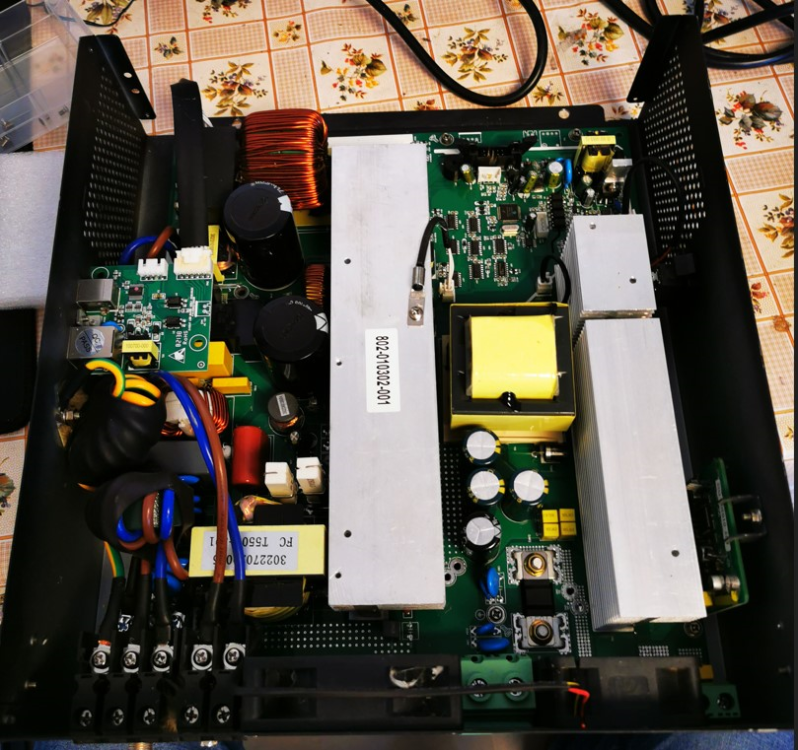

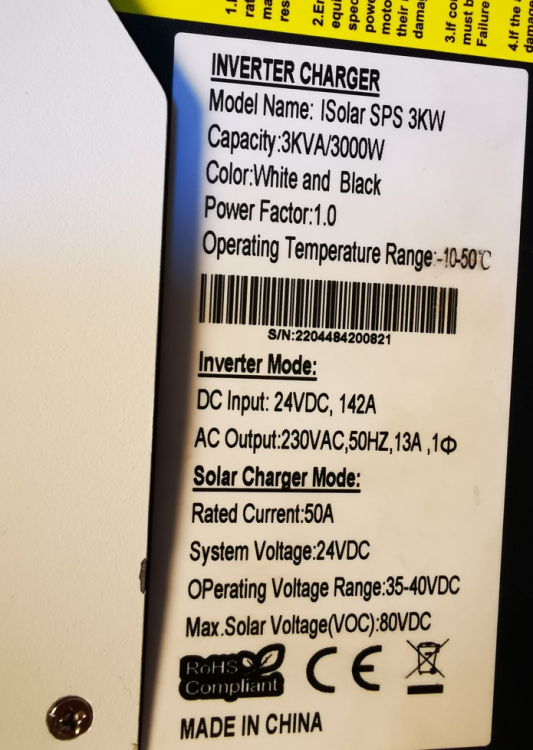

Could you please help me with a schematic for the PWM charger? I found one Axpert 3kva schematic but it is missing exactly this PWM charger part. It has 6 mosfets IRFB3306, but only 2 seem to be defective. I attach also some photos for reference.

image.thumb.png.c67f3e478dd1d2feaa2cd62f14800594.pngimage.thumb.png.5baf638ff7fc12e6582cdff83507b887.pngimage.thumb.png.532a3b0e754ef47c6c58624fd8d7639c.png
