10 hours ago, Leonard said:

I did plan to split AC and DC within the channels, hence the reason for buying the double trunking

Nothing wrong with that.

10 hours ago, Leonard said:

essentially utilizing studs to terminate cable points

Not sure what you mean, but using copper busbars to as a distribution point is common and allowed.

Now you just need an inverter or two... 😛



Its alive..... and I managed to keep all of the smoke inside... Its good if the smoke does not come out right ?

So...

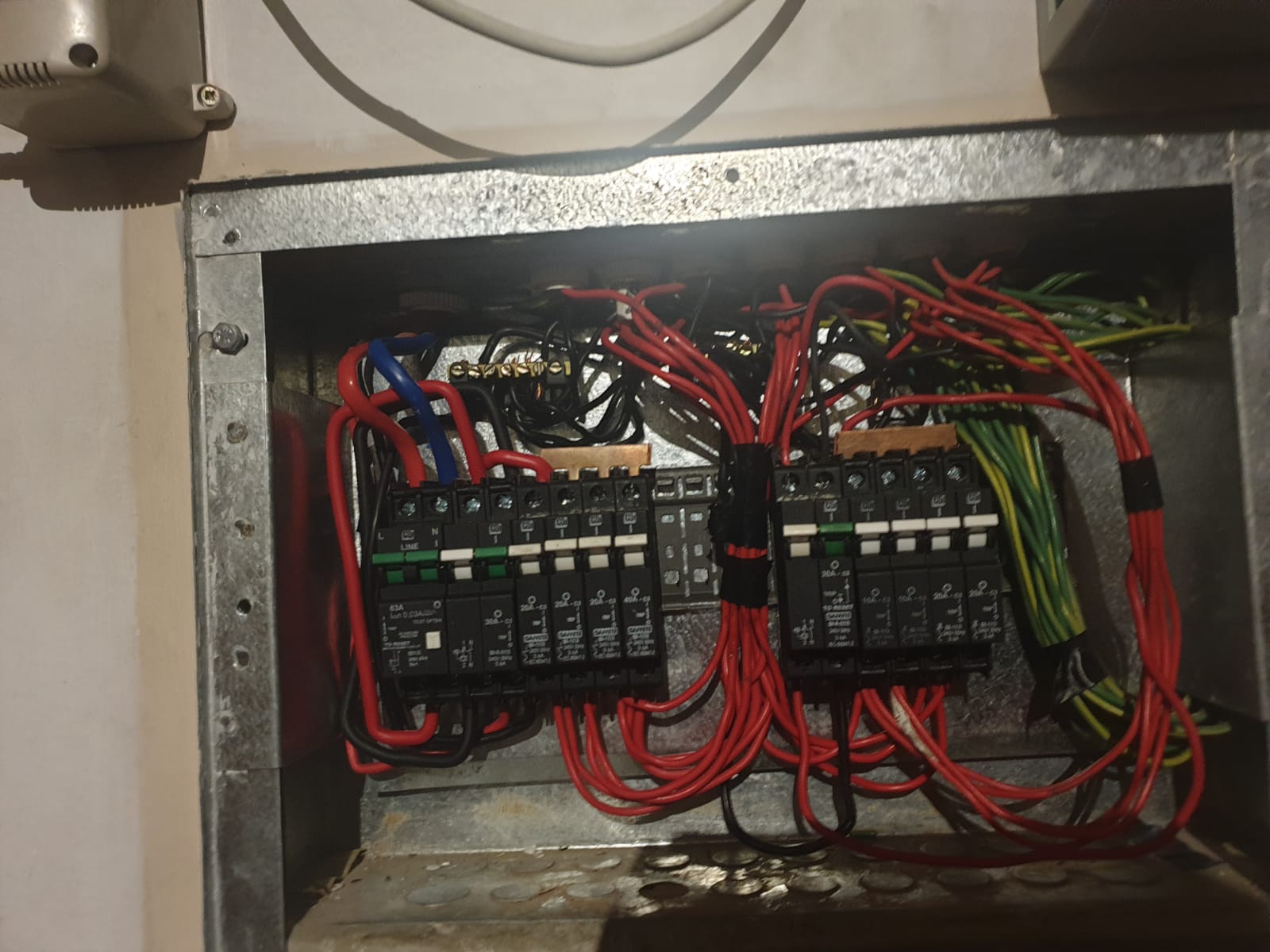

Thanks to the advice received early on, my 3 DB boards.

This is what my final inverter panel board turned out like

DC Distribution box

Final Install before I start closing up and labeling

Some prelim stats, note that the Pylontech cable I am using is being a bitch, but Riaan is assisting here, most likely on monday.

Thanks for the read guys, and thank you plonkster, krokedil and everyone that assisted in advice, you folks rock...

To do.
Covers, labels, close all
Balance/distribute load a bit better between solar and non solar
upgrade wiring feeding cottage solar (we dont talk about this)
And then - "luxury load dropout" using APN and sonof's...

But right now, I am so poor that when I go walking near the lake, the ducks throw bread at me.... So more has to wait...

Thanks for the read
