Salie

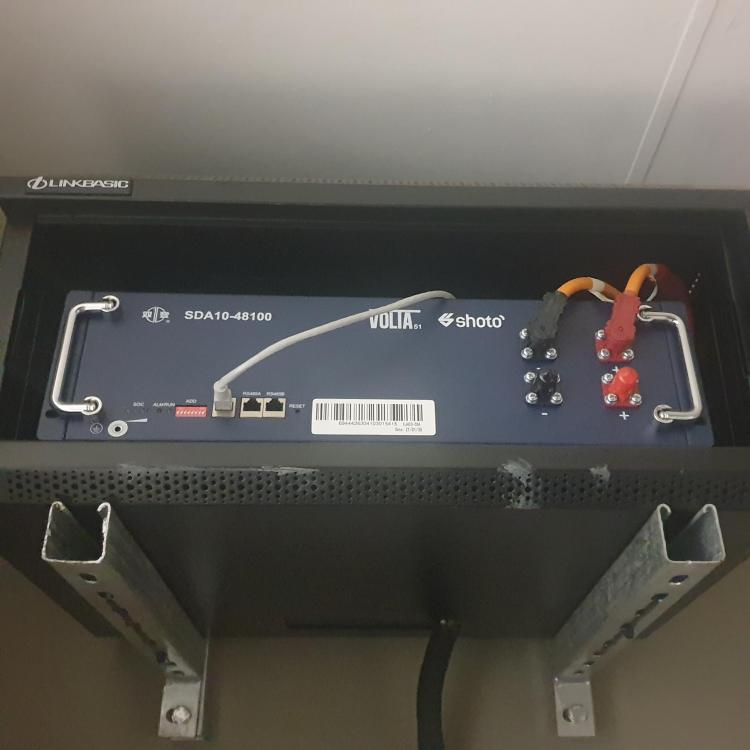

Think it is the 5.1. See pic

Hi. I can confirm the battery worked and is communicating. Even though an alarm sounds from the inverter when it is just connected and changed to the lithium setting, it eventually stops and starts communicating. @AchmatYou were correct the CT was connected the wrong way. Once it was turned around I could see the full load. So I am sorted now. Thanks for the advice.

For those responding thanks a lot. FYI- The installer is convinced that the shoto battery is compatible. They replacing the existing battery today. I will inform you if it works. Will also follow up why I am not picking up the house full load

Hi. The kettle is not on the backup port. Should the CT values be negative?

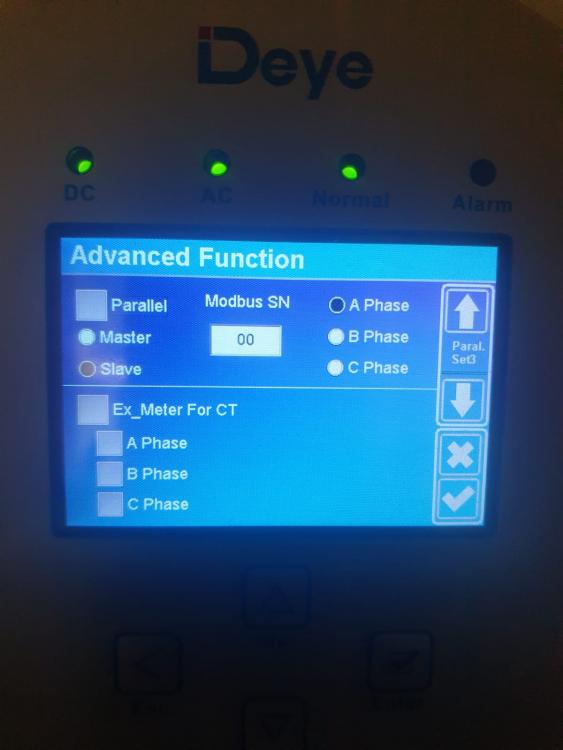

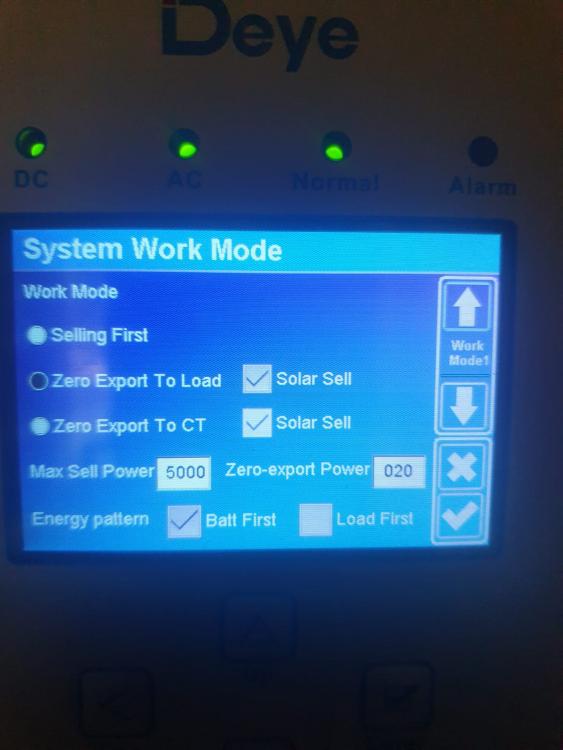

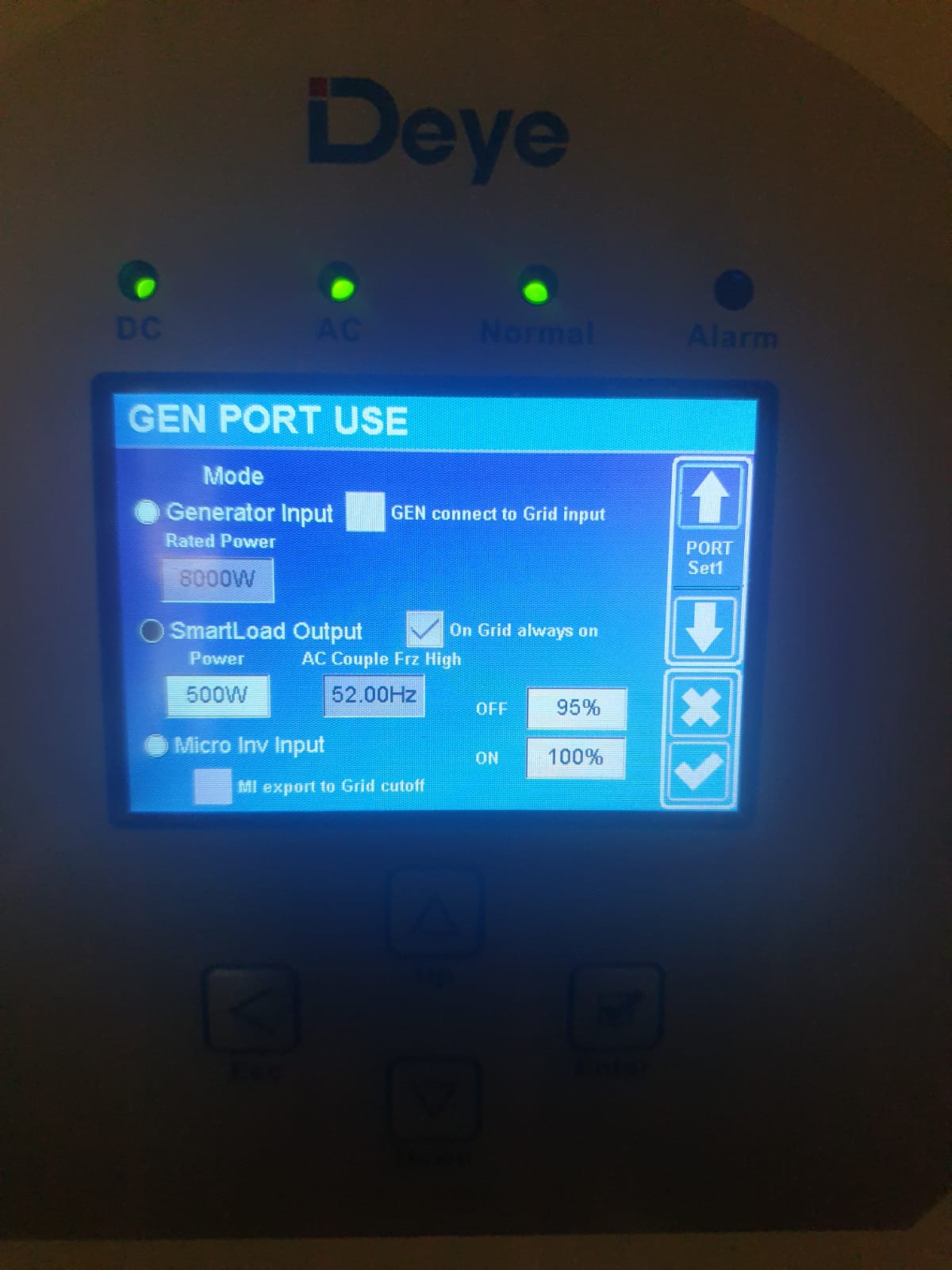

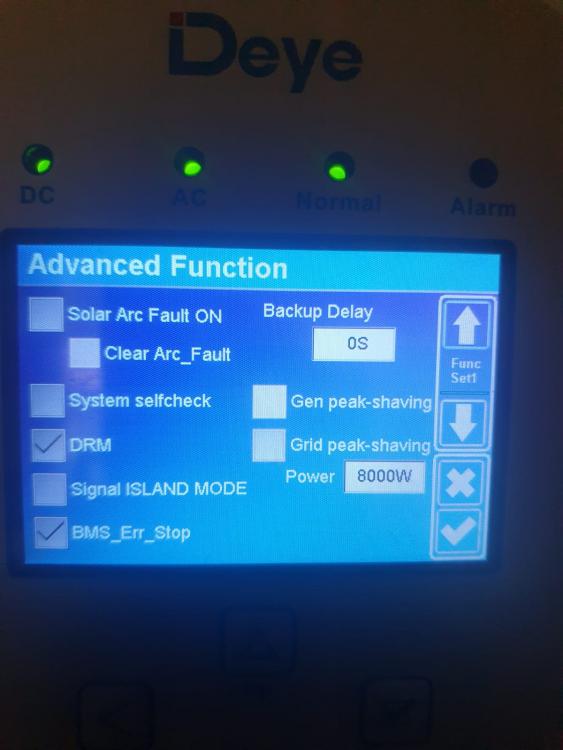

Unfortunately the Deye's interface is quite different and I was not able to get the CT Ratio. Able to locate DRM. Which one is the CT Ratio and Priority load?

Thanks Jason. Was worried that I could not track my peaks in the house

Thank you for response. Done as you suggested. The CT definitely increased when I switched the kettle on. Jumped from 111W to 1014W. My LD stayed constant and did not change much through this process. Same goes for my geyser when it switches on. Is this normal? I really would like to see the total power the house is using. Is there somewhere else I can see this or does the electrician have to change something with the setup?

My installer completed my installation over the weekend. Tomorrow would be the last day he is coming and I raised some questions with him but I am not totally sure about the setup. 1)He plugged the battery comms cable on CAN and battery setting on "Use Batt %" and not lithium(Alarm goes off when trying to change to lithium-tried changing to Rs485A with no luck). Is this correct? I saw on another post that a user did in actual fact connect the deye to the shoto battery. 2) My usage shown on the touch screen only shows usage on the backup load and not overall house usage. Is this what it suppose to do? What is potentially wrong here as I see when the oven, stove or geyser is switched on nothing happens with the usage on the touch screen (Only the backup load changes if for example i plug a iron in on one of those plugs) Any assistance would be appreciated as I am completely a newby. Is it not possible to view the total house usage?

Hi Ratoka. Have a similar setup to yours. My installer just completed. 1)He plugged the battery comms cable on CAN and battery setting on "Use Batt %" and not lithium(Alarm goes off when trying to change to lithium-tried changing to Rs485A with no luck). Is this correct? 2) My usage shown on the touch screen only shows usage on the backup load and not overall house usage. What is potentially wrong here as I see when the oven, stove or geyser is switched on nothing happens with the usage. Same issue in app. Any assistance would be appreciated.
