surfgate started following CFE5100 & 5kw Deye inverter issues - battery error at 100% and Deye 5KW & Wifi connectivity
-
I use Solar Assistant to monitor my 5KW DEYE Inverter, CFE5100S 5kw battery & 5x450w panels. Solar Assistant works fine for monitoring but I am having some issues with the Inverter/battery setup and am busy lining up assistance from CFE and DEYE. In order to facilitate this assistance I need to ensure that both battery and inverter are directly accessible via the internet for troubleshooting and/or firmware updating etc. I appear to be winning with what app to use and how I will get the CFE batteries connected. I am not yet winning on the DEYE front. Can anyone give me a steer as to what app/method is best for direct connection to the DEYE inverter? Any guidance greatly appreciated. S-gate
-
Thanks @JKKM - I will go through that thread in detail.
-
Thanks @JayMardern You 100% correct - the battery power & charging activity dropped way down. No errors yet - but I know its coming
-

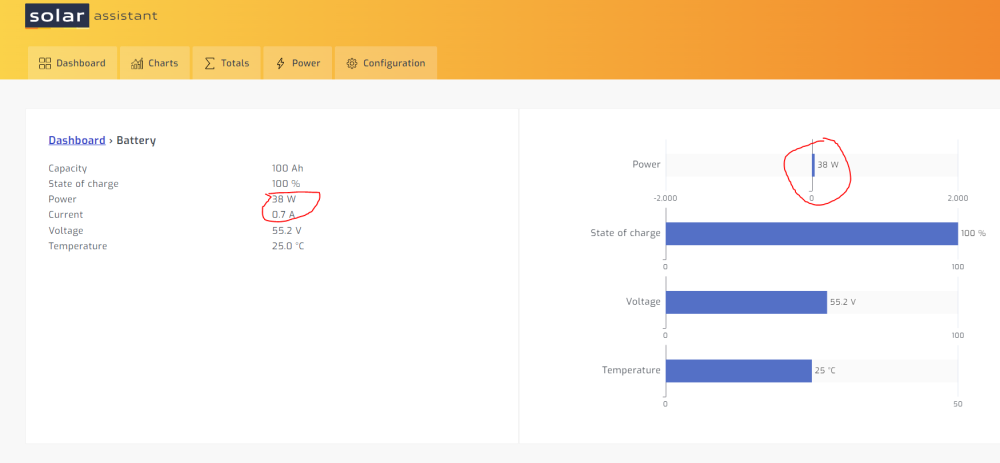

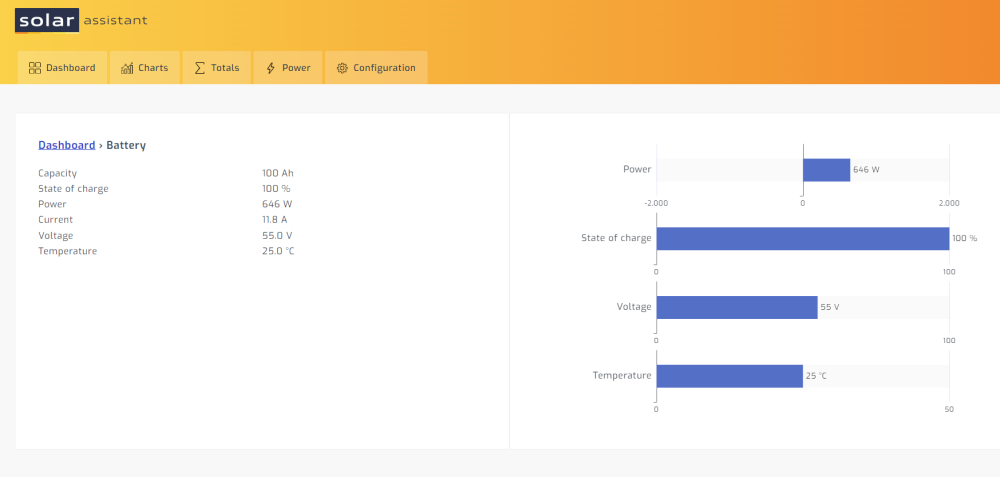

An update on the above - I am hoping this info helps when one of the experts on the forum sees it: - The battery has now hit 100% and has not reset (yet) or gone into an error or showing F56 error on the inverter (yet) Question: When the battery hits 100% SOC, should the power and Current indicator not go to zero?
-

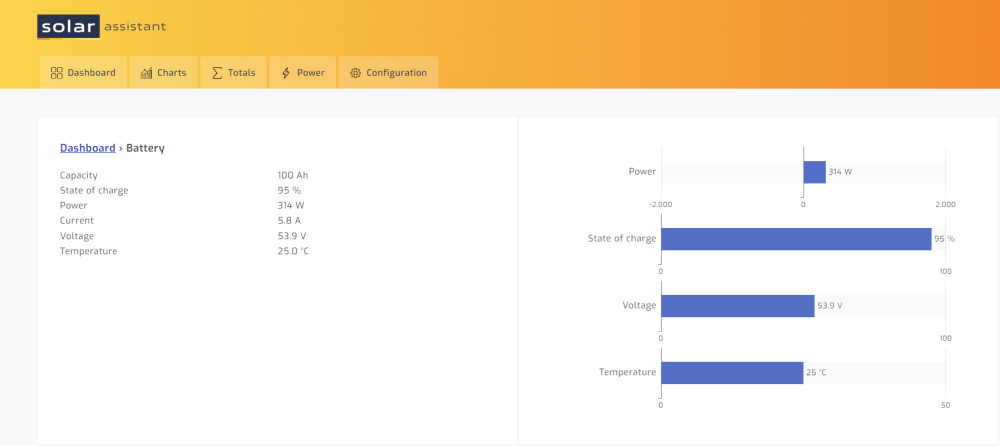

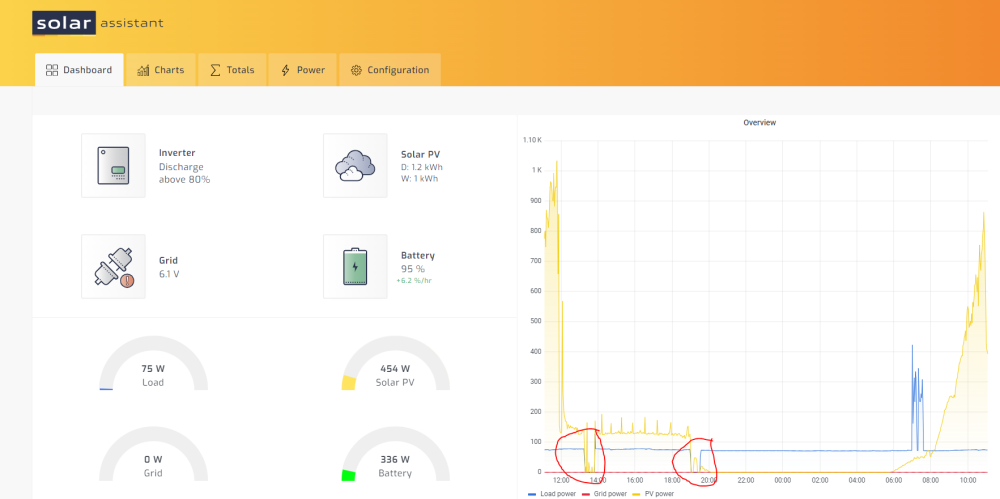

Hi @Buyeye - thanks for replying. I use Solar Assistant (see screenshot below) for remote monitoring and I understand it shows less detail than the actual battery BMS would. I tried (for hours) but was never able to get the CFE App to work. The info below is pretty sparse. I will have to try again and get the CFE app working - found a thread on it this morning. Screen below shows 2 situations where the battery went into error state and turned itself and inverter off.
-
Hi, After reviewing as many of the CFE5100 & 5kw Deye posts as I could find, I was unable to find anyone with the same issue as I am having. My completely off grid 5kw Deye, 2000W of panels & CFE5100 battery both work very well until the battery gets to 100%. Then, randomly, the battery will go into an error state and shut down - and inverter will then also shut off. If I am onsite, then I will reset the battery and introduce some additional load to drop the battery below 100% and then all works fine - until we get back to 100% battery. This battery error at 100% does not happen every time - it appears completely random but probably 75% of the time - I cannot discern any pattern. If I am not onsite, then the system will usually reboot itself after a while. I can only assume that the battery (and/or inverter?) are somehow not getting rid of the excess incoming solar. Anyone else have a similar setup to mine and seen this issue? Or managed to solve it? Any guidance hugely appreciated. Cheers S-gate
-
Thanks for the advice and guidance @Scorp007 and @iiznh - much appreciated. The project is proceeding ok so far - but will hopefully be finalised this weekend. And yes @iiznh I forgot to specify, it is def a 12V battery (12V LiFePo4 100AH) - so hopefully no magic smoke from this project in the near future.
-
I know this is probably a complete newbie (and stupid) question, but after a few days of searching and trying to get some info on this, I am none the wiser. I am trying to setup a small (12V 2a) CCTV camera at an off grid property and am still finding my way around the whole off grid power world. I have a LiFePo4 100AH battery and initially had it connected to a small 80W solar panel and the camera plugged into a 3000W inverter using the CCTV camera's native 220V to 12V adapter. But, it seems to be drawing way more power than needed and surely this is a inefficient use of power - can I not connect the camera directly to the battery (maybe with a fuse & switch)? Or am I heading for a disaster here. Any advice or a steer in the right direction would be hugely appreciated.
-
Hi, Does anyone know what underlying database the SolarPower 1.14 software uses to store the inverter data? It looks like it might be Apache Derby but I have been unable to verify this. And has anyone had any luck/experience with accessing the database and data to do you own reporting and analysis? Cheers S
