jdido87

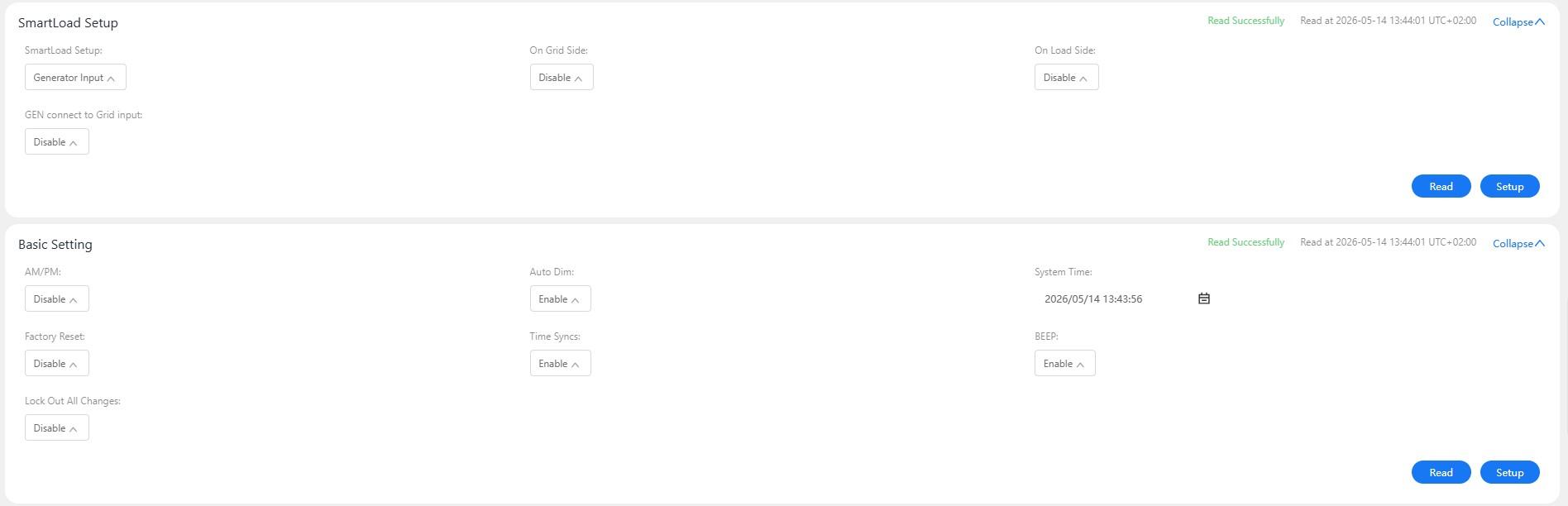

Hi Guys I need some advise on the smart load function of the Deye inverter. I have excess solar pv capacity and would like to direct that to my electic geyser in order to save on gas. The main geyser for the house is gas. I enable the smartload feature however it shows that on 1w is going there. On the image the UPS is the house load and the house in the bottom right corner is the load of the electric geyser when turned it on. Can someone please help me make sense of this image. Why would the geyser load be indicated seperately from the house (UPS) load but also not in the smartload icon. I want to use my electric geyser as my solar array is completely oversized for my day to day needs. I wanted it this way for cloudy days. Ideally I do not want extra smart switch but rather just rely on the inverter to take care of all the switching.

Thanks guys. The issue was resolved. According to the installer the system detected moisture and the batteries shutdown to protect itself. Apparently he had a lot of similar call outs after the storms in Cape Town last week. I installed more vents in my solar room today. Going to get a smart thermometer and humidity sensor that intend to connect to and extractor fan to control the climate a bit better. New to all of this so the learning curve is steep. I tried to control temperatures in the solar room but forget about the humidity.

Thank you very much. I will give this a go when I get home.

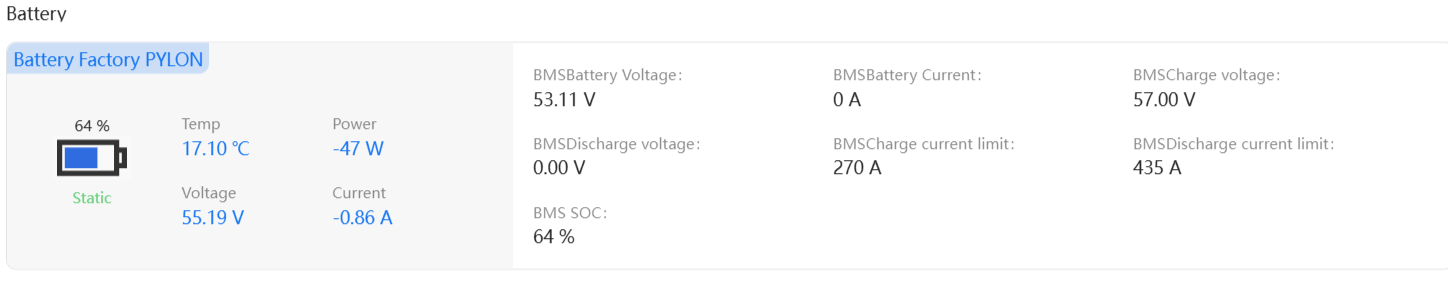

The battery has been on 64% all day. It was on 65% just prior to the solar taking over the house load. The installer updated the firmware as well earlier on but no change. The moment turn on the pool pump the solar generation increases to match the load but no excess solar are going to the batteries. Also, I enabled grid charge and turned off time of use. The batteries aren't charging from the grid either. This worked fine a day ago with the storms.

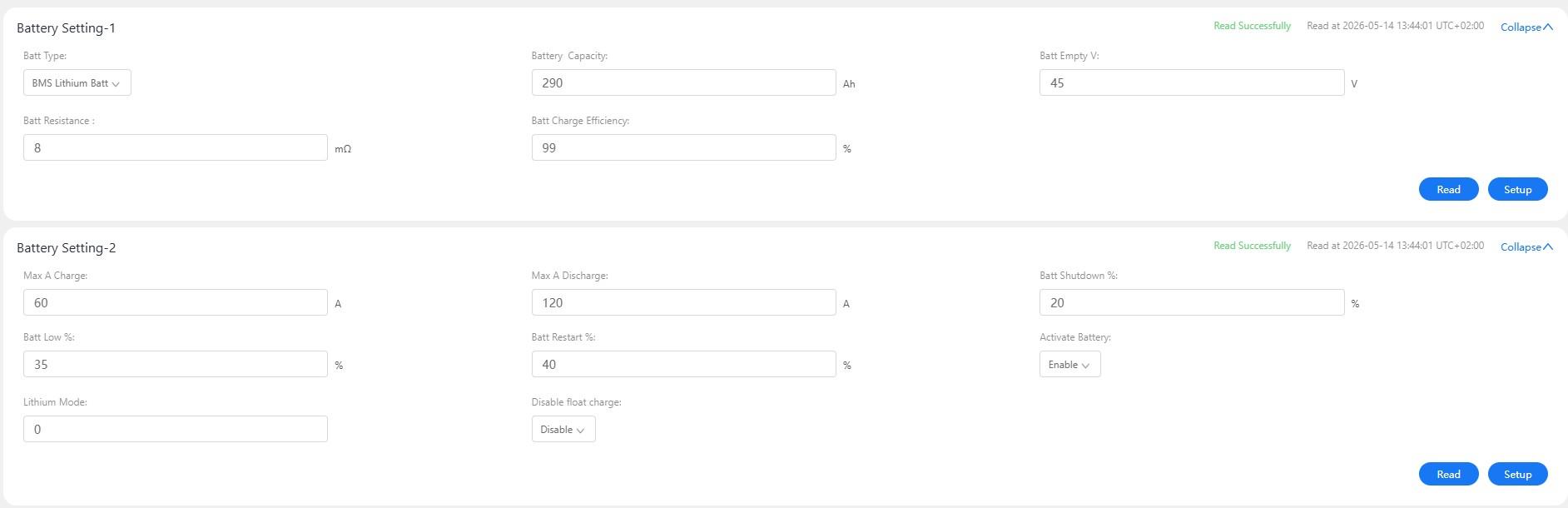

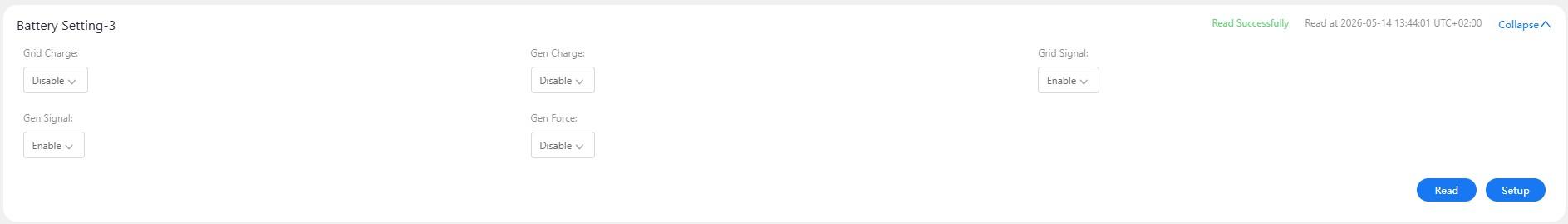

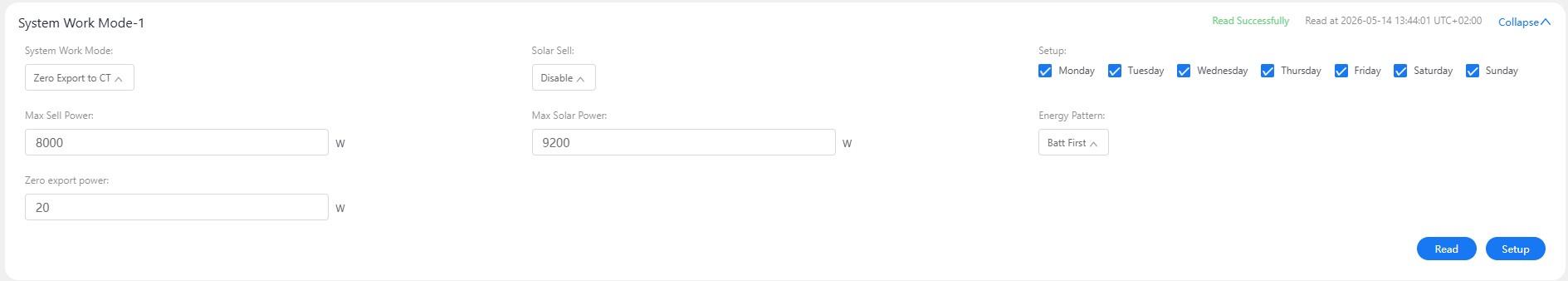

See attached screenshots of the settings. The workmode is set to Batt First.

It seems the inverter is only powering the house load.

Mornings I seem to have an issue. It is a beautifal sunny day in Cape Town but I am only generate 338w. If I turn on a pump then the pv generation spikes. With the storms we had recently I changed the quick settings in the Deye Cloud app to force charge mode so that the batteries could charge from the grid. I have since changed it to self consumption mode as I cannot seem to disable them from the app. I also disable grid charge and enable time of use again. Any idea what can cause the low pv generation? No shadows at all being cast over the panels. I notice that the inverter is not prioritizing charging the batteries.

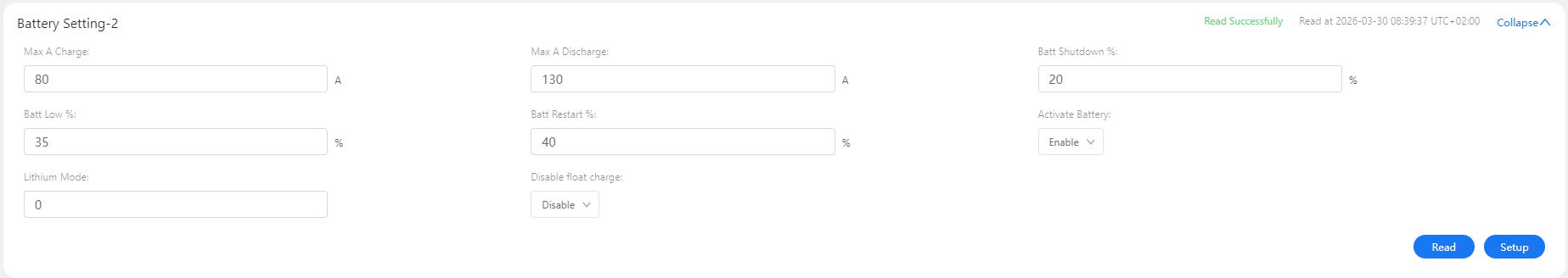

I need some advice. My discharge rate is set at 120amp. Is this too high?

The batteries are usually full by 11 to 12. I am going to supply the electric geyser with the additional solar capacity however I just need to make a few changes to my plumbing that would make it easier to switch between the two geysers. Currently I have to get into the roof to close a ball valve for the electric geyser. I need to create an easier access point for this. I am busy building a second bathroom and the plumbing is up next so I will do it in the next few weeks when I have some time. Can I correct the electric geyser to a sonoff smart switch or is there a specific switch that needs to be used given the power demands of the geyser? I hardly use the grid at all since my system has been installed. There is just a 20w charge from the grid.

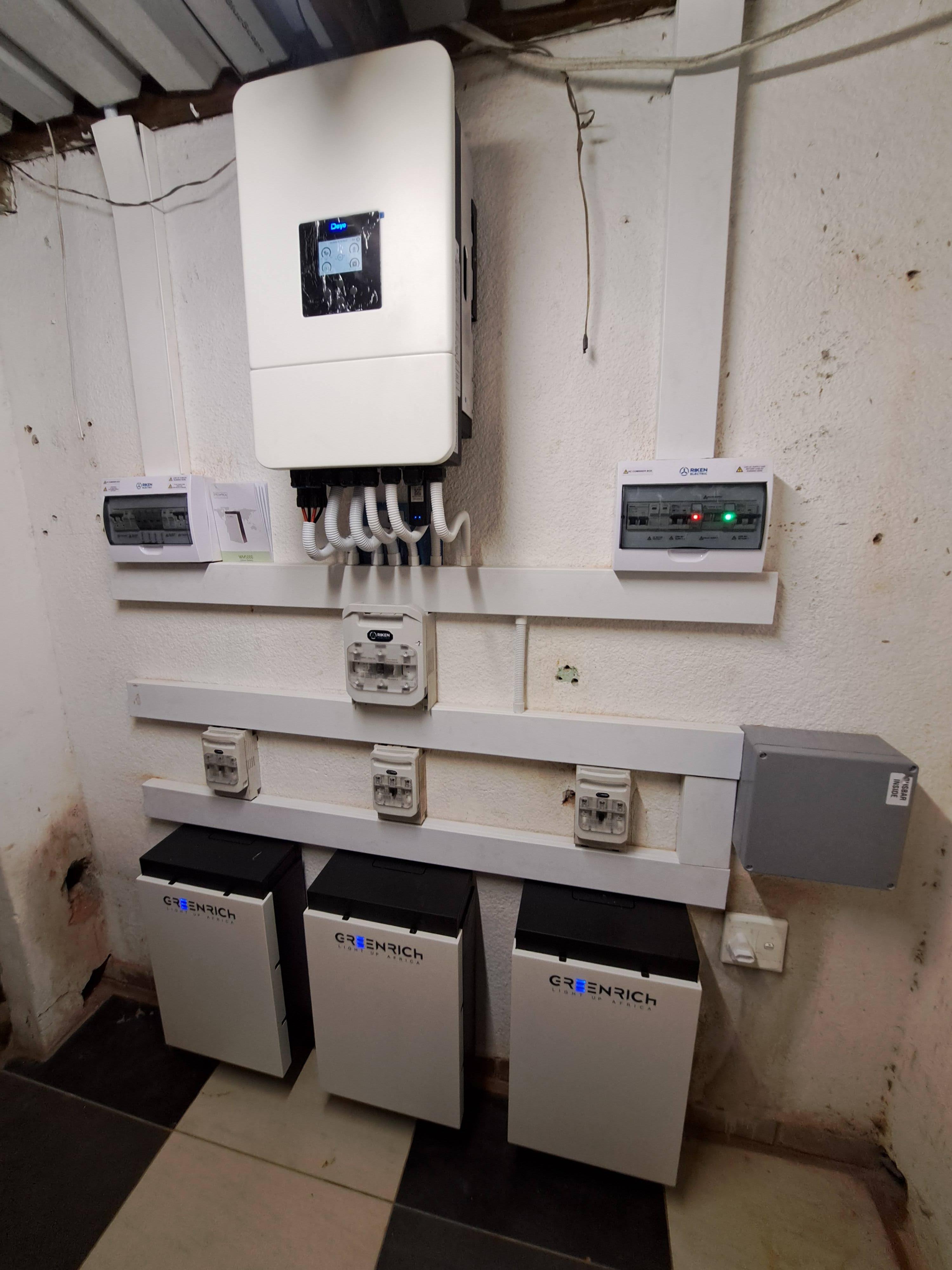

The room has no direct sunlight and stays relatively cool most of the time. I am doing double insulation with a layer of sisalation and isotherm. It worked a charm in my brain room. I just need to sort out the ventilation. Started with the window opening today. I will have to tint that window as that wall is hit by direct sunlight for the most of the day. I am going to mount an extractor fan in the door that can run permanently during the day.

The eave of the house is over that particular section but I am going to insulate it and fit rhinoboard as soon as I am done with some other things in that room. It was my laundry room, poolpump house and toolshed. The washing machines and poolpump was removed. I will be installing a window in one of the walls as well just to control temperatures inside there. The windows has been delivered already and it will be installed over the long weekend

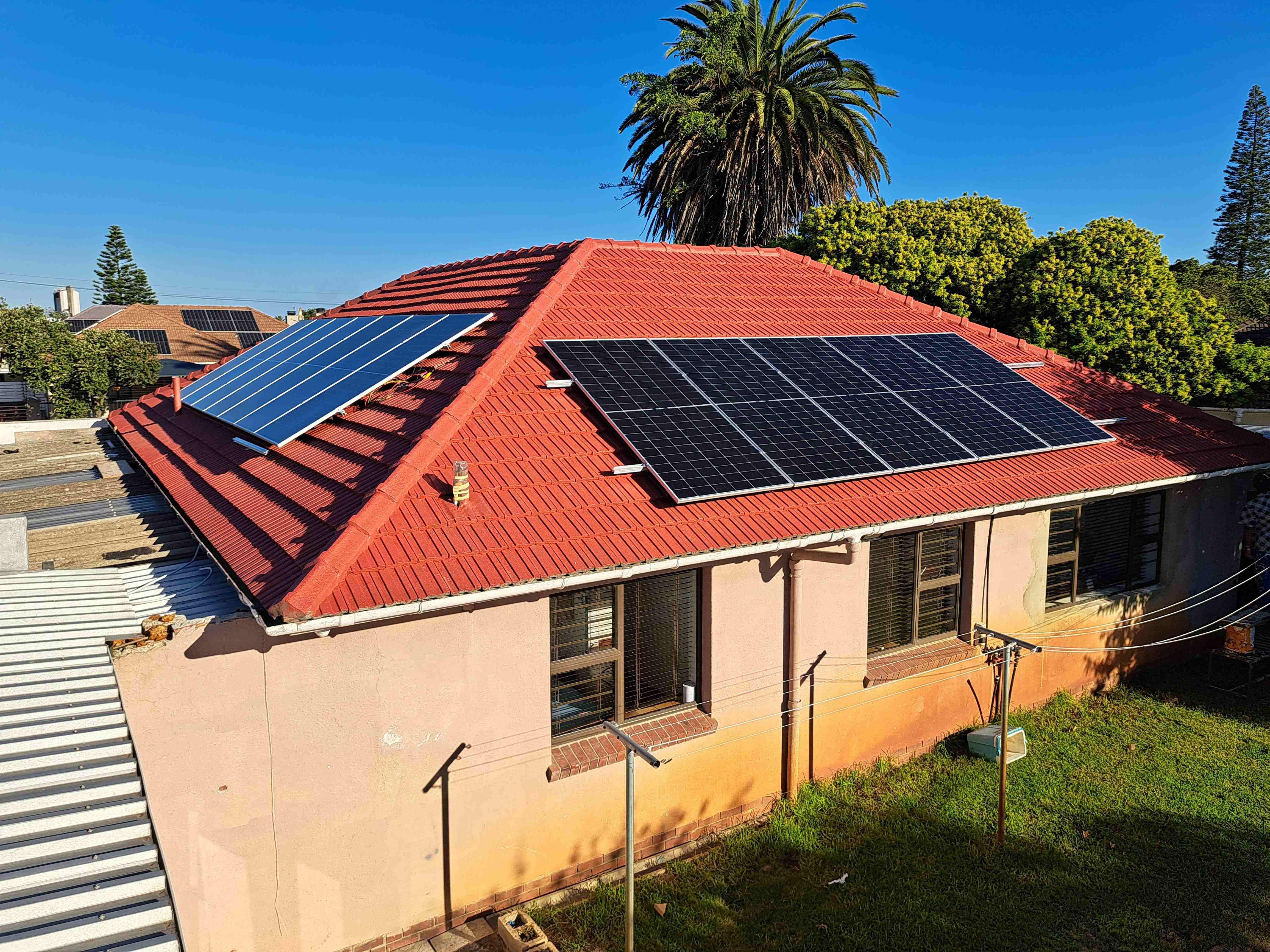

This picture was taken after 5pm. The is my guava tree that needs to be pruned but by the time when those shadows come on to the roof the sun is very low already. I will prune that tree soon otherwise my roof and gutters gets filled with guavas.

Hi Folks I finally had my system installed on Firday and Saturday past. The 12 panels are split into 2 strings. 7 on the east string and 5 on the north string. The sun hours are roughly split between the two. The north string has limited roof space though I could probably add another in landscape above the exisitng. I havent used the grid at all since Saturday which was the main aim of doing this. Only the electric geyser is left on the grid, the rest all run off the batteries. I have a gas geyser as the main geyser that supplies both house on my property. My mom lives in the other dwelling as she is renting out her properties otherwise she wouldve live alone since my dad passed a few years ago. Her stove and oven is gas. Only my cooking is gas with an electrical oven, airfryer, microwaves, multiple tv's, irrigation pumps and a pool pump. We ran the oven and kettle off the batteries last night and the batteries was at 60% SoC before it starting charging from solar this morning. Thus far it is doing exactly what I want but I do think I am missing some performance. I will gladly take some advise on the settings below.

Th Thanks a million I took the charge rate down to 65A. This is all a big learning curve for me. My wife is already fed up with me as I constantly watching videos and reading up on these matters.
