Thanks bro You saved my life

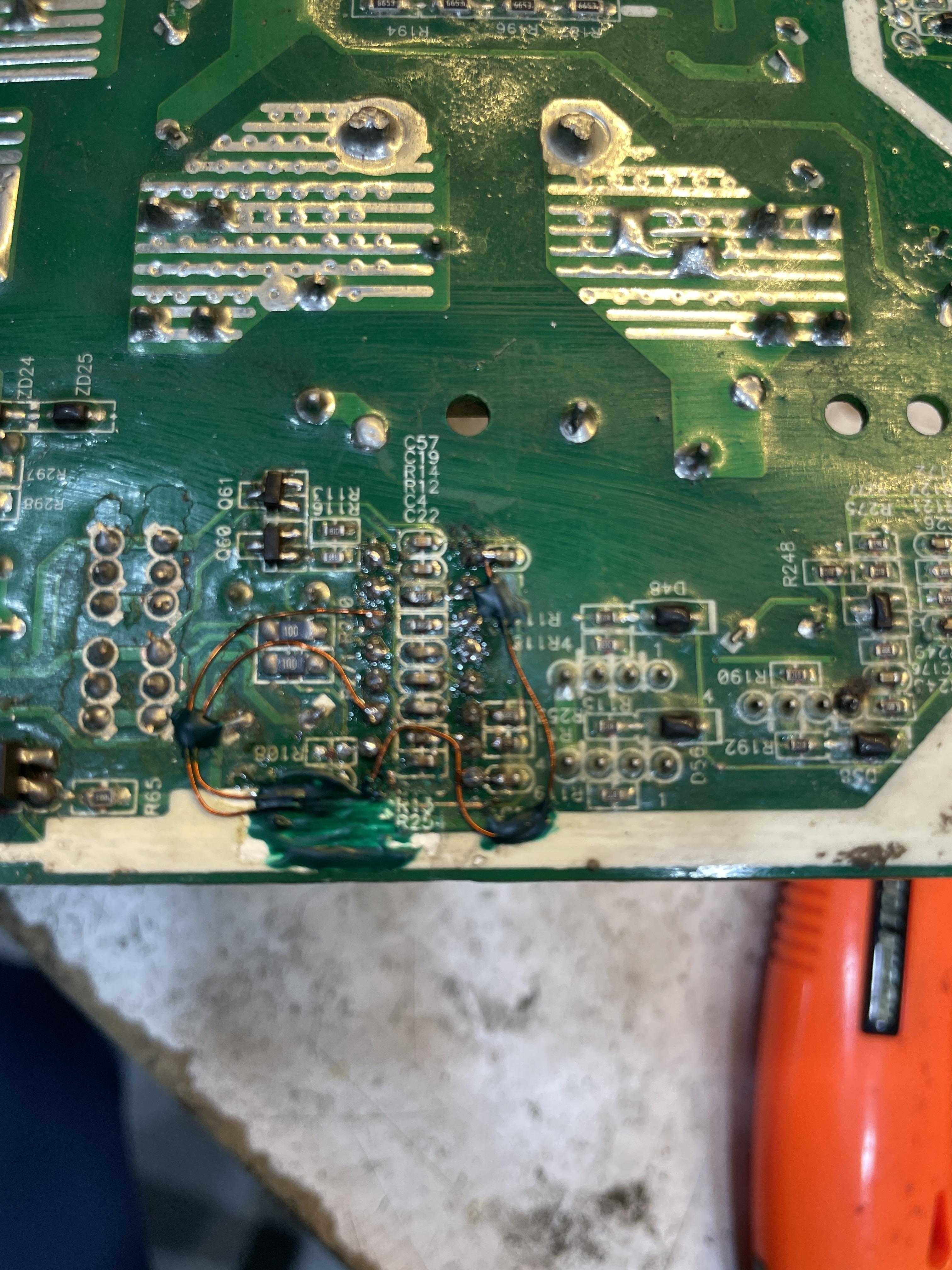

Hi folks, Just received this inverter from an technician who just messed it up, I have some issues in the SG3525 circuit. I believe that the components are not placed correct. Could anyone advice on the correct parts number as per the image below? If the schematic for this model is available, that would be highly appreciated Hybrid Axpert 11K Twin Thanks

Hi all, I am wondering what is the purpose of the IC in the modern inverters I see many posts talked about comparing batterh gnd and output neutral but I don't understand why Can any one explain? Thanks

@Coulomb what if we replace the controller of third inverter to a compatible one like two others? As i noticed the second output of two inverters is just like a relay separating from first output. Actuallu i have no idea what TWIN means Could you explain this plz?

I understand your guess Coulomb and most likely you have a point. Thank you

Hello, I have three inverters, Axpert Max E Twin 11Kw, for some reason, with mismatched firmwares. Here's more detailed info about the firmwares. Inverter 1 and 2: U1:78.04, U2: 38.04 Inverter 3: U1: 72.02, U2: 112.14 Inverters 1 and 2 are working in parallel, whilst Inverter 3 is not working due to a firmware difference. And I noticed the inverter 3 didn't have a second output, knowing that it is mentioned as TWIN on its sticker, meanwhile, the two others have a second output. How can I upgrade the third inverter to match the others? Thanks

Hi folks, My Growatt has the issue on PV, when the power consumption reached around 1700W from PV either feeding the output or charging the battery, it turns out to PV drop in power and voltage until 0V and 0W, few seconds and the process restart again, and so on. The utility is working well, output is well, battery discharge is well. The problem is only in PV. I debug the MPPT board, it had some teared wires due to humdity, so i fixed them out, and changed the TL072 to make sure the existing one is not broken. I tried out and still same issue. What do you think the problem is coming from? Might it be from other parts in MPPT? or in the controller? Thanks

Hi again, I've tried to debug the charging mechanism and found out that when charging the batteries using Grid input, the bulk IGBT pulses are not consistent, while it is consistent in duty cycle upon the presence of PV input, Here's the link to the video showcasing the IGBT PWM pulses. https://drive.google.com/file/d/1A9OHpgARE0lhlwU3FRDAYizDXfmu0W_L/view?usp=sharing

Yeah it happened recently

Actually I have tried to remove the BMS connection to check if its causing the issue, and set the batt type to USE/US2. The result is the same

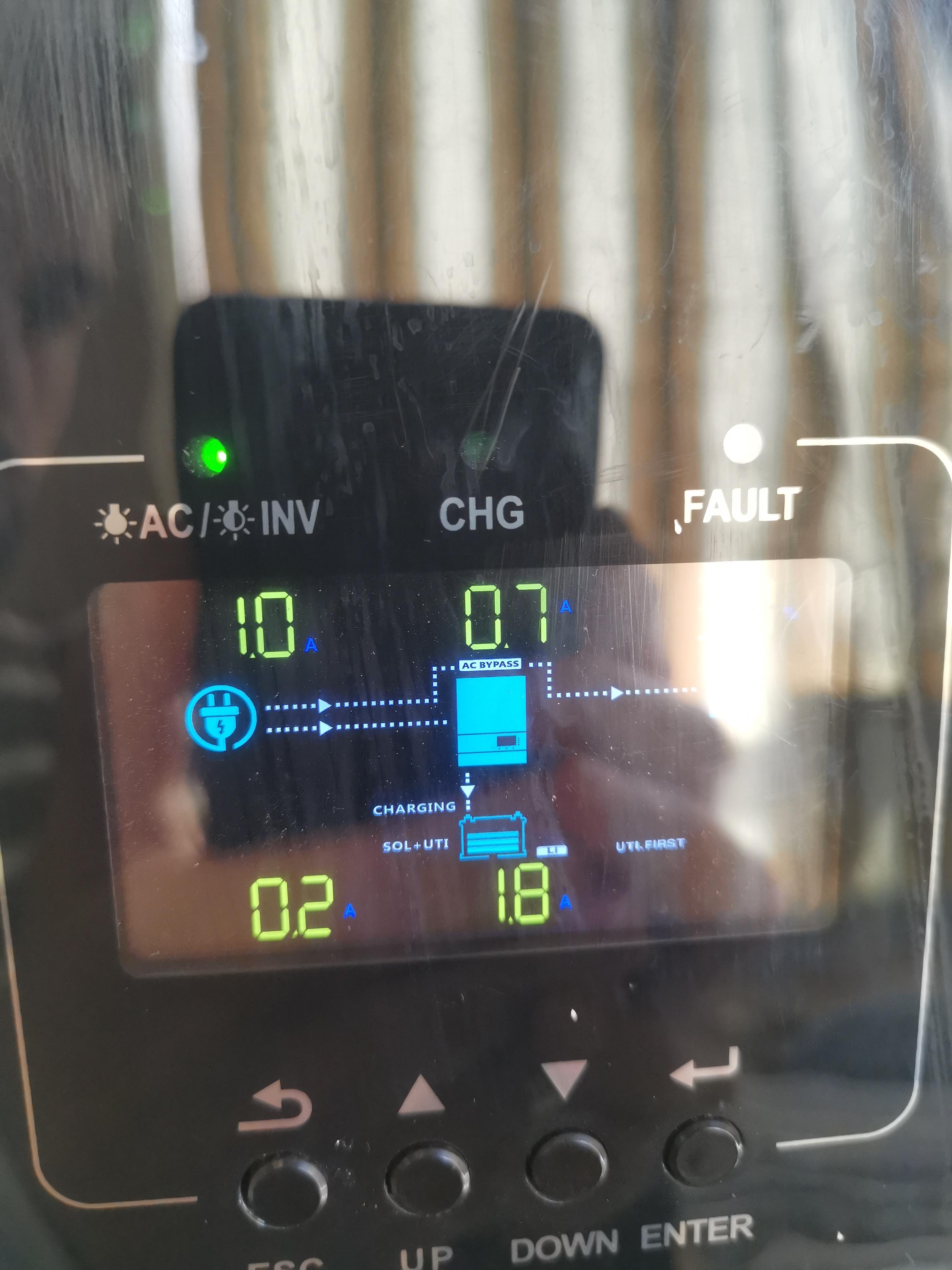

Hello, The inverter is not charging the lithium battery with enough current each time the power source is available (either solar or utility), The batter is lithium 10KWh connected through BMS to the inverter. I have tried to double check the charge current set, and it is 30A. Meanwhile, the inverter is charging the battery with less than 10A in most of time. Barely to see it feeding +10A of current. I have checked the main board and MPPT board, and seems like nothing wrong. Could anyone please explain this strange behavior, or having such scenario at his end? Thanks

Hi guys, When feeding the inverter from GRID, a strange behavior happens, a video is attached for clarity. The voltages for both AC input and DC battery are fluctuating obviously. This issue does not happen when charging the battery from solar input. I have checked the internal components, there are lot of humidity affecting the traces. However, seems like no traces are broken I tried to replace 330K resistor series at AC voltage sensing, but not fixed. NOTE: in video, the Grid voltage should be 230V Does anyone have idea about it? WhatsApp Video 2025-03-19 at 1.47.04 PM.mp4

Hi folks, The inverter has the following versions: 067 01 104 / 068 01 104. I am facing a loud fan noise issue and need to upgrade its firmware to the latest in all ways. My question: what is the latest official firmware that complies with my inverter? It would be very appreciated if anyone could share the guide as well. Thanks in advance guys.

Yeah this is a rebranded Deye, Not connected to grid
