HowserMD

It seems Sunsynk is offline.

I have added the units, thanks @slipx

as far as the current repository, grid sell and buy do not have units. Let me know where I went wrong with the above.

I can see the data from the inverter, am trying to find out what should go into the Energy Settings/Configuration. Below is the usage of the data.

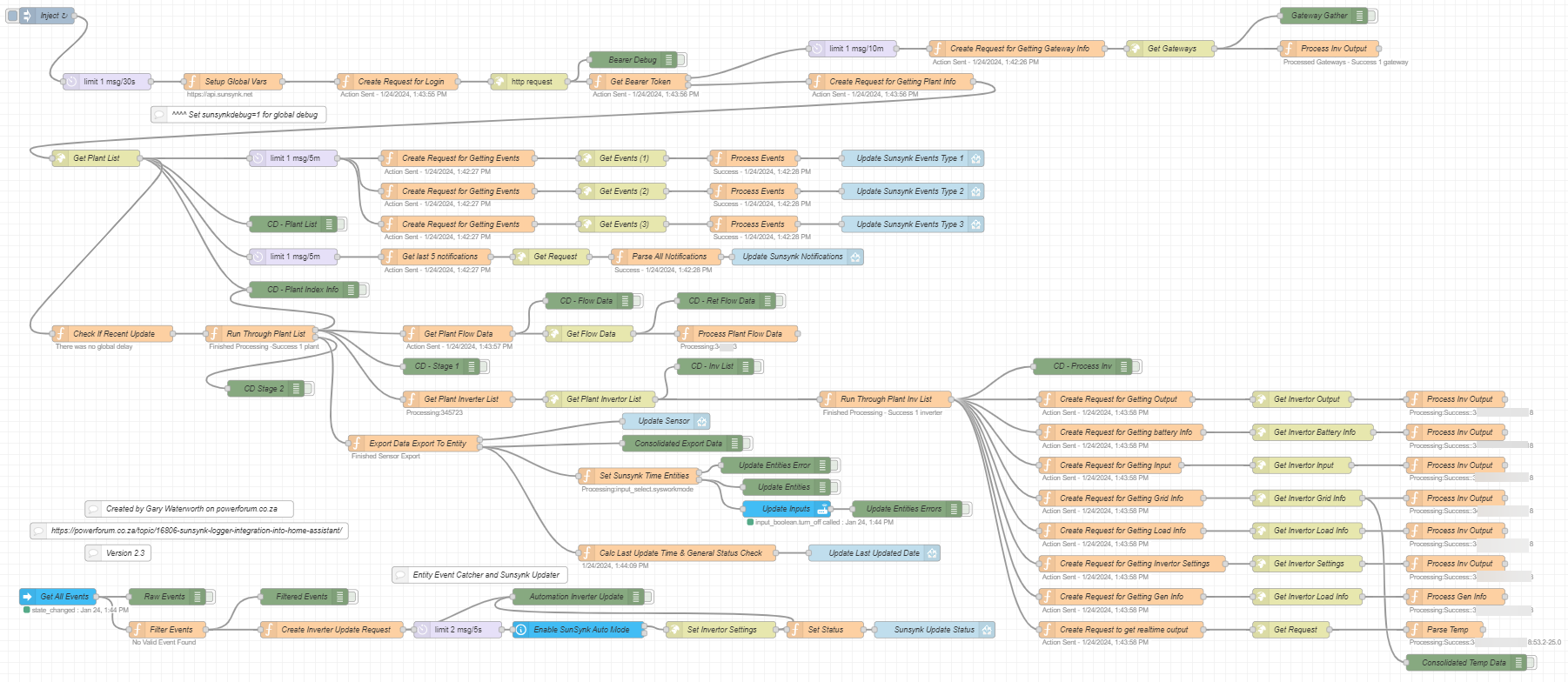

I have a 3 phase 12Kw sunsynk, just wondering what I need to use from Node-Red SunSynk Automation to be able to configure the Energy Dashboard (at the least Solar Panels and Home battery storage).

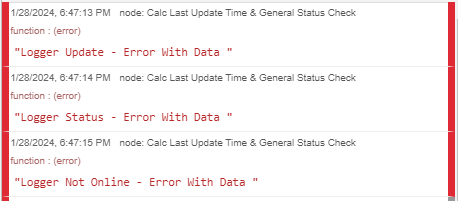

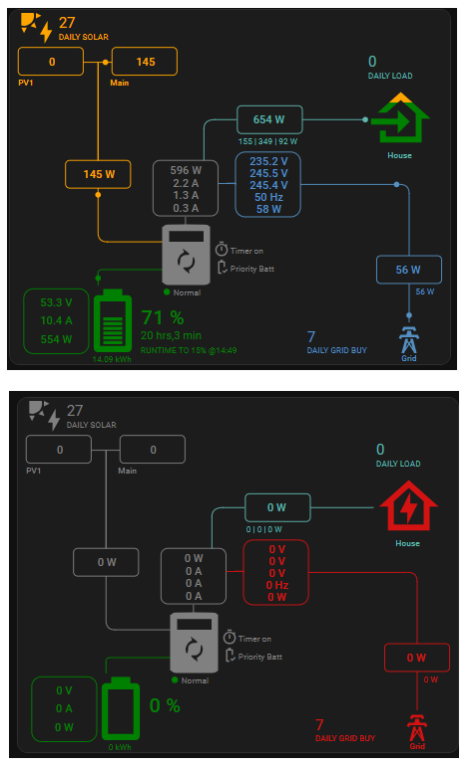

It looks like every second Query results in Node-red errors, which results in null states and the card is then without valid data (card with data followed by card with null values)

Got the same issue from 03:40 this morning. The inverter is connected to the internet, but no data going out.

Looking at the hass-post http status code 400 errors, do you have the entities sensor.sunsynk_battery and sensor.sunsynk_load in home assistant?

This is from the sunsynk-power-flow-card

@Gary Waterworth, what should show on the card for a 3 phase system, that would not otherwise for a single phase?

Makes sense. I thought they were meant to fill these on the card...

If you click on the image, you can then zoom in. I thought the would be attributes for current, volt, etc for all phases in there, did not see any.

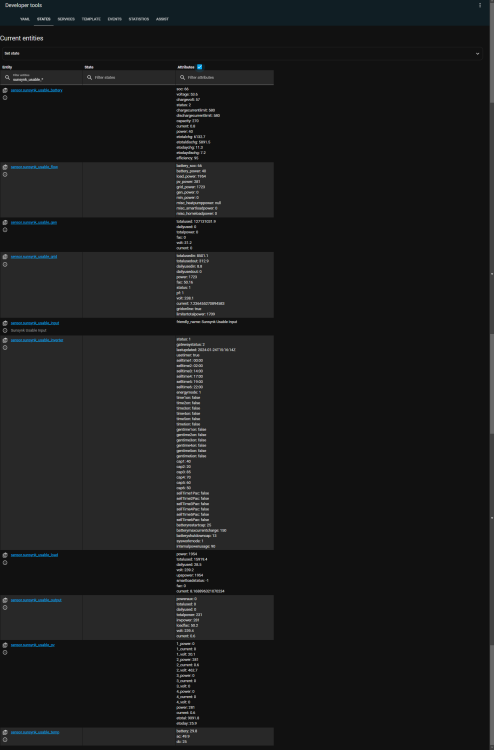

This is what I can see so far, I can see the grid's values in SS.Consolid.Plant["x"].Inverter["x"].grid and output I could not see any sunsynk entity.states or attributes that have the above. On the sunsynk-power-flow-card, the only 3 phase setting I can see is inverter.three_phase: true, and this is what is produced
