Hi thanks a lot for the reply, but my kit is 2 months old, the inverters are voltronic axpert max II - 10kW
-
Hi, today i found a problem, batteries was in alarm mode. i have 2 parallel inverters, everything connected like it supposed to be, but one of the inverter has continuity in both + and - on the input of the battery. the other one is good. any ideas how this is possible??
-
Could this be from battery cables not being the same lenght?? Cause even that the inverters not showing draining battery it is draining, yesterday was a “no solar” day haha, and the batteries got to 0%, i had to reset everything and charge them with utility and yes, the icon of master and slave is intermitent in the screen as H5 and SL, the screen is not touch, so i cant click on the battery icon
-

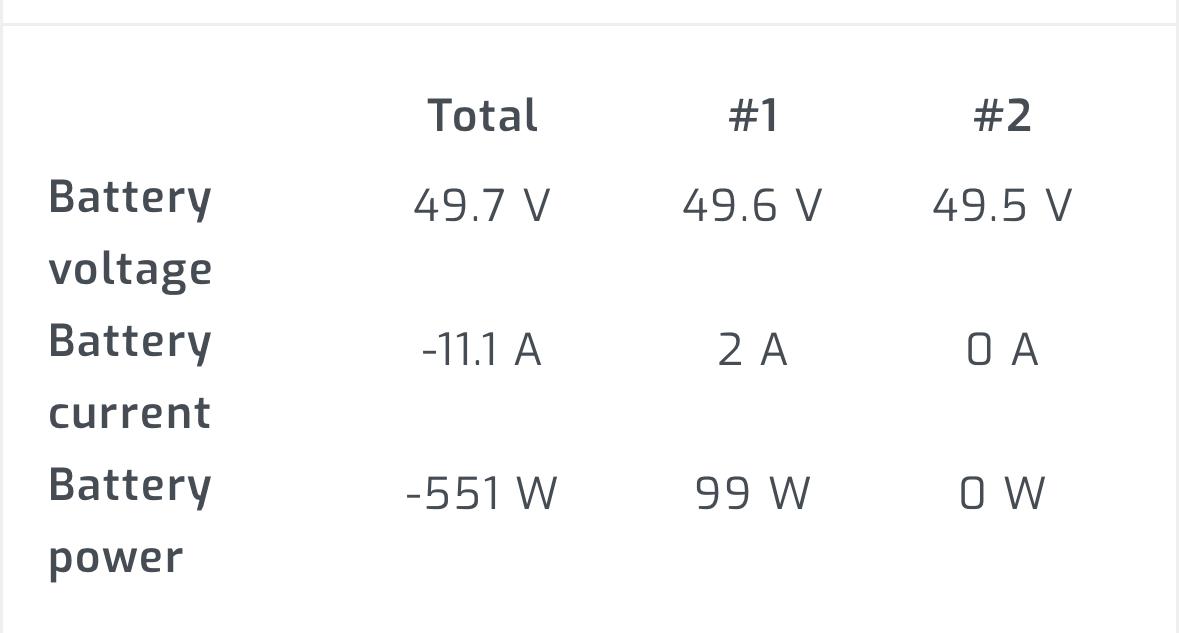

I cant understand why!! 😂😂 one inverter is charging 2 amps, the other inverter nothing and total im draining 11amps
-
One information, due to installation, battery cable lenght from Inverter 1 to bus bar, its not the same as inverter 2 ( this one is longer for like 30cm ) could this be it? is the one thing i can think of
-

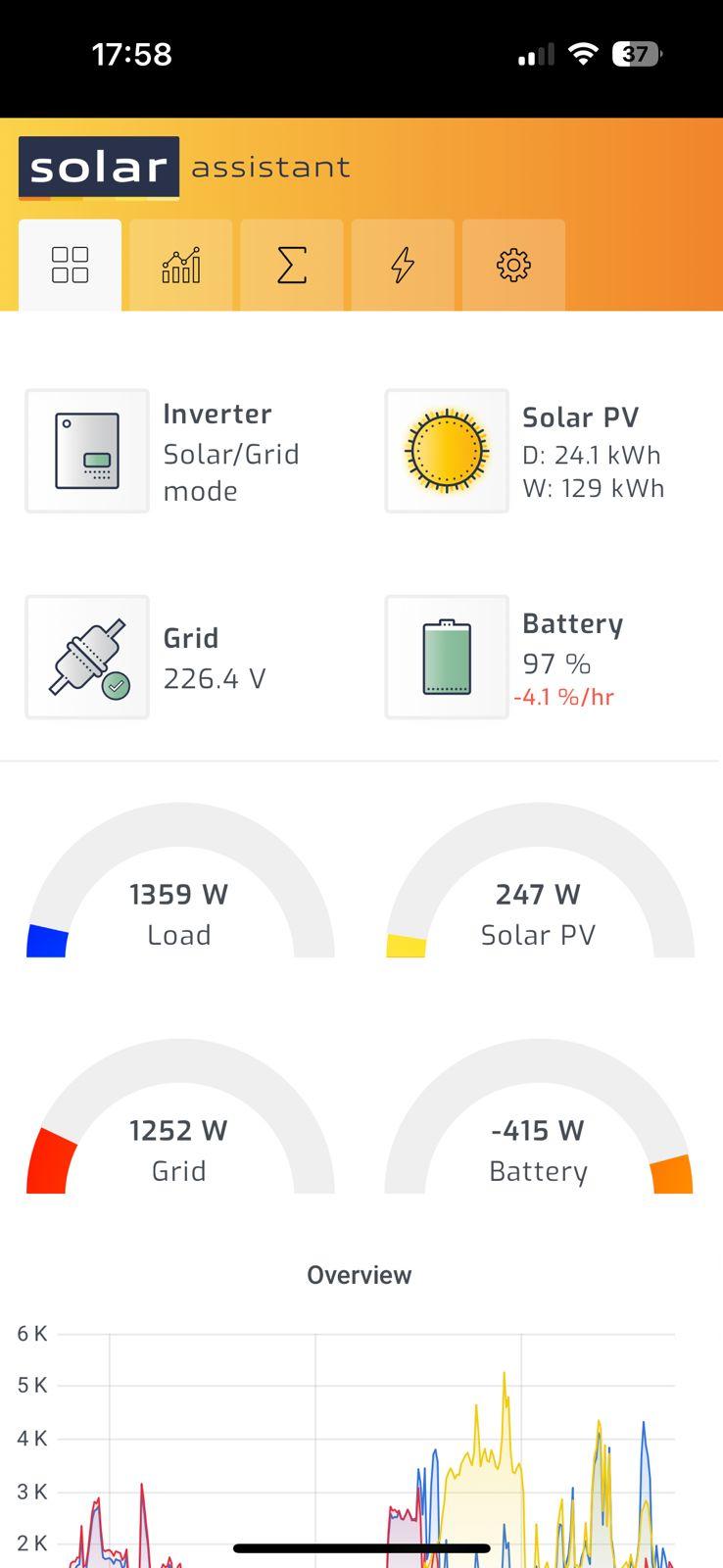

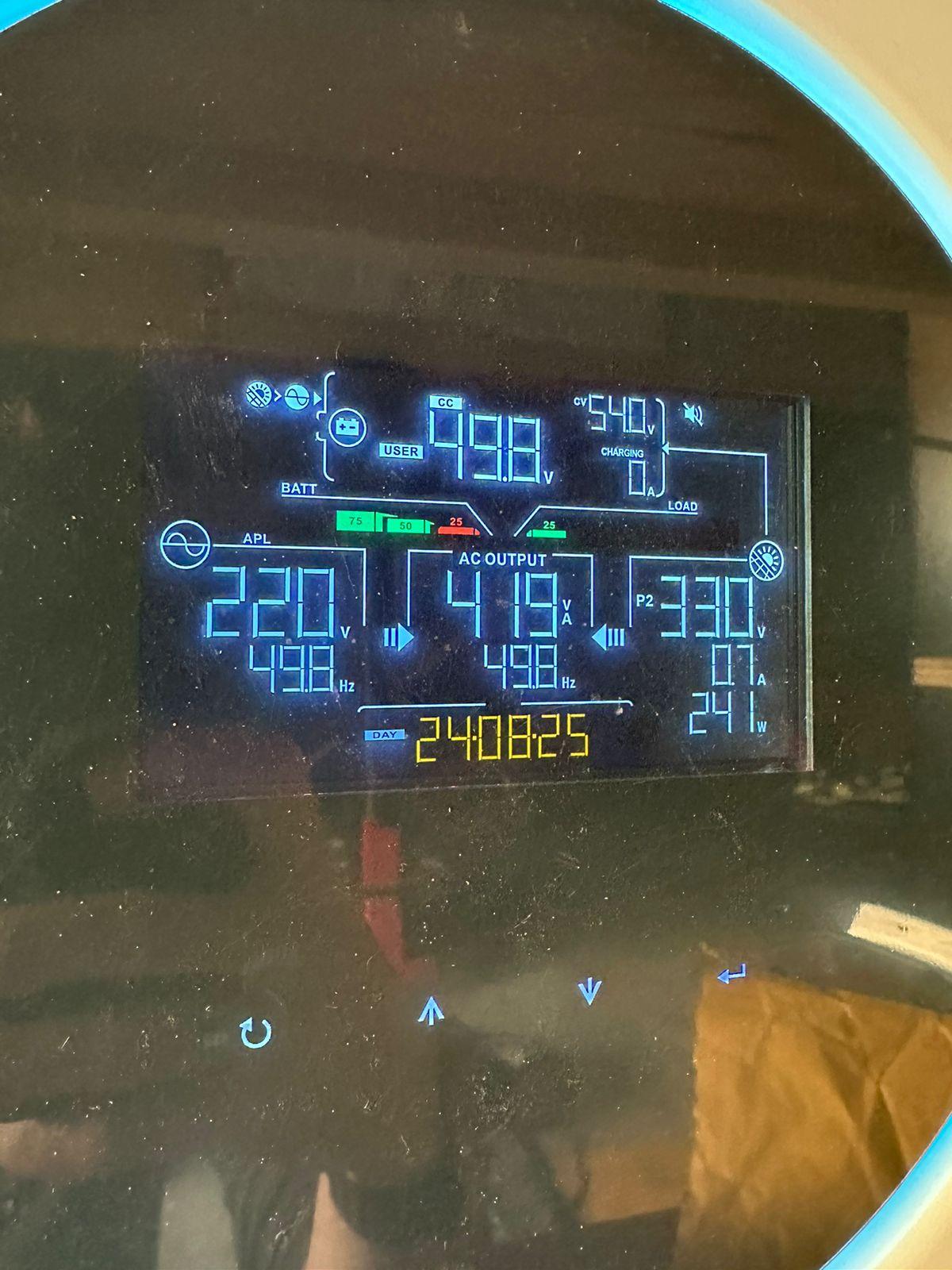

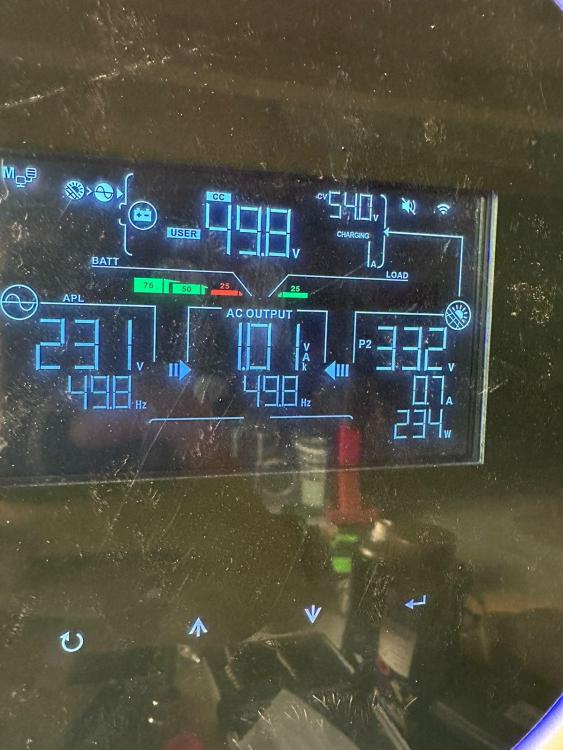

Hi there maybe you guys can help me out. I have 2 axpert max 10kw connected in parallel, each with 8x550w panels, with 2 - 4.8kw batteries. All is connected to solar assistant ( serial connection to one inverter and serial connection to BMS ) , yesterday i finish the installation of the second inverter and works fine, but i have this issue with the batteries and solar assistant. right now im in SUB mode, none of the inverters are using battery but solar assist says im using 500w of battery i attached pictures from yesterday afternoon. Inverter should be charging 2amp to the battery in SUB mode any ideas? I also asked to solar assistant for help. this is a project that im working on it, its 4 houses, 4 different grids, 4 different loads, 12x550w each house, 3x4.8 kw battery each house, im still a long way to go
-
-
Hi, im fairly new into solar system. Setup 2 x voltronic axpert max 10k, 2 x 4.8kwh nimac battery, 16 x 550w panels all of the installation is done by myself. With solar assistant in pi5, waiting on the BMS cable….. my question is: i have 8 to pv1 and 8 to pv2 in series. Its better this way? It would be better to connect 4 en series and 2x4 parallel? I have 6mm2 solar cables.
