wehanvdw

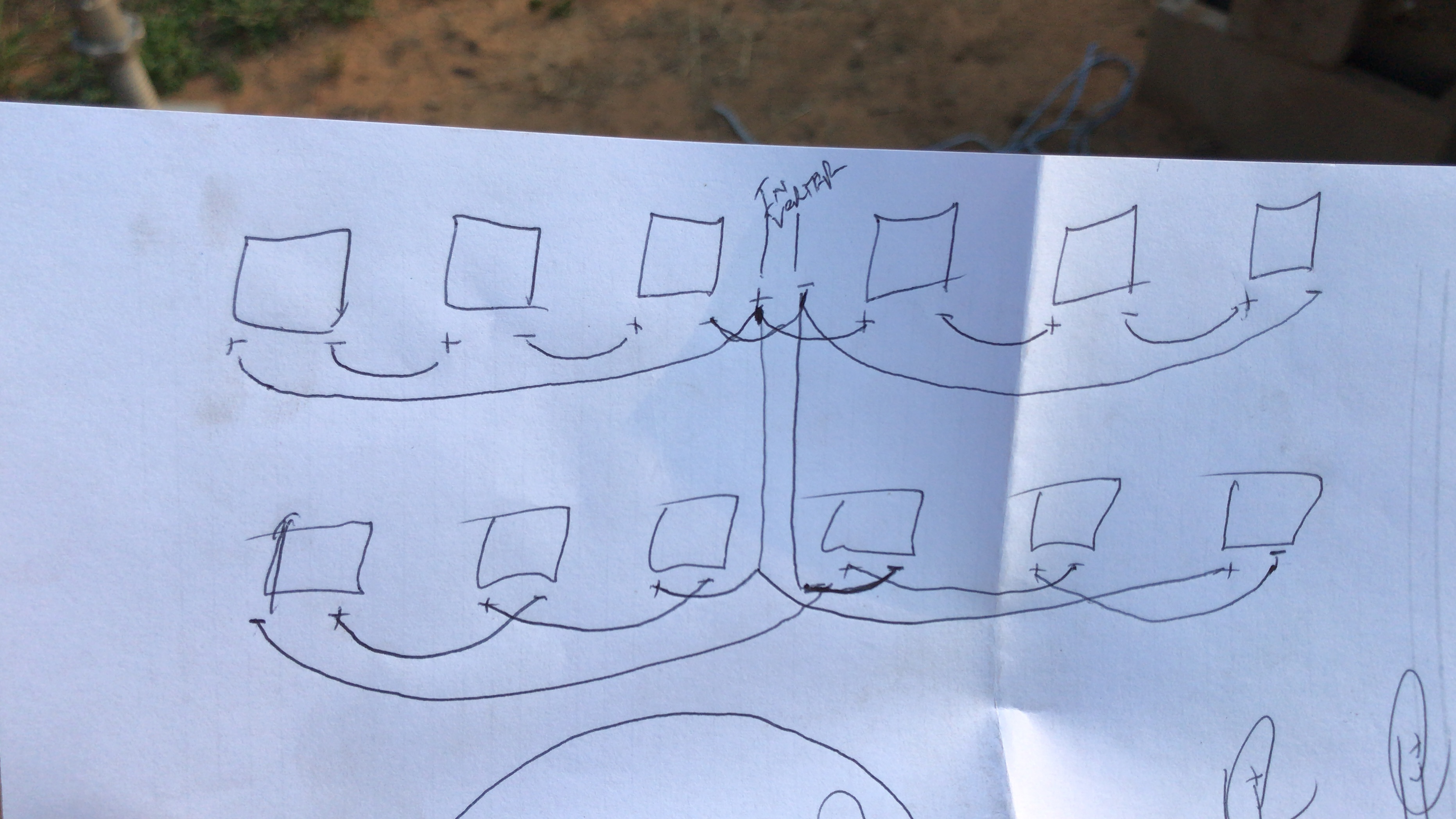

Please see photo of panel icon and lay out of panels . I have idea that the panels my not connected good so I am gone re connect then with ferrals seams the connector that panels get shipped with is not connecting very good

1.17KW from 12 the afternoon , max after update it cuts off and uses the battery on full sun as today we use it as off grid also what is tweak for 5.5kva generator so we charge on cloudy days can you please a drawing a diagram of how it will be must be best setup Limpopo and also what angel . running on floor on steel beam till i have roof to put it on .

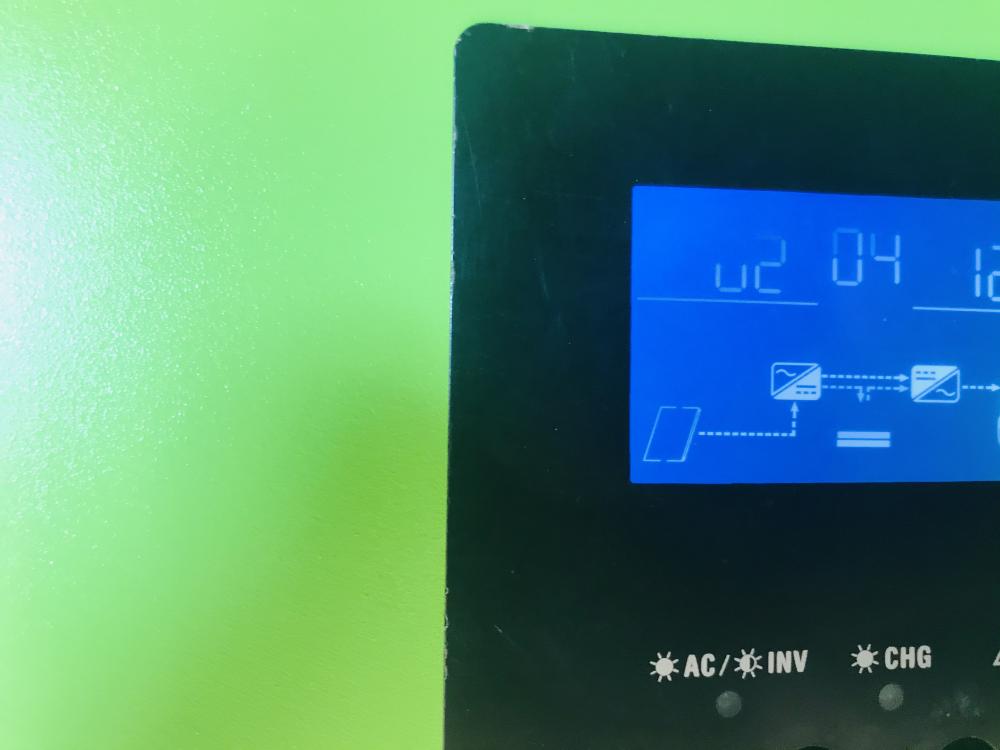

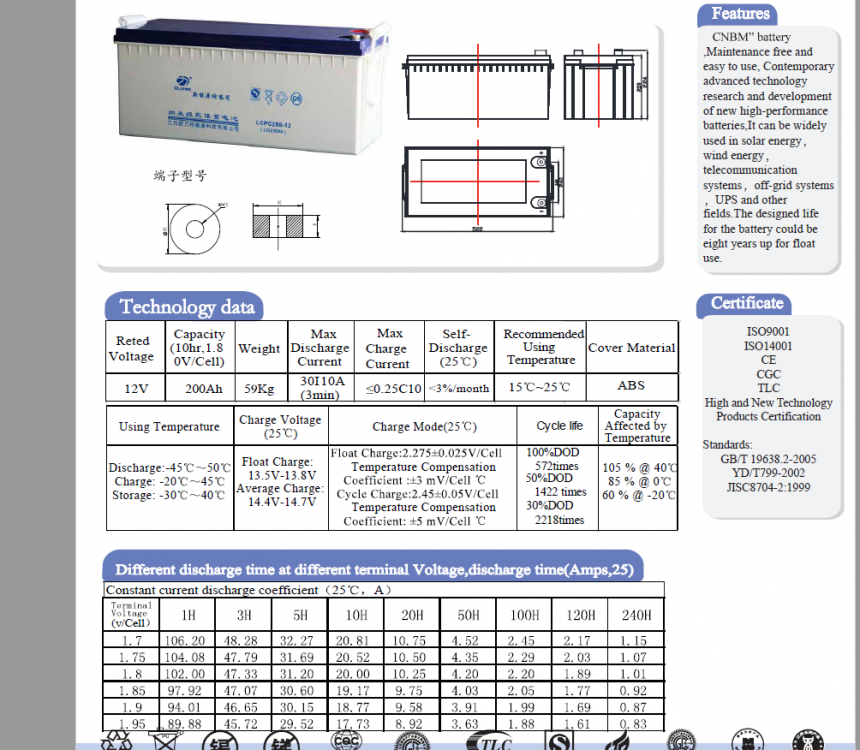

good day got modified firmware . 74.40e . now when all of panels are in the sun it shows on the screen 2 panels . will me changing the layout of the panels allow more solar power to come in . I have gel battery sealed . oliter 200AH . will see tonight if battery charged up better .

270w panels open v 38.3 open 9.20 max 31.1v 8.68amp axpert inverter should 6 pX2 s or keep it 3pX4s 400AH oliter battery bank gel

should change my setup of panels to get more amps in Limpopo . we use 300W in evening and sometimes we run out early morning - I am thing panels are not Charing battery to full thus it shows full 50.4V - should get firmware upgrade Setup 3 P X 4 series panels 270w 30V 8.68Amp Battery Oliter 200AH X8 Below inverter settings 1 sbu 2 40A 3 ups 4 sds 5 use 6 lfe 7efe 8 50hz 9 uti 60 ( no Eskom only generator but thus want charge with it ) 12 44V 13 Full 16 c50 18 60A 19 Hep 20 LoF 22 aon 23 byb 25 fen 26 57.8 27 55.5 28 pal only have one inverter 29 43v 30 one 31sbe 32 600 33 EEN 34 57.4 35 60 37 30D 38 Nec DLS 39 ADS

I both 8 of them to have 400Ah to run my 5kva RCT inverter Solar panels 12 X275 Watt solar panels gone run in banks of 3 panels per set .

Please help No reply on the email any other way to get price and order

Tanks Chris . I need help on the DC board Breaker size's in and layout if some one can post a diagram please PV 3 X4 270w Panels 3 in series Inverter Mecer / RCT 5kva Pf1 inverter Battery Banks X2 each 200Ah 48V

good day How can i contact Chris to get the ha-02 .i have 2 banks of 48V.

if i replace the fridge and freezer will i be able to lower my inverter needs . friend is running off grid for 5 years know . 8 X 250w 2 string 3 kva inverter outback changer controller . option on the trogan 105 X8 225 ah .

Good day i need some guidance is my Sum correct and will it work on the below invert er battery bank VOL-MKSII-5K-US2000B-PLUS-4.8-T1 Alternative will this work with the Mecer inverter T105 6V 225 X8 Note geysers will be on gas Oven and hub gas can i run the below Day time only wash machine hot wash dish washer hot wash 24/7 Old fridge and freezer 30 od years old night Frige freezer TV LED Lights Laptop Internet Solar Panel panel array CS6U-335P-F35 3 series V 112.2 A 8.96 Parallel Switch to power of panel flow to inverter MKS 2 Mecer 5KVA off grid invert er charge Fail over ( 5.5KVA) generator V 224.4 A 17.92 3 series V 112.2 A 8.96
