  1. Axpert King 5kW and Pylontech 3.5kW. It seems the inverter is constantly charging as the charging symbol is animated. No Solar, just using this setup (for now) during Load Shedding. My settings so far: 05 Battery Type USE 12 Voltage point back to Utility on SBU/SUB 47v 13 Voltage back to battery on SBU/SUB 50v 26 Bulk Charging Voltage (C.V.) 53.2v 27 Floating charging voltage 53.2v 29 COv Low DC cut-off voltage 47v I used the black communication RJ45 cable which came with the inverter or Battery and I crimped my own according to instructions here. Not sure which DIP setting to use. I tried both but whenever I set Inverter to PYL battery type I get an error 61. I turned Battery off and on after any changes in connection. Inverter shows it is charging all the time although I activated Bypass. 10 Operation Logic ECO 23 Bypass Enabled/Disabled/Forbidden BYE
  2. Same problem here. Done that but fans still on. Must I restart device, wait some time?
  3. I could connect via Bluetooth to Android ONLY. But WatchPower doesn't have all the options as the desktop app. And Installation Instructions refer to desktop App. - Bluetooth not working on iPhone WatchPower App - Inverter doesn't show on Apple Laptop via Bluetooth when trying to connect. - Connection to Apple Laptop via USB cable doesn't seem to have an effect or is supported by WatchPower - Connection with a network or Cross-over cable from Computer Port on Inverter to Laptop doesn't give any network settings nor any signal to show the computer there is a physical connection. - my PC is a few rooms away Any ideas? Voltronic Axpert VMIII-KING Settings.pdf voltronic inverter setup sop Inverter supplier.pdf
  4. So it needs more strings in a combiner I guess?
  5. Axpert King 5kW plus Pylontech 3.5kW First load shedding with my installation. Yeahhhh. First time ever to be happy to have load shedding. It didn't last. Inverter quickly went into "panic mode" with fault 04 stating "low Battery". System shut down after 80 minutes while 5 of 6 lamps on Pylontech were still flashing. It was connected with black supplied Ethernet cable between Inverter Battery Port and the RS485 at Pylontech. Wrong way around according to labels but I guess it doesn't actually matter. I tried using a cross-over cable (supplied by my IT guy) and set option 05 to PYL but I quickly got a fault 32 (communication). Pics were taken before load shedding. Several parameters in settings PDF are a bit different and some don't show up or have different descriptions. Some can't be set on the inverter directly. Very irritating. Any Advice? Voltronic Axpert VMIII-KING Settings.pdf voltronic inverter setup sop.pdf
  6. Many say the axperts can't as they are not real hybrid inverters. I couldn't find any specs or infos in the manual nor manufacturer contact information to ask. Where can I confirm that information for the Axpert King inverters? I am using it for load shedding and want to expand with solar.
  7. I have problems connecting: - Android via Bluetooth works. sadly watchpower desktop app settings have different naming and more options than the smartphone app. Confusing. - iphone doesn't work as it seems to support Wifi only - Macbook Laptop with Watchpower Software doesn't connect through USB nor bluetooth nor network or cross-over network cable. Inverter doesn't show as a bluetooth device. - Windows PC available but far away from inverter. Extra Wifi AP available. Cross-Over Network Cable available. How can I connect without an Android Phone?
  8. I can't get my Axpert King to hook up with the Pylontech properly yet. so it reads I need a cross-over cable and put it into the CAN port then set function 05 battery type to PYL. Done. but not working. I get an Error Fault 32 after a few minutes. "Communication Interrupted".

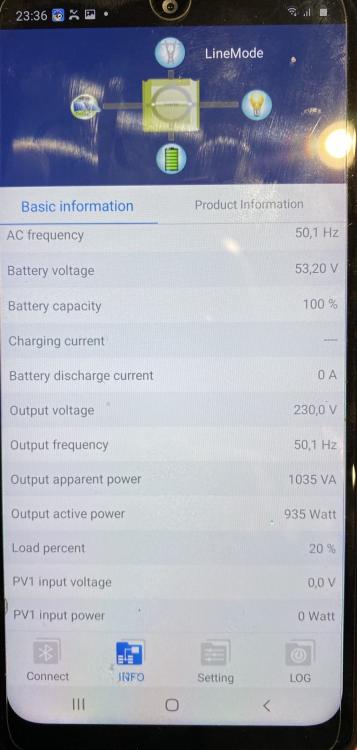

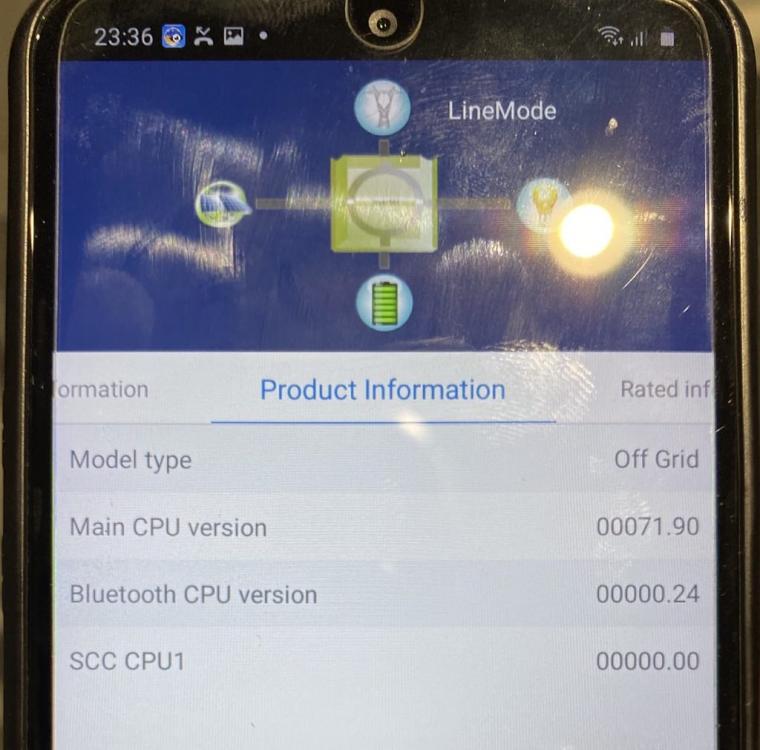

  9. Use an android phone with Watchpower App. Bluetooth communication sadly doesn't work on iPhones with this app
×
×
