MorphZan Posted April 29, 2023 Share Posted April 29, 2023 Hi All Anyone running Solar Assistant with a Deye 5kw inverter who can share a photo of how their Pi is connected to the inverter? Quote Link to comment Share on other sites More sharing options...
Steve87 Posted April 29, 2023 Share Posted April 29, 2023 Hi @MorphZanyou need to plug into the RS485 BMS port. Pins 1 & 2 RS485B & A respectfully. The other ned plugs into the Pi via USB. Quote Link to comment Share on other sites More sharing options...

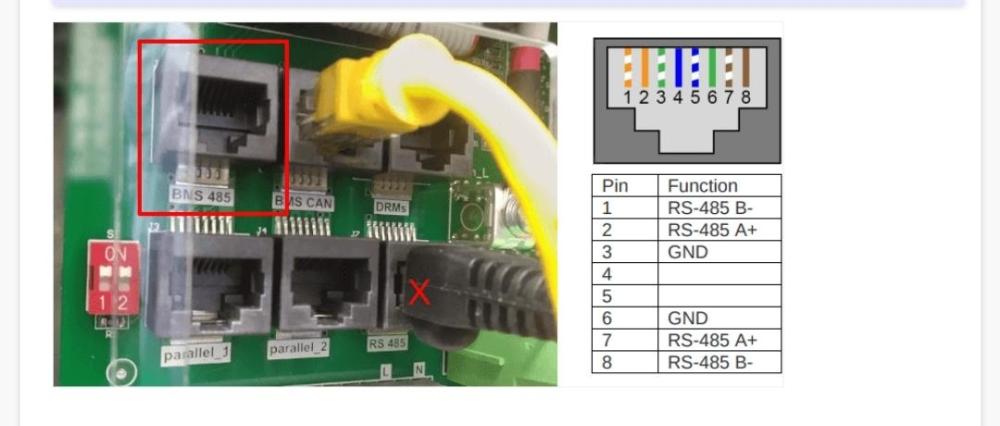

Steve87 Posted April 29, 2023 Share Posted April 29, 2023 Quote Link to comment Share on other sites More sharing options...
Steve87 Posted April 29, 2023 Share Posted April 29, 2023 The Modbus port in some models also works. Quote Link to comment Share on other sites More sharing options...

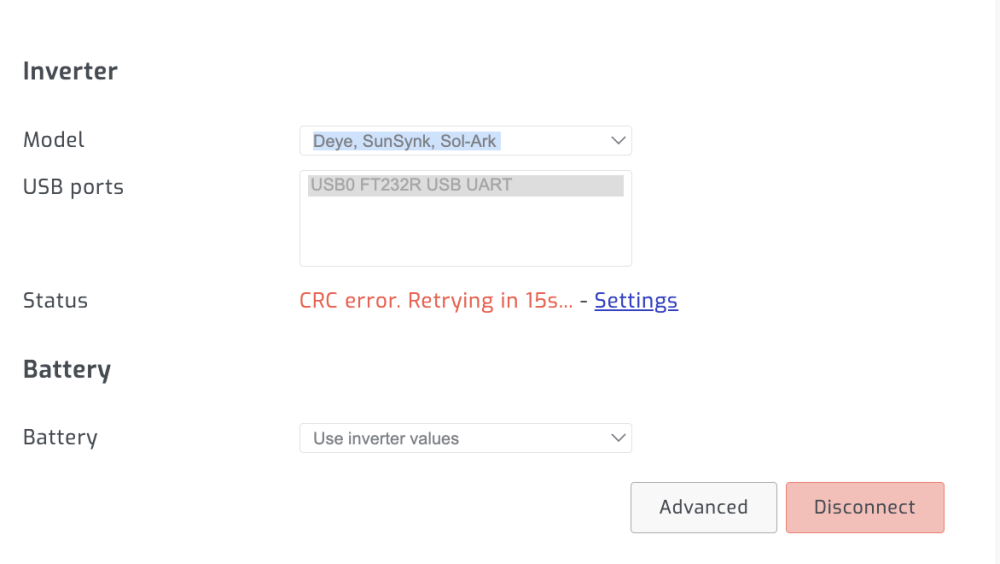

MorphZan Posted April 29, 2023 Author Share Posted April 29, 2023 (edited) 1 hour ago, Steve87 said: Ive connected up to this port but I get a CRC error: Edited April 29, 2023 by MorphZan Incorrect Image Posted Quote Link to comment Share on other sites More sharing options...
Steve87 Posted April 29, 2023 Share Posted April 29, 2023 What do you see on the dashboard? Quote Link to comment Share on other sites More sharing options...

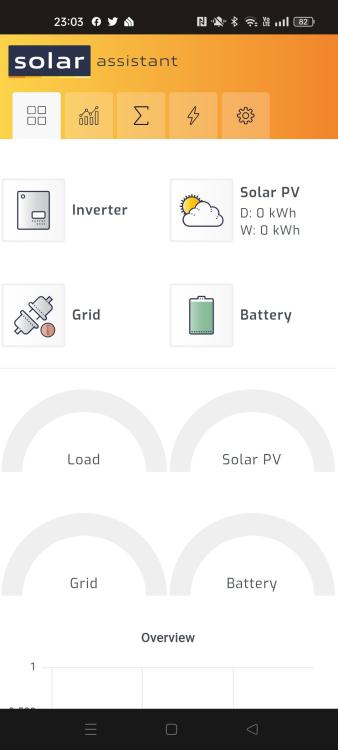

MorphZan Posted April 29, 2023 Author Share Posted April 29, 2023 29 minutes ago, Steve87 said: What do you see on the dashboard? Dashboard is empty Quote Link to comment Share on other sites More sharing options...
Steve87 Posted April 30, 2023 Share Posted April 30, 2023 How are you crimping ? & Show us a pic of the ports you have. Quote Link to comment Share on other sites More sharing options...
MorphZan Posted April 30, 2023 Author Share Posted April 30, 2023 The ports are the same as in the image you posted. I believe the cable I was given and told would work is incorrect. UGreen USB2.0 to RJ45 Consol 1.5m Cab -Black https://www.takealot.com/ugreen-usb2-0-to-rj45-consol-1-5m-cab-black/PLID53646762 Quote Link to comment Share on other sites More sharing options...
Steve87 Posted April 30, 2023 Share Posted April 30, 2023 There is a reason I gave you the pin outs. You need only 1 & 2. The others are not required. So you can either spend on the solar assistant cable & spend R500 bucks or you can use a crimping tool & actually make up the cable. I'm sorry to say that these out the box cables are HIIT & miss. You need a RS485 to USB converter, RJ45 crimping ports & a suitable RJ45 crimping tool. Maybe just buy the cable for R500...Where are you based. If in JNB give me a shout. Quote Link to comment Share on other sites More sharing options...

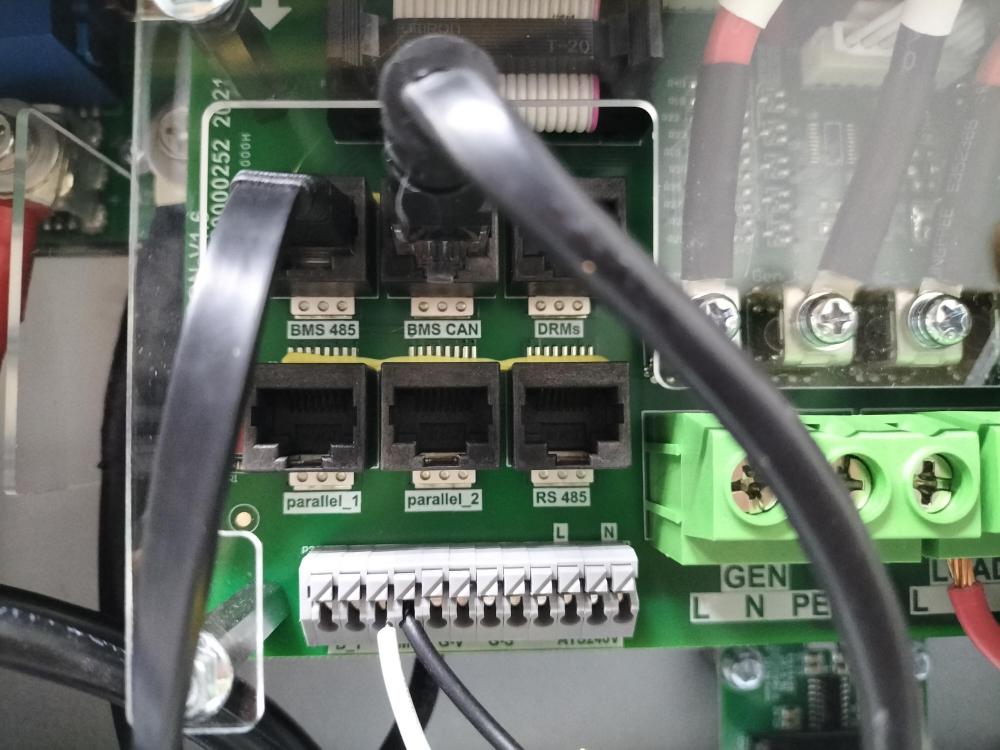

MorphZan Posted April 30, 2023 Author Share Posted April 30, 2023 (edited) Based in Cape Town but much appreciated. It's a once off cost so will purchase the cable from SA and be done with it. Just to confirm though the cable should be connected to the BMS 485 port as in this image? Edited April 30, 2023 by MorphZan Grammar changed Quote Link to comment Share on other sites More sharing options...
Steve87 Posted April 30, 2023 Share Posted April 30, 2023 Yes the BMS RS485 port. That is the port that the Solar assistant makes use of. Raiden2912 and MorphZan 2 Quote Link to comment Share on other sites More sharing options...
MorphZan Posted April 30, 2023 Author Share Posted April 30, 2023 Thanks for all time and advice, very much appreciated. Ill let you know once I have the cable and I have managed to get it up and running!!!! Quote Link to comment Share on other sites More sharing options...

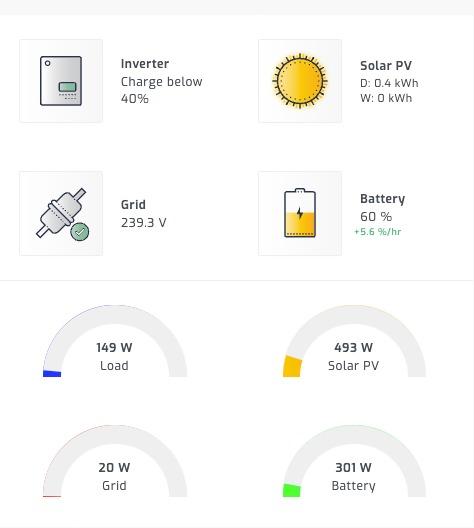

MorphZan Posted May 6, 2023 Author Share Posted May 6, 2023 @Steve87 Again thank you for all your time and assistance - very much appreciated.... Cable arrived and system is up and running 100% - I am waiting on a Pi Zero as I want to see if it works on there. Image from Yesterday sometime: mzezman and Steve87 1 1 Quote Link to comment Share on other sites More sharing options...
Steve87 Posted May 6, 2023 Share Posted May 6, 2023 Awesome glad you got going finally Quote Link to comment Share on other sites More sharing options...
