Combo Package Only R670 450.00 VAT Included Excluding Delivery Package 10-Year Swap-Out Warranty • Industrial & Large C&I Package Includes: https://www.solisinverters.com/global/energy_storage_inverters38/S6-EH3P(75-125)K10-NV-YD-H_gl.html Solis S6-EH3P125K10-NV-YD-H 125kW 3-Phase High Voltage Hybrid Inverter – 10 MPPT trackers (high string current) – Dual battery ports with up to 200A charge/discharge – Advanced energy management & grid support – High overload & reliability for demanding sites https://esener.co.za/product/esener-high-voltage-215kwh-air-cooled-lithium-battery-system/ ESENER 215kWh High Voltage Air-Cooled Lithium Battery System – Large capacity LiFePO4 storage – Air-cooled for optimal performance – Excellent Solis integration – Safe, high-density & long-life design Key Benefits: Perfect for factories, shopping centres, warehouses & solar farms Powerful backup, peak shaving & self-consumption Scalable for bigger projects 10-Year Swap-Out Warranty Combo Package Only R670 450.00 VAT Included Excluding Delivery Contact us for Powerforum member / Installer pricing & project quote Contact Details: Email: [email protected] (mailto:[email protected]) WhatsApp / Call Steve: 074 218 9845 Landline: 021 276 2975 Support us so we can continue to provide this awesome free resource for you.

Combo Package Only R259 325 VAT Included Excluding Delivery Tier 1 10-Year Solis Swap Out Warranty • Perfect for Medium Commercial & Large Homes Package Includes: https://www.solisinverters.com/za/energy_storage_inverters16/S6-EH3P(30-50)K-H_za.html Solis S6-EH3P50K-H 50kW 3-Phase High Voltage Hybrid Inverter 10 Year Swap Out Warranty – 4 MPPT trackers (up to 100kW PV input) – 140A max charge/discharge current – Fast backup switching & overload capability – Smart peak shaving, time-of-use optimisation & energy management – Robust commercial design ESENER 61.4kWh High Voltage Lithium Battery System 10 Year Warranty ESENERESENER High-Voltage 61.4KWh Air-Cooled Lithium Battery Sy...The ESENER High-Voltage 61.4KWh Lithium Battery System is a high-performance, reliable energy storage solution designed for large homes, warehouses, and farms. Featuring advanced safety systems, effic – Air-cooled LiFePO4 technology – High energy density & long cycle life – Seamless Solis communication – Safe, reliable & scalable design Key Benefits: Ideal for medium commercial buildings, factories, farms, or large homes Powerful loadshedding backup + solar self-consumption Peak shaving to cut high demand charges High efficiency and easy future expansion 10-Year Warranty on the full package Combo Package Only R259 325 VAT Included Excluding Delivery Contact us for Powerforum member / Installer pricing & full quotation Contact Details: Email: [email protected] (mailto:[email protected]) WhatsApp / Call Steve: 074 218 9845 Landline: 021 276 2975 How to Order: Send your enquiry directly. Nationwide delivery & professional installation support available. Support us so we can continue providing you with this great free platforum.

Premium Solar + Backup Solution R18 343.00 Vat Included Delivery Excluded 10 Year Swap Out Warranty Hinen South Africa6kW Single-phase Hybrid InverterHinen 6kW single-phase hybrid inverter, apply to solar system with participation of PV, battery, loads and grid system for energy management. Energy produced by PV system shall be used to optimize houHinen H6000-EU 6kW Single-Phase Hybrid Inverter 190%+ PV oversizing max 11.4kW solar input 120A lightning-fast continuous charge & discharge EPS backup transfer <20ms Fanless design super quiet (≤25dB) IP65 dust & waterproof Multiple APP work modes for maximum efficiency Parallel capable (up to 2 inverters) All-round Inverter Protection: PV disconnection protection Ground fault protection DC bus protection Type II DC SPD & Type III AC SPD Knyee ES-LV-5 5.12kWh Wall-Mounted LiFePO4 Battery 1_ES-LV-5规格书 (1).pdf 51.2V 100Ah • 5.12kWh rated capacity 6000+ cycles @ 80% DoD Advanced BMS with CAN/RS485 communication Built-in aerosol fire extinguisher Compact wall-mount design (640×380×160mm, ~45kg) Excellent compatibility with Hinen Combo Benefits: Strong, reliable loadshedding backup Excellent solar self-consumption & bill savings Near-instant seamless power transfer Quiet, compact & expandable system 10-Year Warranty Perfect for medium homes wanting performance, safety, and peace of mind. Special Promo Price R18 343.00 Vat Included Delivery Excluded Contact us for Powerforum member pricing & stock availability Contact Details: Email: [email protected] WhatsApp / Call Steve: 074 218 9845 Landline: 021 276 2975 How to Order: Visit www.powerforum-store.co.za Powerforum Store or reply to this post / send enquiry. Nationwide delivery & installer recommendations available. Powerforum members get priority support and community expertise. Limited stock at promo pricing Act fast! Support us so we can continue to serve you and provide this awesome platform.

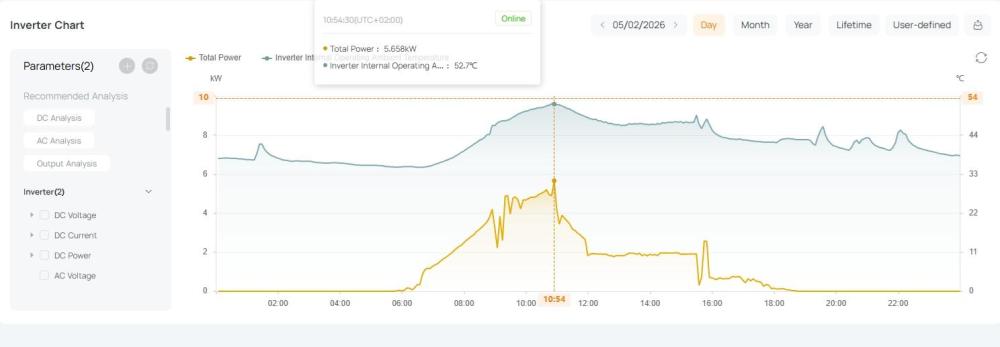

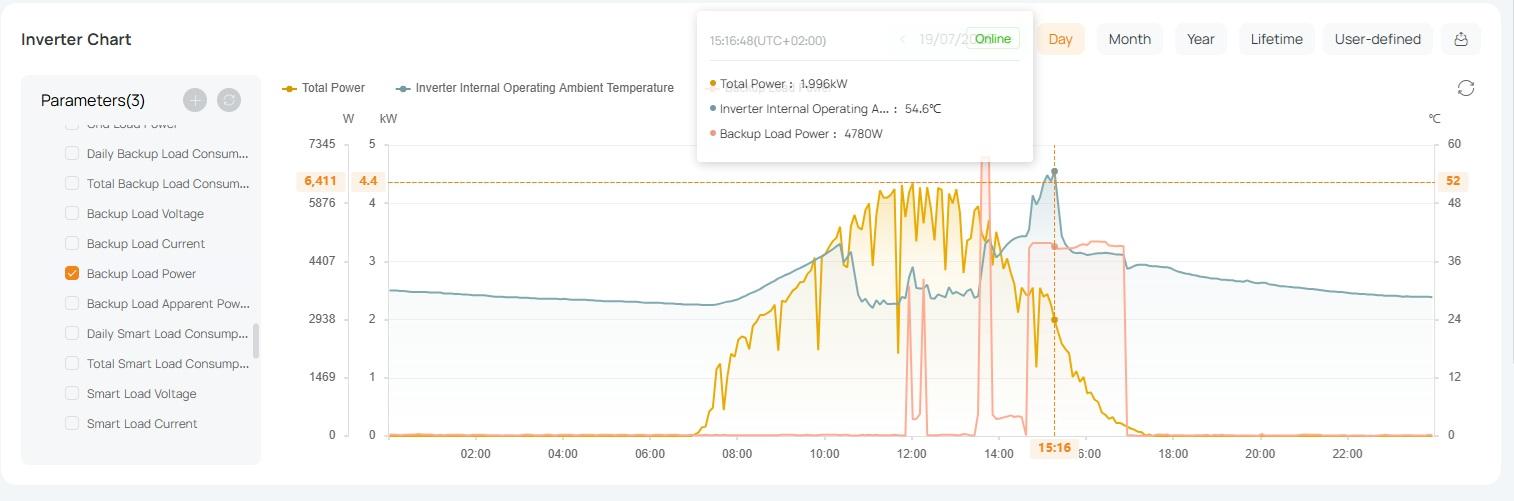

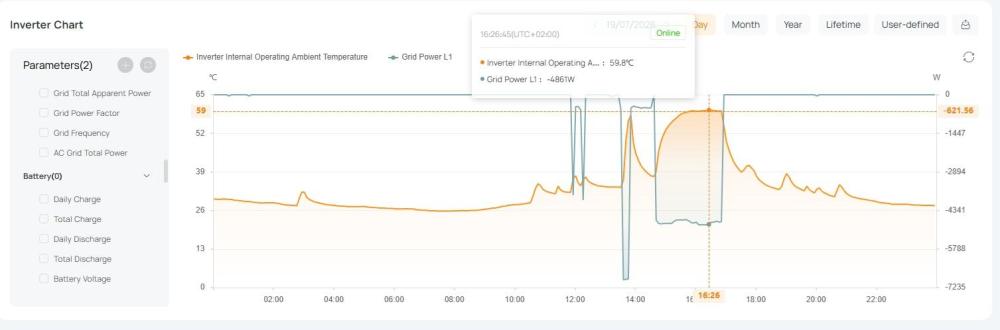

30 Degrees Celsius ambient Solis S6 6KW Pro Tier 1 Inverter IGBT Core temp Historical Data I did a Heavy load test yesterday ran the inverter at 4.8 to 4.9 KW load for 2 hours ambient temp was 27 degrees peak temp reached 59.8 Degrees note how fast the temp stabilised after the heavy sustained load In my opinion this is excellent heat management and performance the inverter did not derate during this test and generated no error codes or warnings it simply handled the load and managed the heat generated. Some real world data. By Contrast the S6 8KW Pro Tier 1 Inverter with active cooling same conditions as the 6KW unit shows the difference the active cooling makes vs passive note the temperature shown is IGBT Core temp typically 20 to 25 degrees Celsius higher than ambient internal temperatures.

This Offer is still available!

This Special is still available !

Hello @PtaSolar You are welcome to contact me directly I can give you sound advice on what reasonable options there are to choose from I am currently busy reviewing some pretty awesome batteries however in the current market there is a lot too choose from. You can email me at [email protected] or just pop me a whats app on 0742189845

@SolarDeity Maybe you could advise the user.

Hi Gareth and anyone following this thread, Thanks for posting the details on your new Solis S6 Pro 6kW installation. This is a very common question with the S6 series when people first put a high-draw non-essential load (like your 3.3kW oven) on the grid side. Good news first: There is zero risk of damaging the inverter. What you saw is normal behaviour the inverter is simply prioritising your own PV and battery before pulling from the grid. It's doing exactly what it should in a properly configured hybrid system. Here’s the correct way to set it up for your scenario (no grid export, oven on mains/non-essential side): Recommended Settings (Self-Use Mode – Best for SA Homes)Via Inverter Screen or SolisCloud App: Work Mode Set to Self-Use (this maximises self-consumption). Export Power Set (Zero Export): Enable Zero Export / set Max Export Power = 0W. Grid Peak Shaving: Enable the switch. Set value to 3000–5000W (start with 4000W and adjust). This limits grid draw. Anything above that (e.g. your oven) gets topped up by PV or battery exactly what you want for savings, without exporting. Battery Settings: Battery Reserve SOC 20–30% (inverter won’t discharge below this for loads). Allow Grid Charging On (if you want off-peak charging). Peak Shaving works together with Self-Use. CT Clamp Direction (most important check): Arrow on CT must point towards the grid/utility. If reversed, you’ll get weird backfeed/export readings. Expected Behaviour After These Settings Oven on Inverter uses PV first, then battery (down to reserve), then grid only if needed. No power exported to the municipality. During loadshedding: Oven goes off (as it’s non-essential), essentials stay powered. Better Long-Term Option Use the Smart/Gen Port If you don’t want the oven draining battery at night, move it (or other big non-essentials) to the Gen/Smart Port: Can be configured as a second backup. Set rules like “only power when battery >90% + excess PV” or disable below certain SOC. Many S6 Pro users do this for geysers, ovens, pool pumps, etc. Would highly recommend your installer checks the CT placement and updates the firmware if needed. SolisCloud gives excellent real-time flow diagrams screenshot those if you want us to review. These inverters are excellent once tuned. You’ll see great self-consumption numbers with this setup. Any questions or need help with specific menu screenshots, just post them here. Happy to assist! Regards, PowerForum Store Team

@Moffat @JasonJ Is the technical support person for @Solis Inverters SA Please engage with him directly to resolve the issue.

Hello @HennieL the date will be determined by the interest and interaction of the members. The draw gets decided by a Random Number generator however to qualify is clear on the post by the forum admin @Energy-Jason We do not share your data with any 3rd party unless you give us express permission and we follow the POPIA act stringently and typically we will only share 3rd party info if it is linked to after sales support we do not sell our database to anyone and only use it for the intended purpose. I hope this clarifies everything Regards @Powerforum Store

Hello @The PC Man You Are Based in Normanton, Queensland I assume? You have a couple of options you can see if you can source a SOLIS S6 Hybrid inverter that supports battery backup and you can ac couple your micro inverters to the AUX port on the SOLIS Hybrid. If your micro inverters respond to frequency shifting. Or you could look at this product https://luxpowertek.com/luxpower-inverter-acs3600/ I hope that helps Please give us some more information of the exact system.

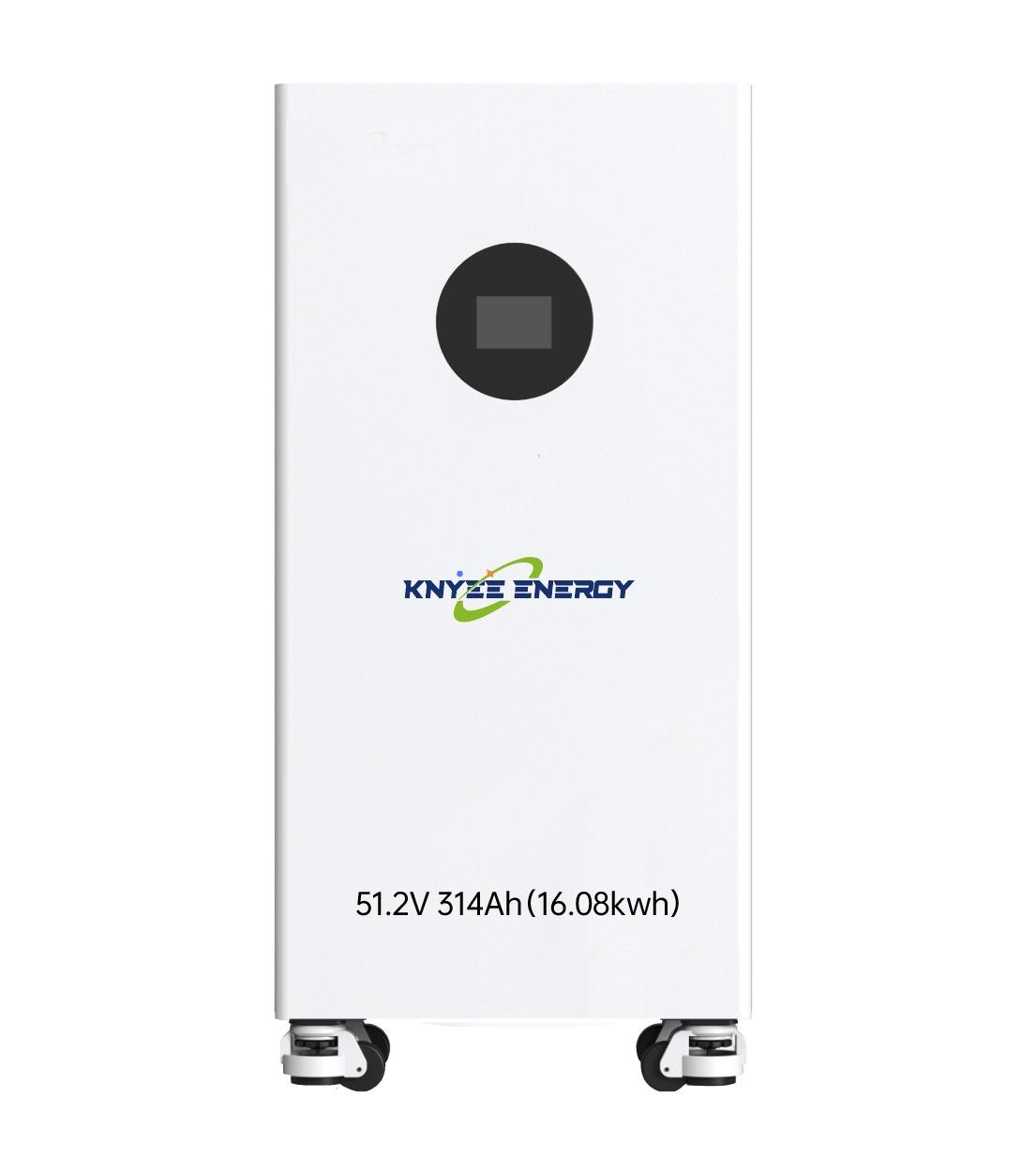

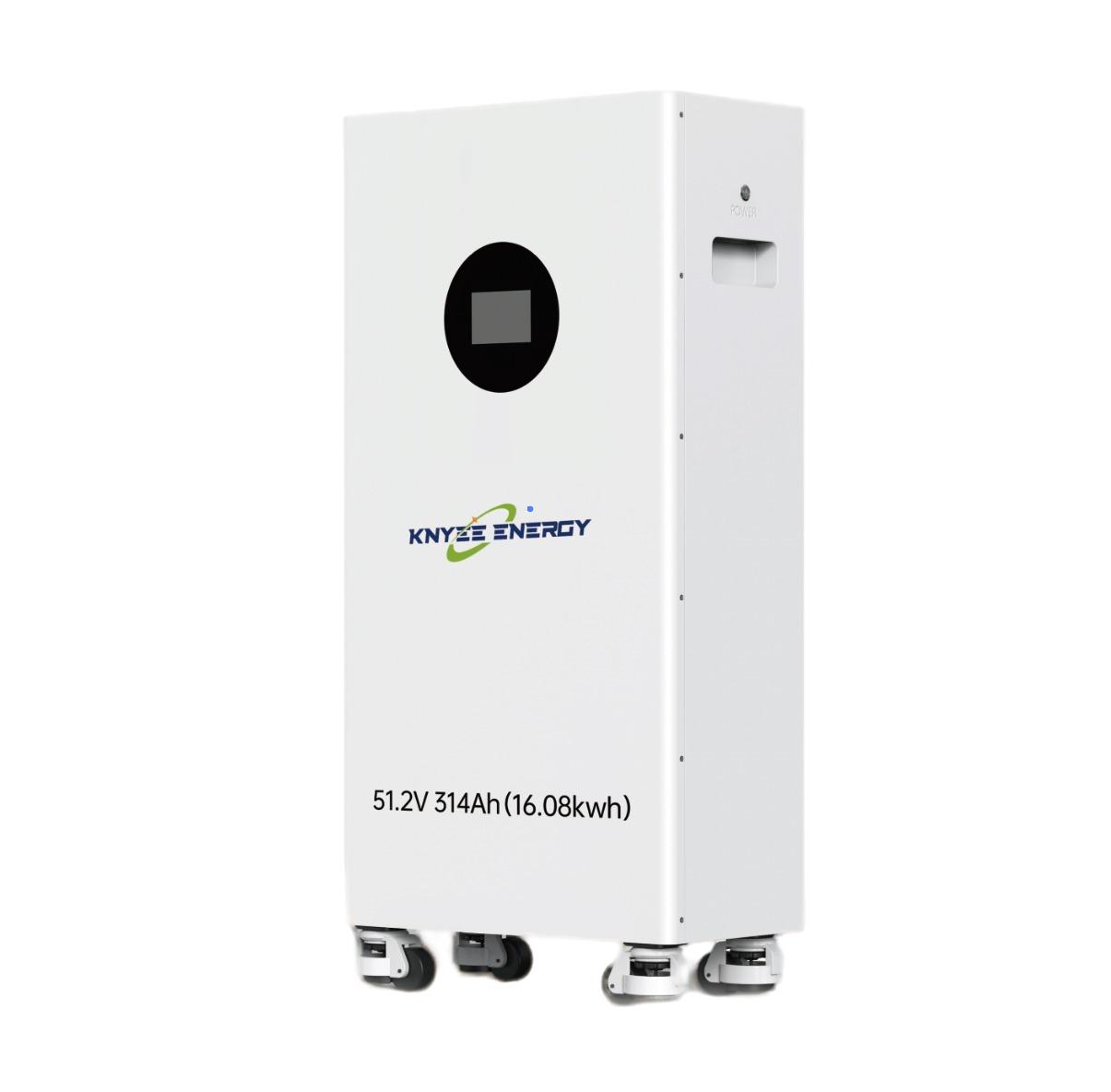

Here is my official first impressions review. KNYEE ES-LV-16.pdf Note the battery is heavy 130KG box included need two to three people to unpack. Very well packaged in a solid wooden crate with internal packaging. The battery comes with the following: Paper Manual which I like. Wall securing brackets 3.BMS cable which I did not even need to use used the standard Solis BMS comms cable Decent Battery Cables 50mm2 very impressed with them. Small QR code ( Do not use this QR Code) Here is the correct one. My Setup: Main system: Solis S6 8kW Pro Hybrid (master) with a Solis S6 6kW Pro seeing the 8kW as “grid” AC-coupled: Enphase micro-inverters + Solis S5 4.6kW grid-tied inverter on the Aux port of the 8kW Wind: 2kW wind turbine on the Solis S6 6kW MPPT in constant voltage mode Separate testing: Solis 5kW Off-Grid inverter Existing battery bank: 7 × Hubble AM2 (mixed ages – oldest >5 years old) New battery: Kynee ES-LV-16 16.08kWh (51.2V 314Ah) Monitoring: Kynee App + Solis Cloud + Cloudlink (for real-time inverter data) Physical & Build Quality For a 16kWh battery this unit is surprisingly compact and well designed and value for money. Dimensions: 900 × 460 × 245 mm Net Weight: 115 kg Clean white sheet metal enclosure with a front touchscreen. The wheels are high quality and make moving the unit very easy. Standout Safety Feature The built-in Aerosol Fire Extinguishing Device is a major highlight. This is the first time I’ve seen this as a standard feature on a low-voltage residential battery in this capacity range. Excellent added safety for indoor installations. Advanced Smart BMS with WiFi & Bluetooth Full Bluetooth + WiFi connectivity with its own dedicated app. I’m using the Kynee App together with Solis Cloud + Cloudlink for realtime inverter monitoring. Standout capability: You can select different BMS protocols directly in the Kynee app.Here is the CAN protocol selection screen from the app: Supported protocols include: PYLON_CAN, GROWATT_CAN, VICTRON_CAN, GOODWE_CAN, LUXPOWERTEK_CAN, SMA_CAN, STUDER_CAN, SE_CAN, SRD_CAN and many more (RS485 options also available). Key Specifications Basic Information. Nominal Voltage: 51.2V DC Voltage Range: 44V – 58.4V Nominal Capacity: 314Ah / 16.08kWh Max Parallel: 32 units Cycle Life: 8000 cycles @ 80% DoD (25°C) Charge / Discharge Recommended: 100A Maximum: 200A Protection & Features Advanced active BMS Built-in aerosol fire suppression system Touchscreen + Bluetooth + WiFi remote monitoring Full protection suite IP20 | Charge 0~55°C | Discharge -20~60°C First Impressions & Future Plans Installation was straightforward and very easy. The battery came online immediately, protocol selection worked perfectly, and it is communicating well with the Solis system showing a lot of information. Build quality feels solid and the active BMS is balancing cells nicely. The Battery BMS ap is excellent and offers a mass of information from cell voltages on each cell temperatures ect. It also has self test modes and a host of functions and features via Bluetooth and Internet tech support can log into the battery remotely and make adjustments some functions are password protected for good reason. Some info of note the design size of the pack is 16KW at 51.2VAC the true capacity of the pack is actually 17.6 KWH under promising and over delivering. Also note 0 Cycles... I will be doing both short-term and long-term review of this battery with various different tests including full capacity testing, daily cycling with solar + wind, performance, high discharge, efficiency measurements, and extended real-world monitoring. Exciting News: Our distributor partner Solar Energy Distributors and the sponsor of the review unit has kindly offered to give away some Kynee battery units in a lucky draw for active newsletter subscribed members in South Africa. Details on how to enter will follow soon.I’ll keep this thread updated with real data, screenshots, charts and findings as I go. I have some very nice things to share but will do it in the process of the product review. For now first impressions I will also share the unboxing pictures etc in another post on this thread. Any questions or specific tests you want me to include? Let me know below.Cheers! PS the battery is for sale here

Makes sense. Let us look forward to better support from all manufacturers this could be encouragement for others. Thank you Jason!

Hi @demaniak Equalization Disabled / Off (not needed for LFP). Batt Resistance Leave at default / 0. Stick with the voltage settings I gave earlier. Your BYD modules have their own BMS for balancing no need for inverter equalization.Let me know how it performs. Regards @Powerforum Store

Hello everyone I got all the different configurations from Hubble Energy Today so I will be doing all the different tests etc. Itching to get into it. I will do some block diagrams as requested by @Yellow Measure Any other feedback or questions would be appreciated. Will update as soon as I have done the first test mixing different chemistries and then different pack sizes.

Hello Everyone,Generator integration on the AUX Port or grid side of the Solis S6 works very well when done correctly. A few critical points: If the generator is smaller capacity than the inverter, you must use an inverter generator pure sine wave with stable output. If you are not using an inverter based generator, the generator needs to be much larger than the inverter’s demand. Even though the Solis applies load evenly, cheap conventional generators fluctuate too much in voltage and frequency. The Solis will reject the “dirty power” and trip or refuse to connect. Very important!!!!! Proper earthing is non-negotiable: The generator must be properly earthed and share the common earth of the system. The neutral-earth bond on the generator side must also be done correctly, otherwise you risk elevated voltages on the AUX port that can damage the inverter. Make sure the Solis settings are configured properly: Smart Port set to Generator mode Maximum generator power limit entered so the inverter doesn’t try to pull more than the gen can supply If the installer is back on Monday, get them to check the above plus the port settings in the Solis app/cloud. We’ve seen reliable operation (charging + load support) when these rules are followed.

Hello Everyone, The core issue here is not with the Solis inverter hardware or firmware it’s with what data the battery’s BMS actually sends to the inverter via the CAN bus. Why Freedom Won eTower shows limited information: The Freedom Won BMS only transmits a limited set of data points to the Solis basic SoC, voltage, current, charge/discharge limits, etc. Detailed parameters that Moffat is looking for such as individual pack cycles, number of battery modules in series, core strings, and granular per-module data are simply not being reported by the Freedom Won BMS in the CAN messages for the Solis profile. Solis can only display what the BMS sends. If the BMS doesn’t include that data, the app and web portal will show blanks or incorrect values e.g. fluctuating cycle counts. Freedom Won would need to release a BMS firmware update that expands the CAN data set for Solis compatible profiles. This is something they have done in the past for other issues. Kynee batteries for example: Kynee batteries use a more advanced/smart BMS that actively populates all the available fields that Solis supports including detailed cycle information, module counts, etc. Their BMS is better aligned with the richer data protocol that Solis expects, so everything shows up correctly on the Solis Cloud app and portal. Note on other popular brands: Some other popular battery brands also show similar limitations with detailed data on Solis it ultimately comes down to how comprehensive their BMS implementation is. Point is: Solis inverters rely heavily on the battery manufacturer’s BMS to supply rich, accurate data. When the BMS is comprehensive like Kynee, you get excellent visibility. When it’s more limited as with the current Freedom Won eTower, you only see what the BMS provides. Freedom Won has a good track record of resolving these things via remote firmware updates it might be worth tagging them directly or contacting their support to request an expanded Solis CAN profile. Here are a couple of examples of BMS Reporting on the Solis Cloud and you will note the many different and incorrect bms reporting issues this spans over 4 Battery brands on different sites. Some report battery pack count incorrectly others report Battery capacity incorrectly or temperatures incorrectly the point is the Battery BMS dictates what values are reported.

Hello @demaniak If you look at my old AM2 bank, those batteries are between 3 to 5 years old and still going strong. They get cycled every single day and the whole bank is still sitting at 99% SOH same brand as the new models. The one AM2 that Hubble Energy identified as faulty will be repaired without too much hassle they’ve done this successfully for many customers before. The Cloudlink is a big advantage here because Hubble’s technical team can do in-depth remote diagnostics to quickly identify any issues. Hubble Energy did go through a period where after-sales support was a challenge, but that is history now. The company has turned things around strongly. They now have proper service centres in Cape Town, Johannesburg, and Durban, and their warranty plus support is among the best in South Africa. On the performance side, the stats are looking very favourable. The modern LFP chemistry has improved a lot, and the AM5+ is performing excellently. I’m seeing round-trip efficiency around 97%, which is very close to the 98% lab figures often quoted for LFP remember there are always losses in the inverter and cables. I’m also noticing that the packs may actually deliver slightly more usable capacity than the sticker rating excellent value for money and it sets a high bar for the competition. The unlimited cycle warranty is also very appealing. They wouldn’t offer that unless they’re confident the batteries can deliver over 10 years. I’m currently building up more data and will post detailed graphs and test results soon. The AM5+ is busy with load and stress testing on the 6kW Solis perfect for hammering it properly, while the AM16+ is sitting at 100% SOC ready for the parallel tests with the AM5+. Only a pleasure to share always interesting things to discover.

Yes 100% Correct and it includes a lot of extras It's a whole Bundle for the price is a major bargain you can check online what these units cost.

Trina Solar Vertex N TSM-NE19R N-type i-TOPCon | 625W | 23.1% efficiency | 210mm platform ✅ Up to 30W higher power than conventional modules ✅ Excellent low-light & temperature performance ✅ 25-year power warranty | Half-cut cells | High reliability Crazy Deal Price: R2.52 per Watt ex VAT Only R2.90 per Watt incl. VAT Includes FREE delivery ANYWHERE in South Africa (any quantity!) Example pricing (incl. VAT + delivery): 1 panel (625W) = R1,811 10 panels (6.25kW) = R18,113 Pallet of 36 panels (22.5kW) = R65,206 This is one of the best prices you’ll find in SA right now for these premium panels. DM or WhatsApp 074 218 9845 to order today! [email protected] 🌐 www.powerforum.co.za Power Forum Renewable Energy Store | By Powerforum.co.zaTrina Vertex N 625W Special – Delivered Anywhere in SA!Mono Multi Solutions0~+5WMAXIMUM POWER OUTPUT POSITIVE POWER TOLERANCE625WMAXIMUM EFFICIENCY23.1%Trina Solar’s Backsheet Performance WarrantyIEC61215/IEC61730/IEC61701/IEC62716/UL61730ISO 9001: Qualit @Powerforum Store Store Stock is limited grab it before the price goes back up! DT-M-0093 A Datasheet_Vertex_NE19R_EN_2024_A_web_0.pdf

Hello Everyone there has been a nice Price drop on this product

Hello Here is the link to the battery it includes the cable kit and wheel kit this is the retail price however this price may change later. The trade in values will be based on the cycle count of the old packs they have an battery analyser that they run on the battery to determine the value they will credit. Power Forum Renewable Energy Store | By Powerforum.co.zaPylon Fidus Plus16kWh 51.2V Li-ion IP65 With Wheels and C...Fidus Battery Plus With 51.2 V / 16 kWh, Fidus Battery Plus is an advanced residential and small commercial energy storage battery, engineered for high-capacity applications and long-term reliability.

AM5+ Testing Underway First Impressions Hello Everyone,I have now started testing the Hubble Energy AM5+.Setup was very simple and straightforward. It shares the same magnetic cover design that neatly hides the cables as the AM16+, and it uses the same LFP chemistry and voltage range. Quick notes so far: The LFP models AM5+ & AM16+ run at a slightly higher voltage range than my older NMC AM2 batteries. Cloudlink setup is very easy there are mobile apps for installation and configuration plus good online documentation. Got the battery to 100% SOC yesterday morning, ran it down to 37%, and am now charging it back up to generate solid charge discharge data. I’m currently running it as a single pack to monitor performance, temperature, etc. We’ve had very cold nights close to 0°C outside, but the battery area stays between 10 to 15°C at night and rises to 25°C during the day. Under higher charge rates, the battery’s internal sensors show only about 2°C above ambient nice and stable.I’ll cycle it down to around 15% with some heavier loads today, then take it back to 100% tomorrow. After that I’ll move on to the parallel testing with the AM16+.So far I’m not disappointed at all quality build and good real world behaviour. I will share more detailed graphs and findings as the testing progresses. Any specific things you would like me to focus on with the AM5+?

Hello You have a few options you can look at this offer or sell your old ones and look at the Kynee 16 KW we have on special or the Hubble AM16+ all solid options
