Nice one

If the Voc of each panel is for example 48V then you need only 2 in series. Each panel might be around 13A, in series the current remains the same. if the maximum solar charger rated current is 80A just make sure your strings don’t exceed 80A.

Ok cool

I equalised the SOC. thank you Coulomb.

The alarm is on the Old battery which l made the Master. Thank you, I will try that.

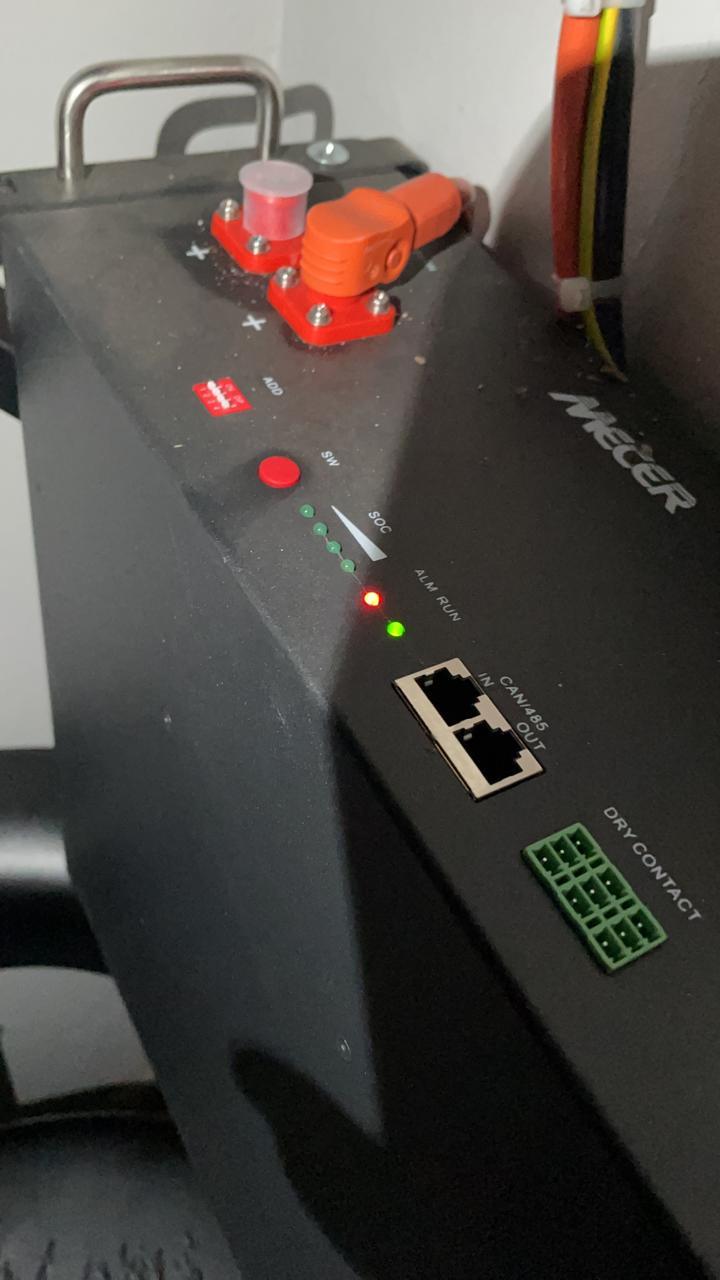

I have an installation with 1 Dyness 3.6kW battery & Mecer 5kW inverter. Now am adding the 2nd battery same spec as the other 1 and configured accordingly but the Alarm light & buzzer comes on when the 2 batteries are running. Old battery shows full on SoC and the new battery shows half on the LEDs. Will the alarm & buzzer go off after some time or there is an error. Any help is much appreciated. the Old battery on the installation is 3months old. TIA

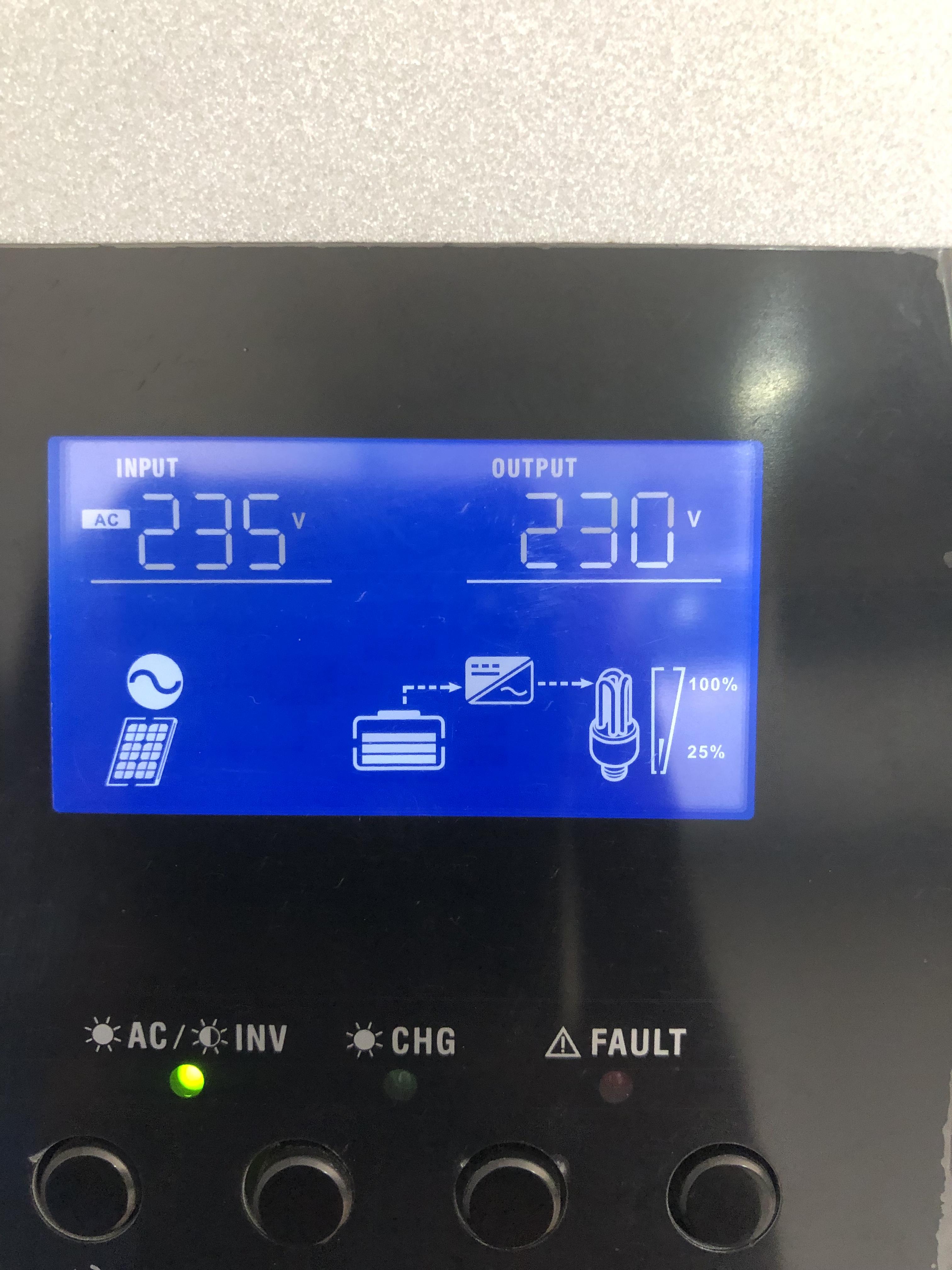

I have Mecer 5kW inverter & Mecer 3.6 kWh battery & 8 x 540W mono panels. the inverter is the 145V version. challenge is battery is flat but the inverter is detecting that it’s full. what setting do l use to correct that. see attached pics. thanks.

I don’t have any monitoring, planning to get 1 . I will check for the dip & freeze posts. thank you

It’s a lithium battery 3.5kW US3000

It’s a 145V model

You have a 145V model, This expert king will give 0V output PV on anything above 145V from solar to protect itself. connect your panels 2 in series and then the 2 strings in parallel. Don’t exceed the current rating on the inverter.

Good day what causes the Mecer 5kVA/5kW to cut off solar midday. Is there a setting am missing. my option 1 is Sol. I want a situation whereby during the day we use solar for loads and to charge the battery and only use eskom at night or when solar is not enough. thanks. Inverter is detecting my Pv voltage = 89V.

Hi, Is this through the raspberry pi? I am looking for this kind of monitoring. thanks

Hi @Tariq that’s like 75%, which l think Is perfect

Hi with 1 Li-ion battery US3000 and axpert Mecer inverter - the cat6 cable, do l need to connect that cable between the battery and inverter? thanks
