hi friends,can someone share with me a wiring diagram for a 3 phase 3x8kVa quattro inverter system?

On 2020/06/11 at 12:02 PM, Asto said:

3 phase 3x8kVa quattro inverter system?

There are a lot of info available on the Victron site, but for us to help you accurately, we would need more info.

You can find more info  here: https://www.victronenergy.com/support-and-downloads/systems#item=system-quattro and this document: https://www.victronenergy.com/live/ve.bus:manual_parallel_and_three_phase_systems  helped me a lot when I did my first 3 phase system.

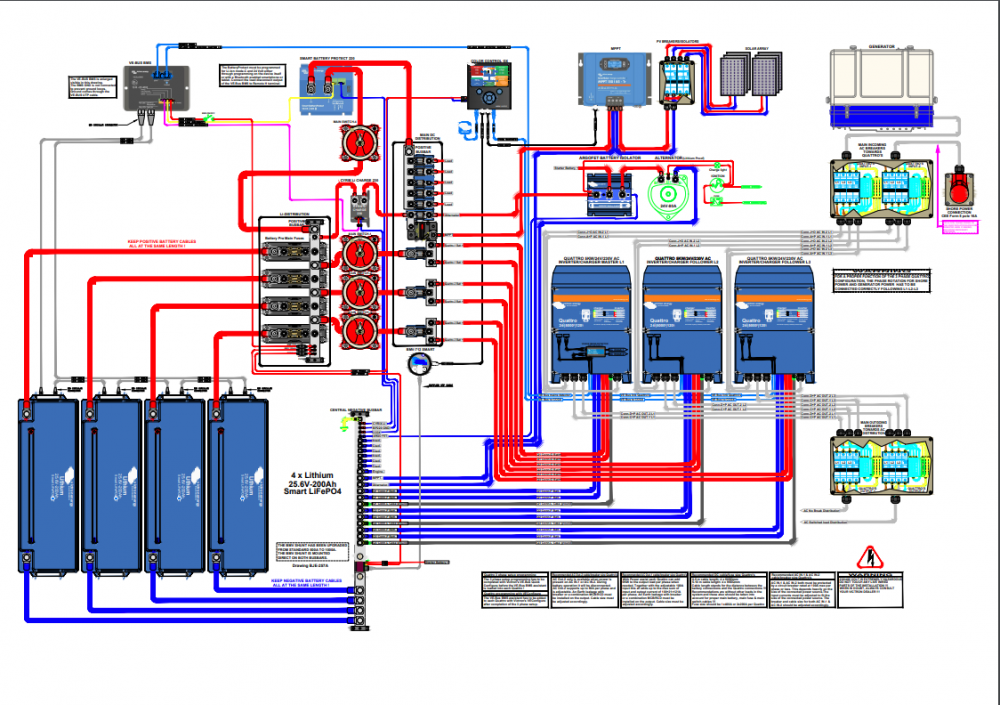

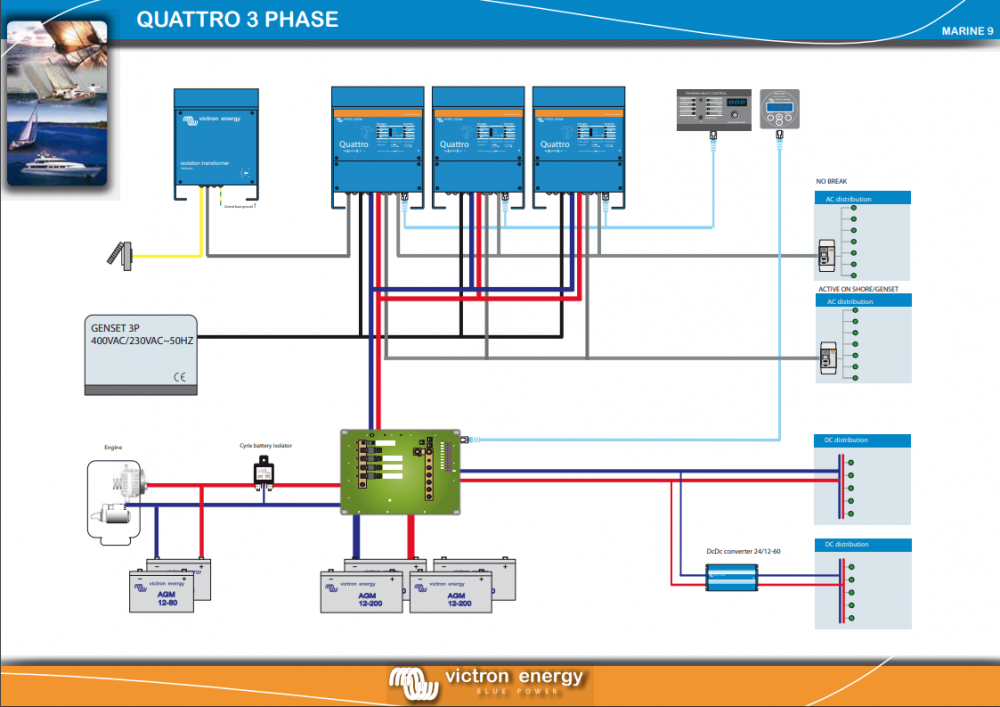

Some Victron Schematics:



Also read Margreet Leeftink's excellent e-book Wiring Unlimited.

Edit: Especially from page 55 onwards, where the 3-phase considerations are discussed.

Edited June 13, 20206 yr by plonkster

On 2020/06/13 at 6:22 AM, Jaco de Jongh said:

There are a lot of info available on the Victron site, but for us to help you accurately, we would need more info.

You can find more info  here: https://www.victronenergy.com/support-and-downloads/systems#item=system-quattro and this document: https://www.victronenergy.com/live/ve.bus:manual_parallel_and_three_phase_systems  helped me a lot when I did my first 3 phase system.

Some Victron Schematics:



Thanks for the information very helpful.

One more question, Are you using the cable pack US2000/US3000 supplied with Pylontech? If not ,how do you connect the Pylontech with a much thicker cable say 70mm2.This is for a victron -pylontech installation.

1 hour ago, Asto said:

One more question, Are you using the cable pack US2000/US3000 supplied with Pylontech? If not ,how do you connect the Pylontech with a much thicker cable say 70mm2.This is for a victron -pylontech installation.

I would use 2 cable packs, one from the first and 1 from the last battery in the stack. That will give you 70mm square all the way to the fuses, from there you need to run the correct size cable to each inverter
