November 18, 20223 yr Author 2 minutes ago, mihaigsm2003 said: yes, after erase chip, after write entire chip But how do i download the original firmware from the chip?
November 18, 20223 yr 8 minutes ago, Gilberto said: But how do i download the original firmware from the chip? Read back, entire chip after save data readed. after load data from me, write entire data (erase chip first to write)

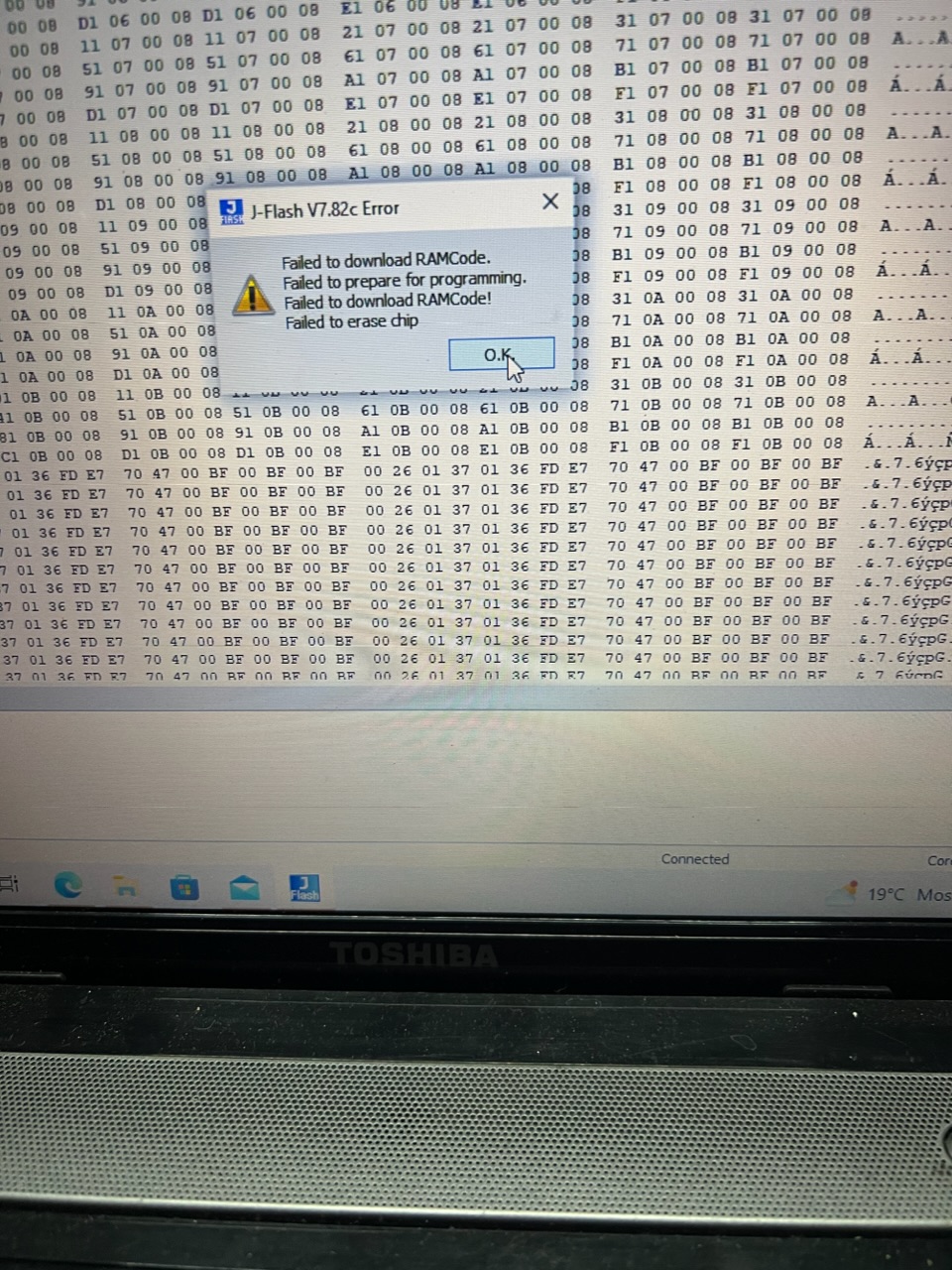

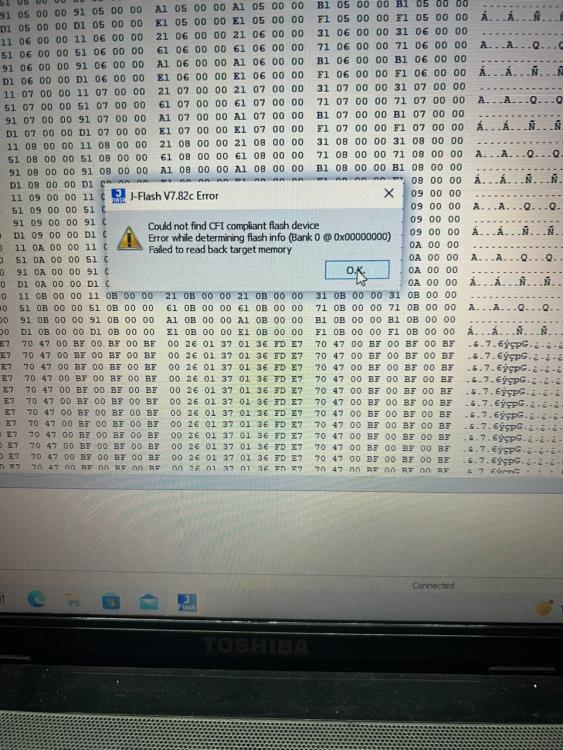

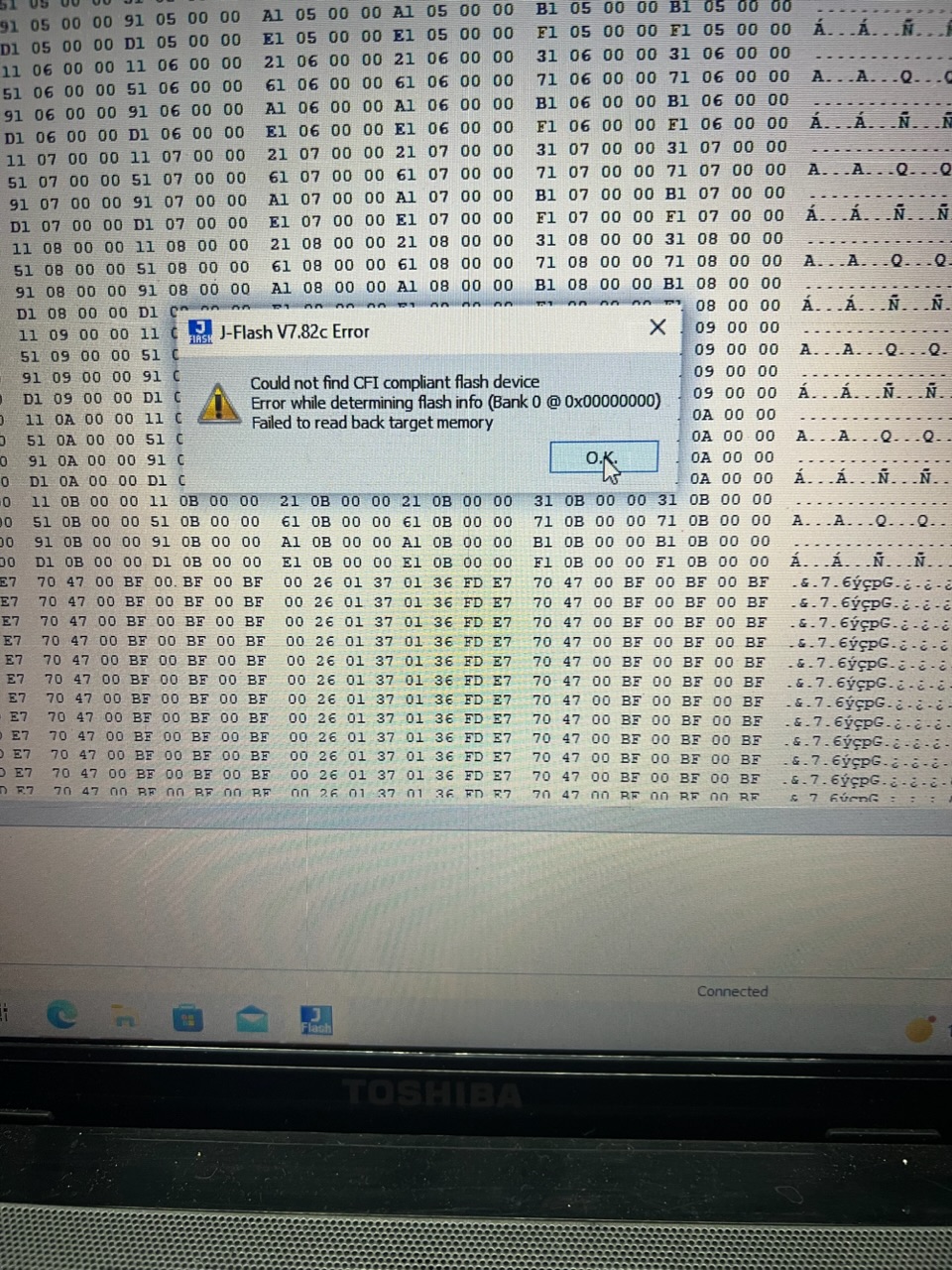

November 18, 20223 yr Author 2 minutes ago, mihaigsm2003 said: Read back, entire chip after save data readed. after load data from me, write entire data (erase chip first to write) Have this error
November 18, 20223 yr Author 17 minutes ago, mihaigsm2003 said: try write, maybe settings error or MCU faulty When I select the chip there are several GD32F105 like this: GD32F105xx where can I find the last letters?

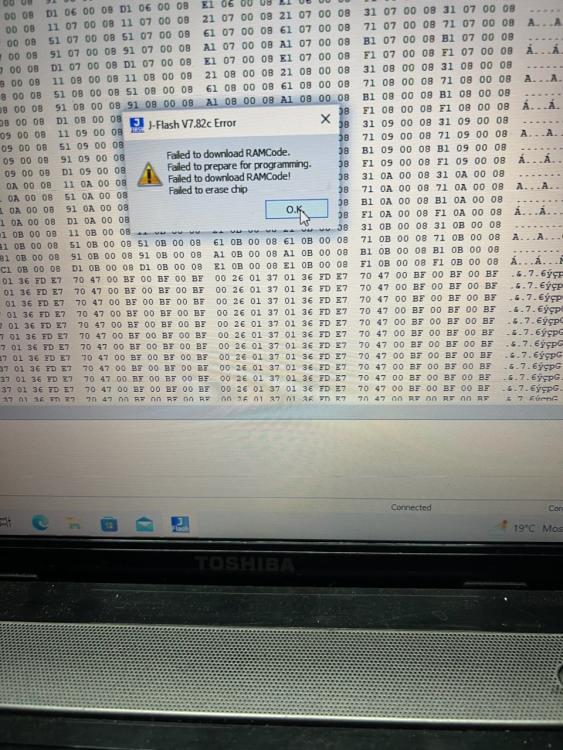

November 18, 20223 yr Author 26 minutes ago, mihaigsm2003 said: try write, maybe settings error or MCU faulty I can’t even erase
November 18, 20223 yr Author 2 minutes ago, mihaigsm2003 said: Is GD32F105VCT6 But I can’t find that one on the list. What I find is GD32F105VC but I can’t download or erase also
November 18, 20223 yr Author 1 minute ago, mihaigsm2003 said: Again i ask you, why need to write firmware on display? After I tried to update the control panel turned black

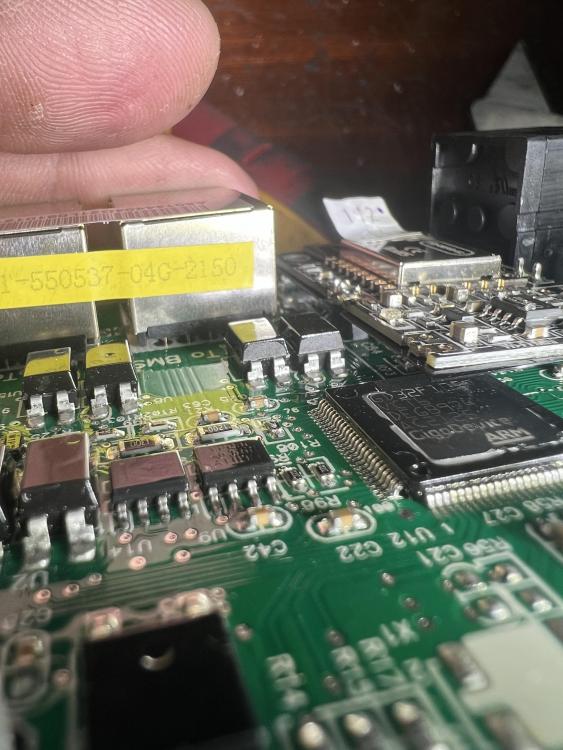

November 18, 20223 yr When you connect the interface to the display for programming, does any LED light up? that is, you have 3.3 volts, at the same time, did you make the settings correctly for that type of microcontroller? Maybe you need to supply voltage to the board, if I remember correctly I also used RST connected to the MCU. Jlink is a little more complex, and I have worked with it a little. This is pinout (this board have STM32F107, but same pinout)
November 18, 20223 yr Author 34 minutes ago, mihaigsm2003 said: When you connect the interface to the display for programming, does any LED light up? that is, you have 3.3 volts, at the same time, did you make the settings correctly for that type of microcontroller? Maybe you need to supply voltage to the board, if I remember correctly I also used RST connected to the MCU. Jlink is a little more complex, and I have worked with it a little. This is pinout (this board have STM32F107, but same pinout) I am using 3.3v and it does light up the Wi-Fi board.
November 18, 20223 yr Connect VTref to 3,3V on board or to Vcc on interface, Check if VCC on interface is 3,3V Use power from interface becouse reset MCU when do job Use SWDIO and SWCLK also maybe need reset pin to MCU (see datasheet for GD32F105)
November 18, 20223 yr Author 12 minutes ago, mihaigsm2003 said: Connect VTref to 3,3V on board or to Vcc on interface, Check if VCC on interface is 3,3V Use power from interface becouse reset MCU when do job Use SWDIO and SWCLK also maybe need reset pin to MCU (see datasheet for GD32F105) sucsess! ut it is not in hex file real original.jflash
November 18, 20223 yr Author 21 minutes ago, mihaigsm2003 said: Connect VTref to 3,3V on board or to Vcc on interface, Check if VCC on interface is 3,3V Use power from interface becouse reset MCU when do job Use SWDIO and SWCLK also maybe need reset pin to MCU (see datasheet for GD32F105) I have loaded your file and it write successfully. But the display still does not turn on

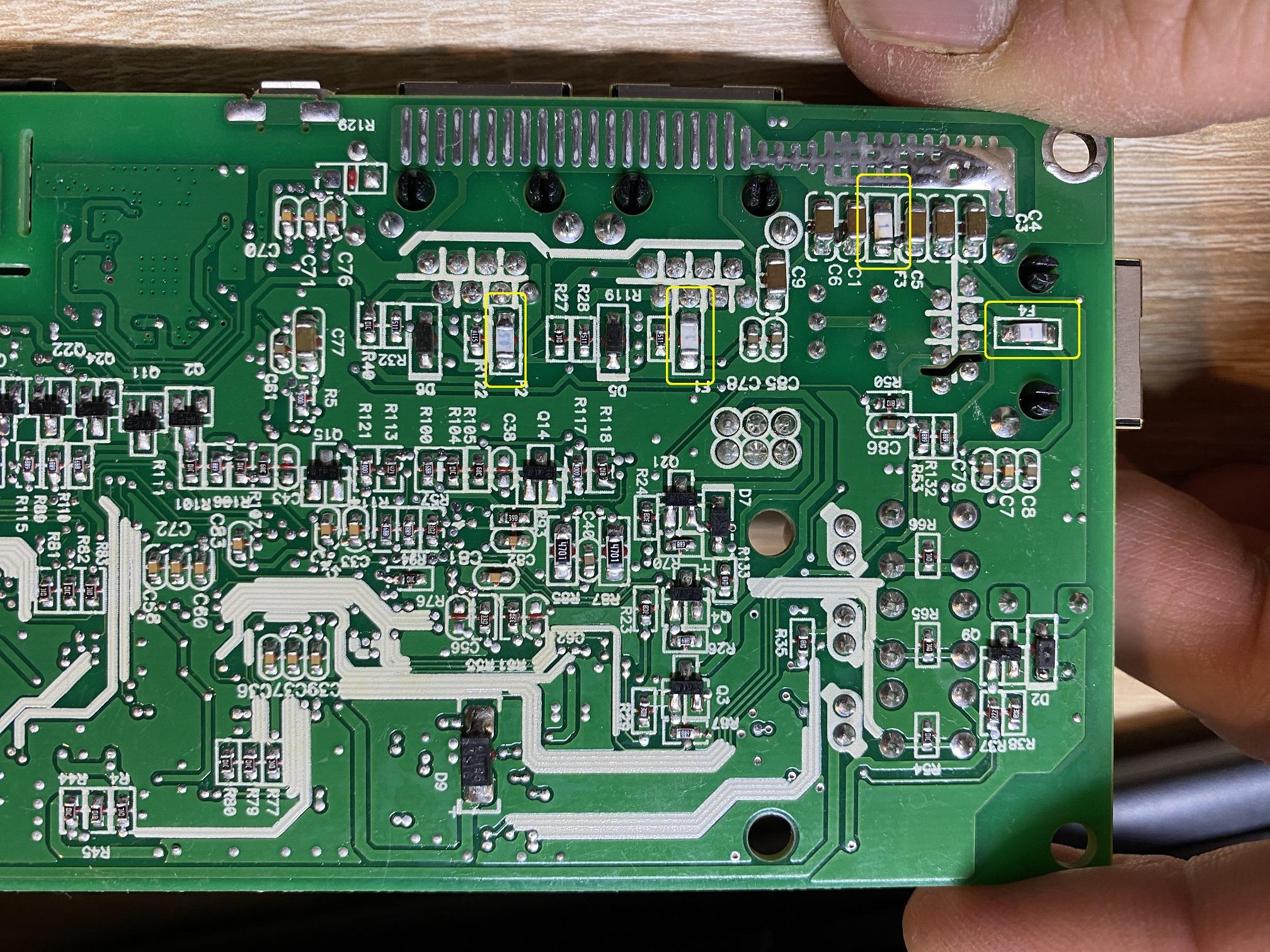

November 18, 20223 yr i add new file, try, also, check all fuse from board mrked with yelow. Maybe gd32 use other bootloader 25.05_GD32F305VET6.hex 02.70 display ok pyl.hex
November 18, 20223 yr Author 6 minutes ago, mihaigsm2003 said: i add new file, try, also, check all fuse from board mrked with yelow. Maybe gd32 use other bootloader 25.05_GD32F305VET6.hex 618.14 kB · 0 downloads 02.70 display ok pyl.hex 618.14 kB · 0 downloads Do I have to load the 2 files?

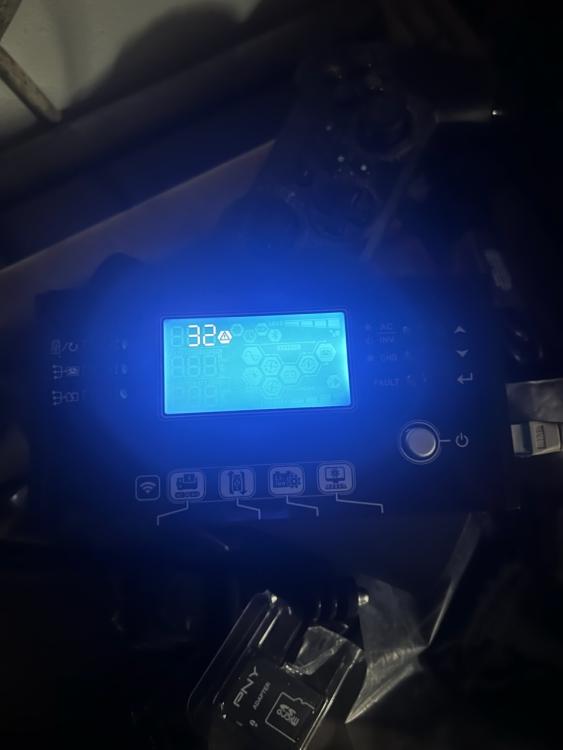

November 18, 20223 yr Author 10 minutes ago, mihaigsm2003 said: i add new file, try, also, check all fuse from board mrked with yelow. Maybe gd32 use other bootloader 25.05_GD32F305VET6.hex 618.14 kB · 0 downloads 02.70 display ok pyl.hex 618.14 kB · 0 downloads It now turns on with 1st file! Gives me error 32
November 18, 20223 yr Author 11 minutes ago, mihaigsm2003 said: i add new file, try, also, check all fuse from board mrked with yelow. Maybe gd32 use other bootloader 25.05_GD32F305VET6.hex 618.14 kB · 0 downloads 02.70 display ok pyl.hex 618.14 kB · 0 downloads
November 18, 20223 yr Firmware is for offgrid, inverter work? get power? Now can update with official good firmware via serial cable, don't push DSP button Edited November 18, 20223 yr by mihaigsm2003
November 18, 20223 yr Author 1 minute ago, mihaigsm2003 said: Firmware is for offgrid, inverter work? get power? The inverter only spin fans and red light
November 18, 20223 yr Author 18 minutes ago, mihaigsm2003 said: Firmware is for offgrid, inverter work? get power? Now can update with official good firmware via serial cable, don't push DSP button U know where I can got official firmware? For easun 8kw off grid
November 18, 20223 yr 32 minutes ago, Gilberto said: The inverter only spin fans and red light u try update U1? DSP firmware, Inverter can work witout display If u try update DSP firmware this is big problem if invertor not get power on load What model of inverter 8k? Try this firmware for display Remote Panel_Reflash_MCU(112.19)_MAX.rar
November 18, 20223 yr Author 6 minutes ago, mihaigsm2003 said: u try update U1? DSP firmware, Inverter can work witout display If u try update DSP firmware this is big problem if invertor not get power on load What model of inverter 8k? Try this firmware for display Remote Panel_Reflash_MCU(112.19)_MAX.rar 862.72 kB · 1 download Finally! Is this last update?
November 18, 20223 yr this i have, maibe not last... Don't use inverter witout battery! Can destroy hardware good luck!
