8 hours ago, Coulomb said:

Could you post a screen dump, please? That photo is extremely hard to read.

I see you found some software; which one?

You seem to be powering the display board, at least the 3.3 V part of it. My guess is that you haven't connected the wires correctly (3.3 V and ground must be correct, so it would be the other two), or you need to try the other protocol. I don't know ARMs at this level. It's possible that it just doesn't know the GD chip.

Can you set the device to an STM32F105, perhaps in the drop down box in the toolbar?

I have set to stm32f105 and still error. I have checked wires

7 minutes ago, mihaigsm2003 said:

Use GD-Link for GD32, not work with ST-Link, also need aplication for GD32

i programmed GD device with jlink interface

Thanks for the help. Will this one work?


Yes, can try

2 hours ago, mihaigsm2003 said:

Yes, can try

Ok going to buy this one locally and try tomorrow. Can u share steps?

Pls check first application if ur cpu is 100% compatible with this interface. I programmed stm32f103

1 hour ago, mihaigsm2003 said:

Pls check first application if ur cpu is 100% compatible with this interface. I programmed stm32f103

My processor is gd32f105

45 minutes ago, Gilberto said:

My processor is gd32f105

supported!



9 minutes ago, mihaigsm2003 said:

supported!

That’s great! Can u help me with the steps? What software I need. This is the 1st time doing this

10 minutes ago, mihaigsm2003 said:

supported!



That's great! Can u help me with the steps in doing this? What software needed? This is 1st doing something like this

1 hour ago, Gilberto said:

That's great! Can u help me with the steps in doing this? What software needed? This is 1st doing something like this

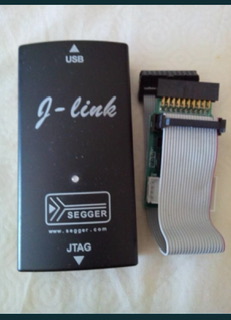

https://www.segger.com/downloads/jlink/

i am not working very much with this interface, only one time in one growatt ongrid

you have firmware to write in microcontroller?

2 hours ago, mihaigsm2003 said:

https://www.segger.com/downloads/jlink/

i am not working very much with this interface, only one time in one growatt ongrid

you have firmware to write in microcontroller?

Thanks! No I don’t have the firmware

13 hours ago, Gilberto said:

Thanks! No I don’t have the firmware

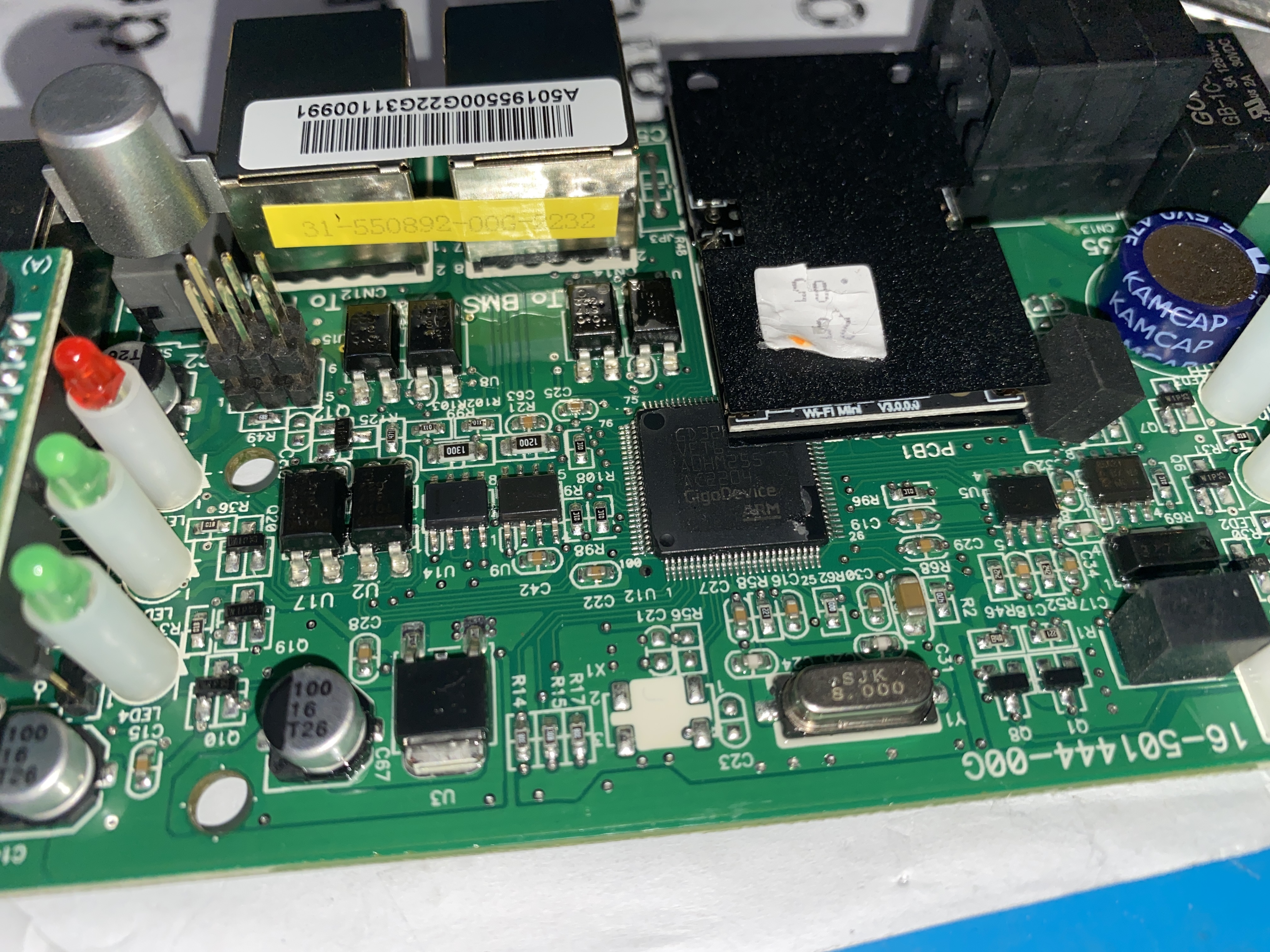

Ha ha, in this moment I received for repair display with GD32 😂😂

This is different MCU, is GD32F305VET6, but, i read firmware wit ST-LINK and Visual ST without any problem, i select STM32F107 and work good. This is display with touch buttons, not work for you, for you i think work firmware for STM32F107, and i have firmware for you.

49 minutes ago, mihaigsm2003 said:

Ha ha, in this moment I received for repair display with GD32 😂😂

Mine is the same as that one!

38 minutes ago, mihaigsm2003 said:

This is different MCU, is GD32F305VET6, but, i read firmware wit ST-LINK and Visual ST without any problem, i select STM32F107 and work good. This is display with touch buttons, not work for you, for you i think work firmware for STM32F107, and i have firmware for you.

Can u give me the firmware? Help me with the process?

3 hours ago, mihaigsm2003 said:

This is different MCU, is GD32F305VET6, but, i read firmware wit ST-LINK and Visual ST without any problem, i select STM32F107 and work good. This is display with touch buttons, not work for you, for you i think work firmware for STM32F107, and i have firmware for you.

I have recieved the jlink. How is the wiring to the control panel?

I think I have entered the chip. What now?

14 minutes ago, Gilberto said:

I think I have entered the chip.

Yes, that actually looks like the start of the bootloader. Well done!

15 minutes ago, Gilberto said:

What now?

Now you find the menu command to read the flash image, and save it to a hex file. Please post that hex file here as an attachment.

Nearby, you will likely find a menu command to read a hex file and program it to the device. But you'll have to carefully set things up before pressing the "burn baby, burn!" button. Also, we have to choose the right hex file for you to burn. I'll have to review your posts to make that decision.

first, do backup!

after, what is problem with ur display?

i put here full firmware with bootloader, after do backup, erase chip memory, and write this file

12.13_wifi_display_detasabil.hex

2 minutes ago, mihaigsm2003 said:

first, do backup!

after, what is problem with ur display?

i put here full firmware with bootloader, after do backup, erase chip memory, and write this file

12.13_wifi_display_detasabil.hex 618.14 kB · 0 downloads

Where do I do the backup?

41 minutes ago, Coulomb said:

Yes, that actually looks like the start of the bootloader. Well done!

Now you find the menu command to read the flash image, and save it to a hex file. Please post that hex file here as an attachment.

Nearby, you will likely find a menu command to read a hex file and program it to the device. But you'll have to carefully set things up before pressing the "burn baby, burn!" button. Also, we have to choose the right hex file for you to burn. I'll have to review your posts to make that decision.

Thanks. I am going to look at it now

44 minutes ago, Coulomb said:

Yes, that actually looks like the start of the bootloader. Well done!

Now you find the menu command to read the flash image, and save it to a hex file. Please post that hex file here as an attachment.

Nearby, you will likely find a menu command to read a hex file and program it to the device. But you'll have to carefully set things up before pressing the "burn baby, burn!" button. Also, we have to choose the right hex file for you to burn. I'll have to review your posts to make that decision.

I tink its this?

original.hex

To download is like this?

yes, after erase chip, after write entire chip

1 minute ago, mihaigsm2003 said:

yes, after erase chip, after write entire chip

But how do download the oriinal irmware rom chip?
