anthonyhugo

thanks! i'll check this much appreciated

Hi yes exactly, why?

Thanks, weird thing is the CT coil was not changed/moved (that I know of) during the upgrade but I should probably have it checked

Hi I have it connected to both of them

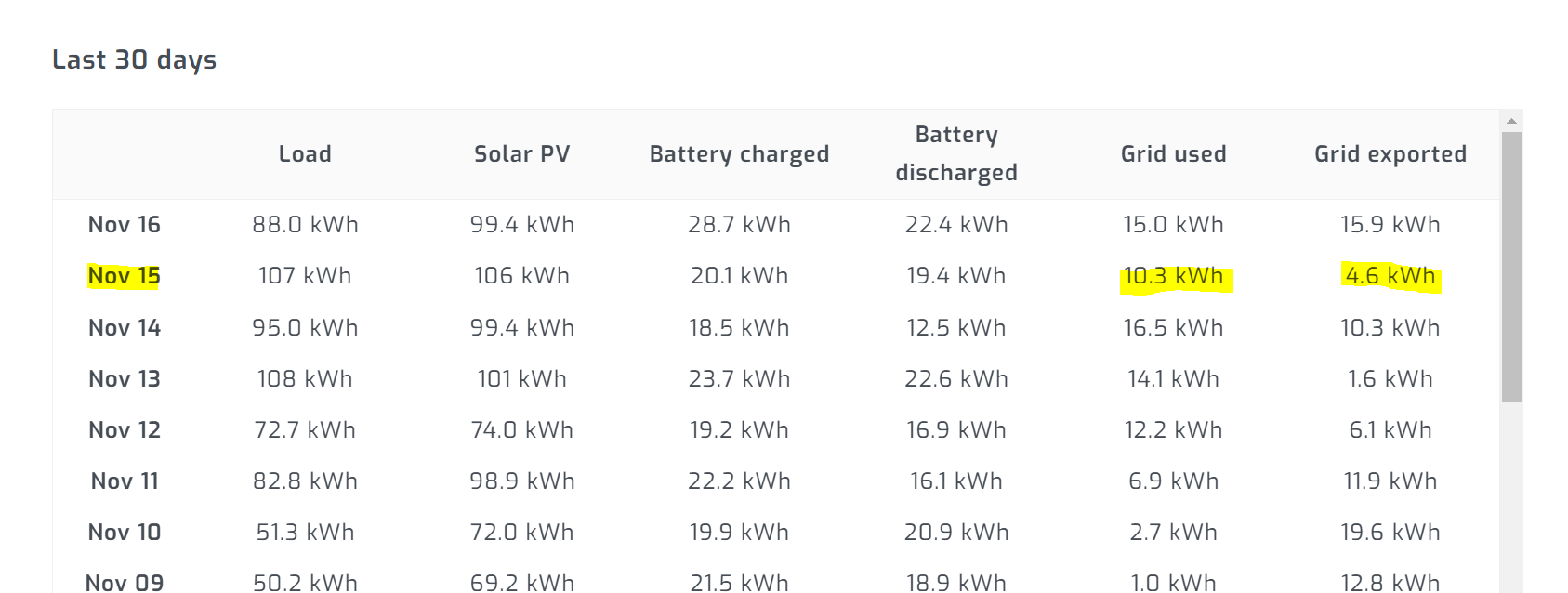

Hi guys We recently added another Deye 8kW inverter to our existing Deye 8kW system and some additional solar panels After the work the latest company did, when I monitor using solar-assistant, the Grid used and Grid exported is swapped? Please see, e.g. on Nov 15 we used 4.6 and exported 10.3...: What can be done/checked to fix this please? Many thanks Ant

Hi I've got 4 x of these?: Dyness 5.12KW Lithium Battery BX51100 Much appreciated!

Perfect thanks!

Many thanks @JayMardern, hope this looks OK (please see attachment)? And yup when we have load shedding or if I flip the main grid breaker the pool circuit has no current Question please: suppose A=essential load and B=non-essential load, if A+B > 8kW, will our inverter trip or only when A > 8kW? Thanks Ant

Hi guys, hope you can help me make sense of something please Apologies in advance if below writing is hard to read, just trying to state some facts - we have a Deye 8kW inverter - up to now our whole house was connected on load side (UPS?) - our swimming pool circuit at times contributes to about 6kW load (2 x 1.1kW pumps, heat pump, salt water chlorinator, etc.) - I decided that above pool circuit needs to be moved off the inverter and back on the grid as non-essential load - I wired a separate DB board with the pool circuit on and fed it from the grid - these grid wires also feed the Deye inverter BUT the pool load still shows as a load from the house on the inverter? Did I do above correctly? Is it a setting i missed? Could it be because of the CT coil? Many thanks for your advice much appreciated Thanks Ant

Hi we had a buzzer wired directly to Eskom which we manually switched on when starting our gennie and when load shedding was over it alerted us, we then switched off the buzzer when turning off the gennie I see you get change over switches with all this built in using a relay...

Ho guys, the way I "attached" it to my inverter was to print these 2 brackets and glue them to the fan enclosure (using my wife's nail glue haha) https://www.thingiverse.com/thing:6058451 Then on top of these 2 brackets I just put a scuba diving weight, it creates a cradle of sorts to put the weight, then this just sits on top of the inverter... Please don't judge my rudementary 3D design skills too harshly lol, I'm very noob at this (apologies don't have photo will try get one) Cheers Ant

Thanks all and thanks Scorp007 I'll relay the info much appreciated!

Hi all just to report back, all my issues seem to be sorted now and was as a result of a loose connection on the busbar between batteries and inverter! eish! We now double checked all connections and added new washers on both sides of the lugs to hopefully prevent this (I think they're called serrated star washers) My installer will have a stern talk to he's team, we're all human after all and mistakes happen, I'm just grateful this didn't cause a fire or damaged our equipment (it seems) Thanks Ant

Do you know if one can book a repair slot with Deye? Do they have a local repair shop or does the inverter need to be shipped?

Hello we have 4 x 5kWh Dyness batteries I checked all looks good but my installer will be coming to our house today to check as well, will revert with he's findings I checked continuity on the fuses between the inverter and batteries and they seem good The issue arises randomly in or out of LS
