Marie1

Hi Tinkerboy, sorry I've got behind with my work, and had to work! I've said to my husband we should get an electrician to take the kettle and microwave plugs of from the solar. I've noticed they are causing trouble. I havent looked at the reports yet, will do so during this weekend. The battery cables will get fixed this weekend. Will give an update by Monday! Thanks for asking.

Will do, try to do it tonight. Thanks Mark

Thank you guys, I left the midpoint out for now. Software sorted. Everything 100% , no smoke so far. Will you be able to see something on the graphs lets say late tomorrow? Or should I get info over a couple of days?

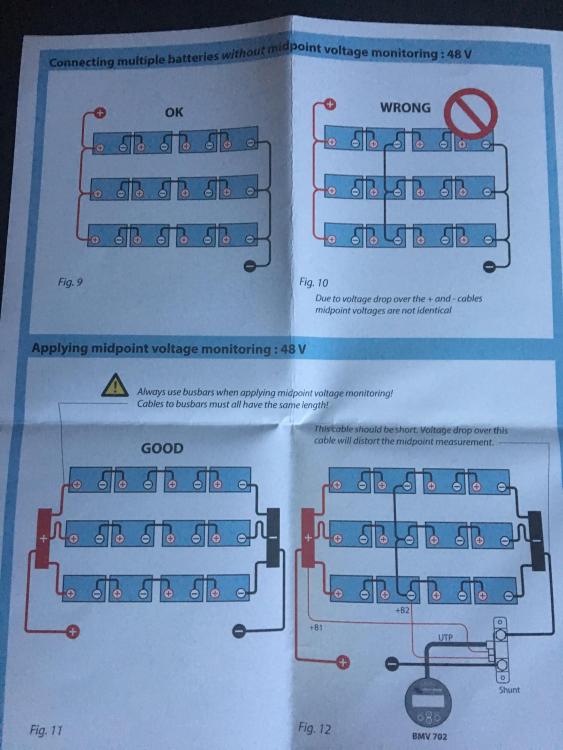

Thank you Chris, now I understand when you guys talk about "float" I've been struggling with the other two cables that came with the BMV (+B1 & +B2) our current battery setup is more towards Fig 9, where can I put those cables?

Batteries must be full? Is that now when the inverter tells me they are full? And from here I just let the software run?

Hi all, the monitor is now installed, now the midpoint cables... (I have someone helping me) When done, what do I have to change on the BMV settings exept the battery details (400ah), and I've read somewhere about setting the midpoint. I want to get everything ready for the night, so that I can take readings asap. I've fully charged the batteries from Eskom during the night,(according to Chris settings) changed the settings back at 9am, (when changing the settings back at 9am I've notice the batteries volts were 54, and not 56.4(so not totally full) Axpert showed system was on bypass till 1 this afternoon. Only start working then. I thought with the batteries full(or suppose to be full), system (available solar) will start at 9, when I changed the settings back. Anyways doesn't make sense to me, want to get the BMV and software running asap to sort out this problem. Got the cable to link BMV to software. Almost there!

Ha ha, I will do a lot of things, but the batteries and cables, I will leave for Saturday! How close should the monitor shunt be? The inverter are inside the house an the shed with batteries outside, with other words back to back with a wall inbetween. With the shunt inside under the inverter, it will be about 1meter from bank. Will that be to far?

The batteries are currently like this, the guy at the place where I bought the BMV said I should move the cables.(see green crosses in next pic) in the meanwhile untill Saturday when the new cables get installed. Want to confirm if it is correct.

Didn't get the 8x50mm cables, they didn't stock it. I have an electrician friend that can help me on Saterday.

Hi guys, got the BMV702, jayyy! I need help now, monitor set on factory value 200 Ah, should I set it to 400ah, which is the total size of our bank? See b):

I'm on my way to Somerset to fetch the BMV and VE direct cable. Also want to get the battery bank cables. The question: the cables(links) on batteries are 50mm, the 2 cables going to inverter are 35mm. I need 8x same lenght cables and 2 bushbars. Those 8 x1meter cables: should they be 55mm or 35mm?

I'm an accountant. My hubby buy's all this gadgets then teach me the basics on how they work so that I can "play" with them, when he's away, when he gets back I show him how his gadgets works and what they can do! That include Roku and Apple Tv, new cell phones etc. He calls me his google queen. I still have a lot to learn

Yes, that's it. And then I have another pc in my home office that connects to that tablet via teamviewer, that's why I asked if the software would or can work on pi, would be much easier.

Will do, thank you Chris!
