Peyper

Good day all, I hope someone can shed some light on my query below. I got a 3rd Solar MD 14.3 and a 3rd Victron Multiplus II 48/5000 installed in January 2024 the BMS was faulty and only repaired in May 2024. My initial installation was done November 2022 which consists of 2 x 14.3 Solar MD, 2 x Victron 48/5000 Multiplus II and Victron MPPT RS 450/200 with 11.2kw solar panels. The new battery does not discharge or charge at the same rate as my older 2 batteries. The installer assured me the cables are of the same length. I have 3 x Victron 48/5000 Multiplus II to charge the batteries from Eskom and Victron MPPT RS 450/200 with 11.2kw of solar panels. Is this normal that the newer battery will charge and discharge at a different rate? Capacity % is always different to what my older 2 batteries indicate, current in and out is aslo different. I have the Solar MD logger and I am able to view device history charts.

Hi, yes I use Carplounge BMS

Hi guys, I connected 2 x 12v 200ah Revovs in parallel in my bushlapa When in idle the one battery draws amps from the other battery. 2.5 to 3.5amps Positive from one battery goes to a Fuse then Positive busbar and Negative from the other battery goes to Victron Shunt (BMV 700) then to Negative busbar. Any advice will be appreciated.

Yes I used the Victron 75/15 for many years. The 100/20 will work.

@Tim003, I made it myself. Cheers,

Been using aircon at night and 4kw geyser from 04:30 - 05:30 in the morning The Big test will be in winter time 🙈

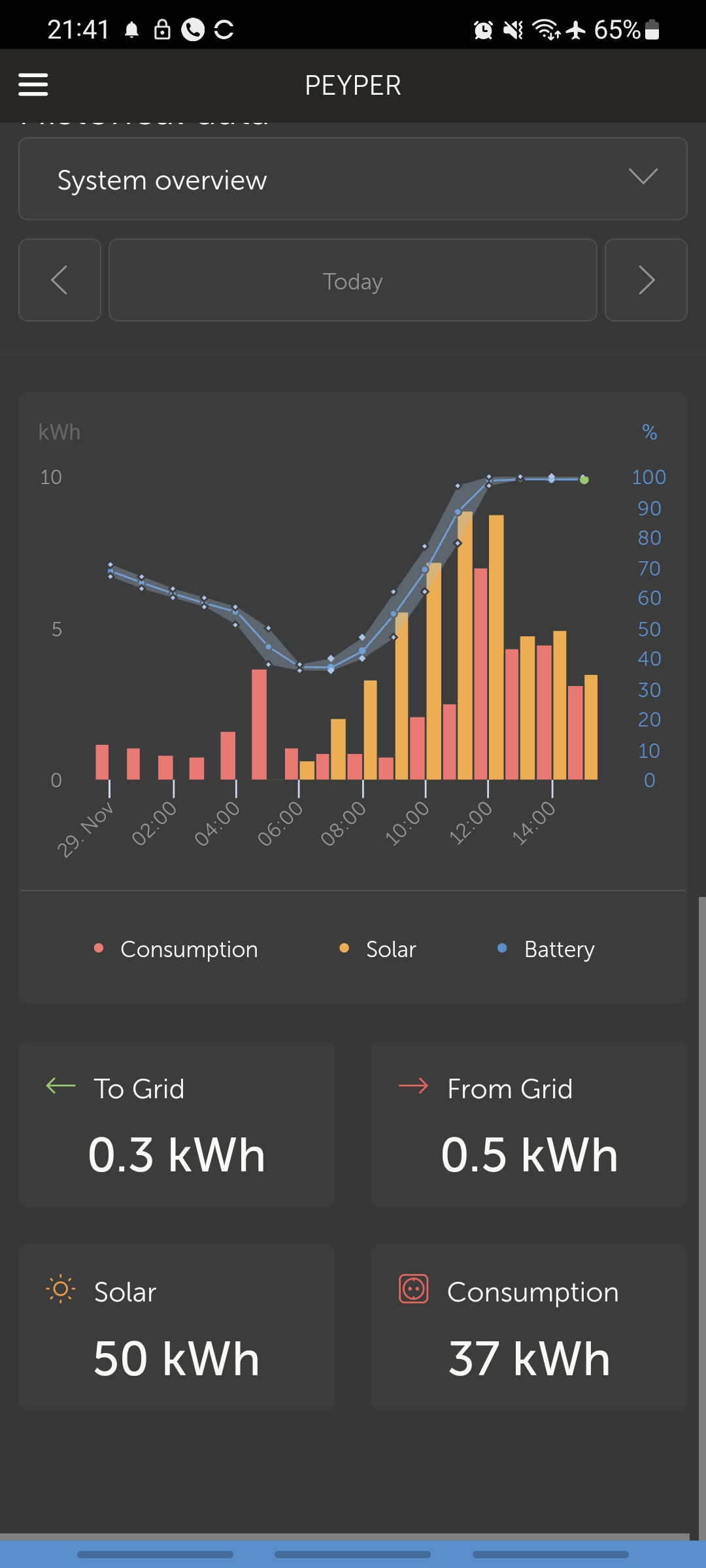

@ 15:51

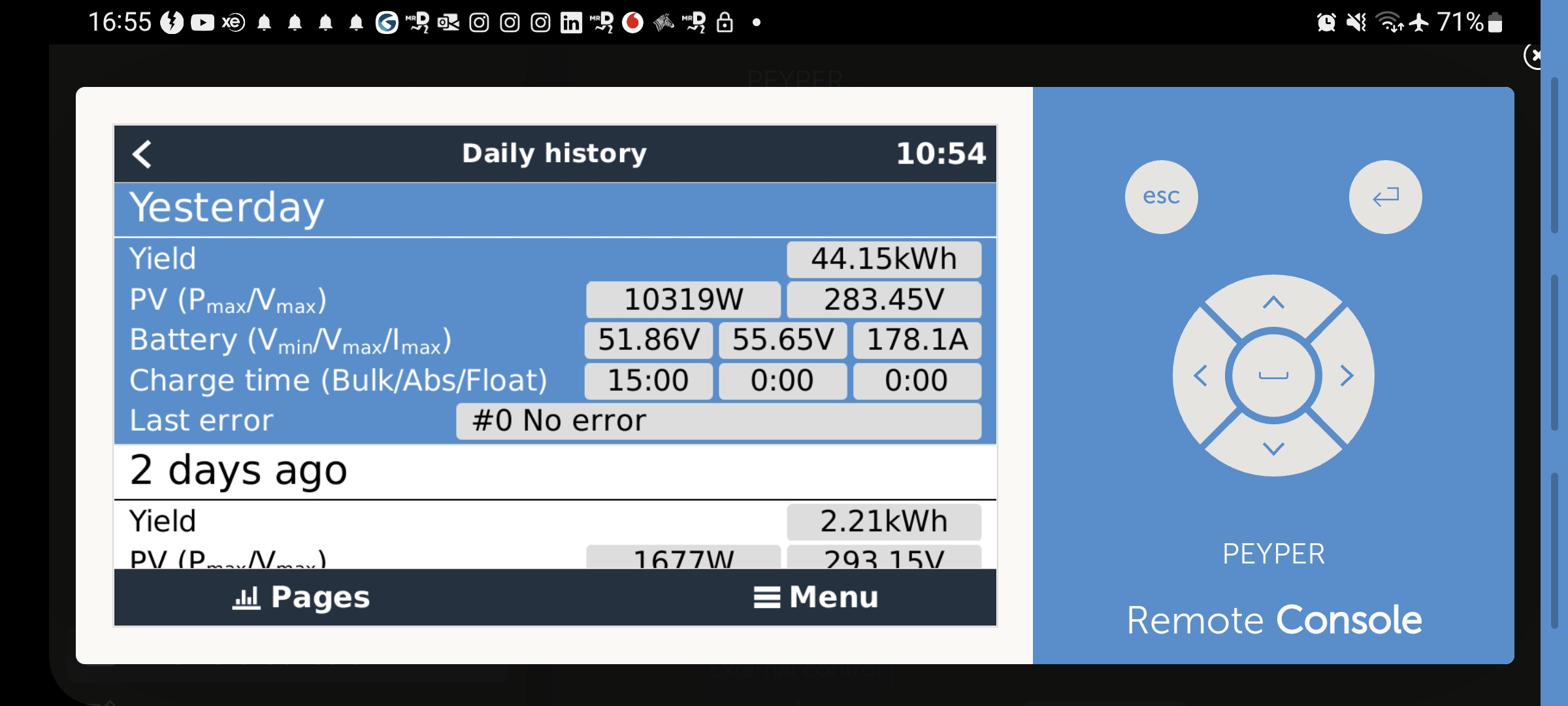

This was today @ 14:17 This system is a beast.

Added the Gennie as well

Friday was my first full day on the new system. Very impressed!

Thanks for the tip 👍

Hi, the panels were R2 996 ea.

It's happening....

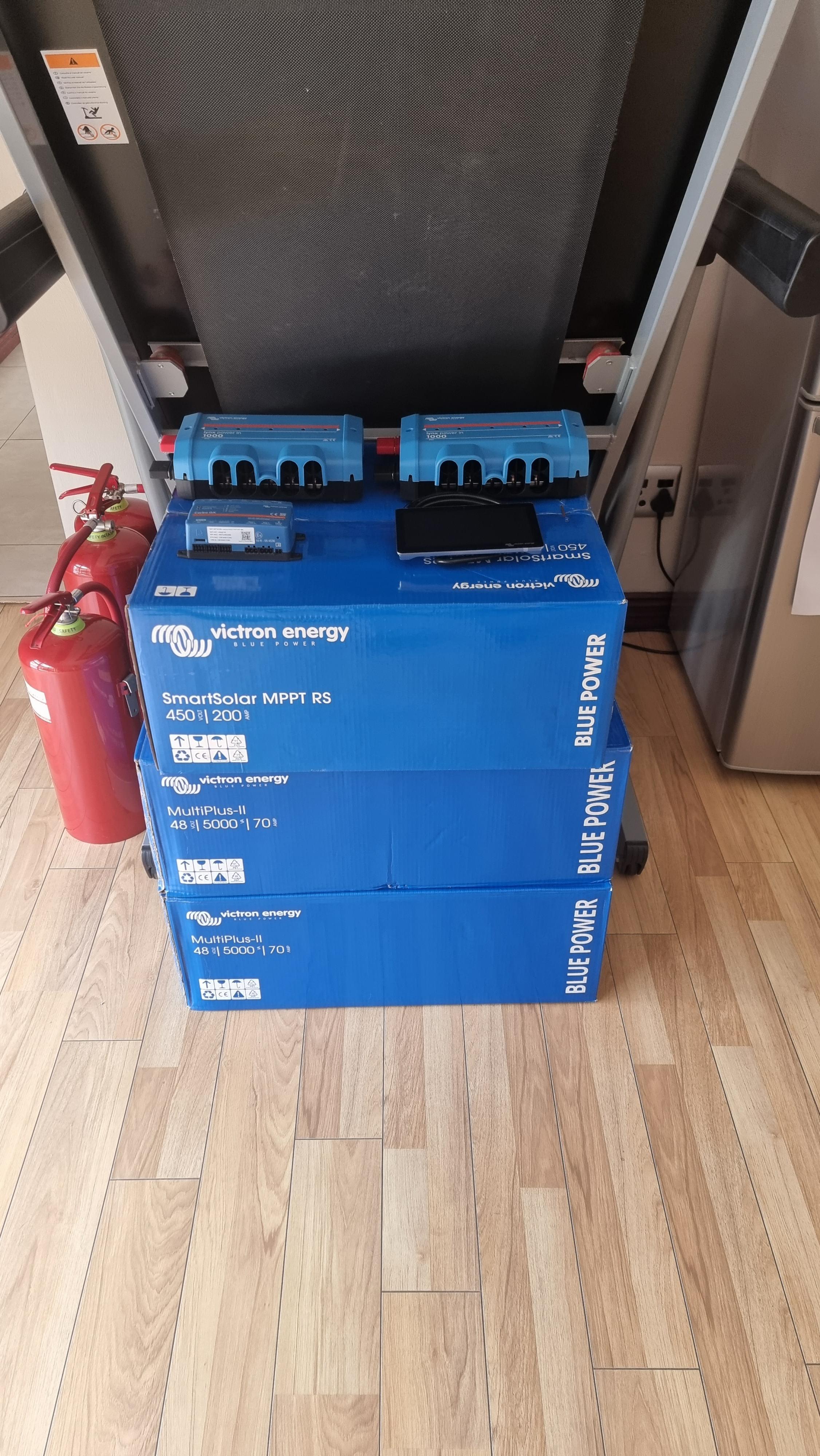

Good evening all, Collected the first batch of equipment for my 10kva home installation. (2 x Victron Multiplus II 48/5000 & 1 x Victron SmartSolar MPPT RS 450/200) 2 x 14.3kwh Solar MD batteries and 28 x IBC 400W Solar panels to follow. Extremely excited about this journey. I'll try to post the progress, we start on Thursday, whoooo haaaa!

Good day, Anyone any feedback on the above mentioned solar panels (370W Monocrystaline) Either them or JA Solar Perc Half Cell. Regards,
