November 19, 20232 yr Hallo fellow DIY-ers I have recently stumbled upon a system provided by Solar and Inverter Warehouse as in the above picture. I am strongly considering designing my own system based on the same principle, but connection to and from the main DB board will have to be done in such a way, that I will be able to obtain a COC certificate. I will make use of two industrial plugs and sockets to connect the inverter and battery to the DB board providing power, and to connect to the grid. What are the pitfalls that I will have to be on the lookout for if I want to do the installation in this manner.
December 4, 20232 yr Author I think not too much, since the batteries will be in the bottom part, and they are by far the heaviest equipment
December 5, 20232 yr On 2023/11/19 at 11:43 AM, Janosh said: What are the pitfalls that I will have to be on the lookout for if I want to do the installation in this manner. If you want to connect solar panels how will the pv wiring be connected at the pv combiner box? Will they be plug in as well?

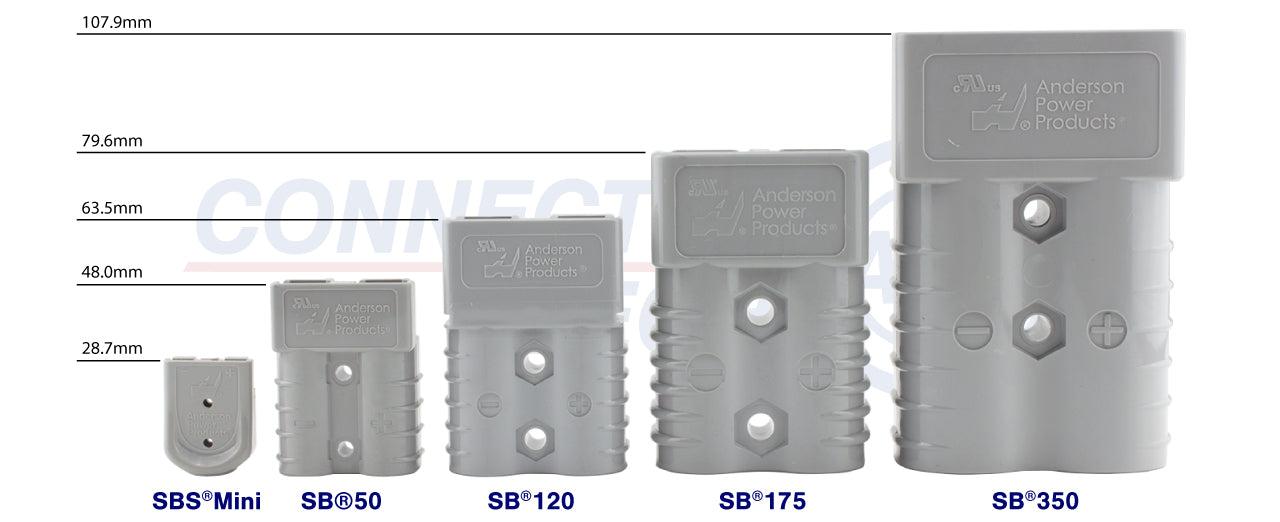

December 5, 20232 yr 2 hours ago, Gerrie said: If you want to connect solar panels how will the pv wiring be connected at the pv combiner box? Will they be plug in as well? @Janosh I will use 50A Anderson plug that would be suitable for 4mm²~6mm² solar cable and should you by mistake disconnect under load there will be minimal damage to the contacts whereas MC4 connectors will be damage and it is a schlep to disconnect MC4 connectors if you want to move it around.

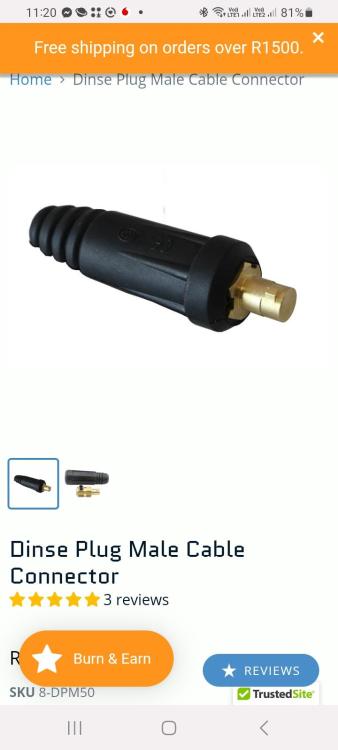

December 6, 20232 yr 12 hours ago, TaliaB said: 14 hours ago, Gerrie said: If you want to connect solar panels how will the pv wiring be connected at the pv combiner box? Will they be plug in as well? @Janosh I will use 50A Anderson plug I agree it looks like a good option and it's not likely to swap polarity during plug ins. I have used the dinse welding plugs before but was not 100% satisfied with them due to the loose fit.
December 6, 20232 yr 3 hours ago, Gerrie said: I agree it looks like a good option and it's not likely to swap polarity during plug ins. I have used the dinse welding plugs before but was not 100% satisfied with them due to the loose fit. Thanks for the name of these units. I have often wondered what they are called and where to get them.
December 6, 20232 yr Author Yes. The feed from the combiner box to the inverter will be plug-n-play which will be installed on the trolley. This way you can unplug the whole system and move to another premises, at least taking the more expensive equipment with. By flipping the changeover switch on the secondary DB the premises will have normal Eskom to both essentials and non essentials.
