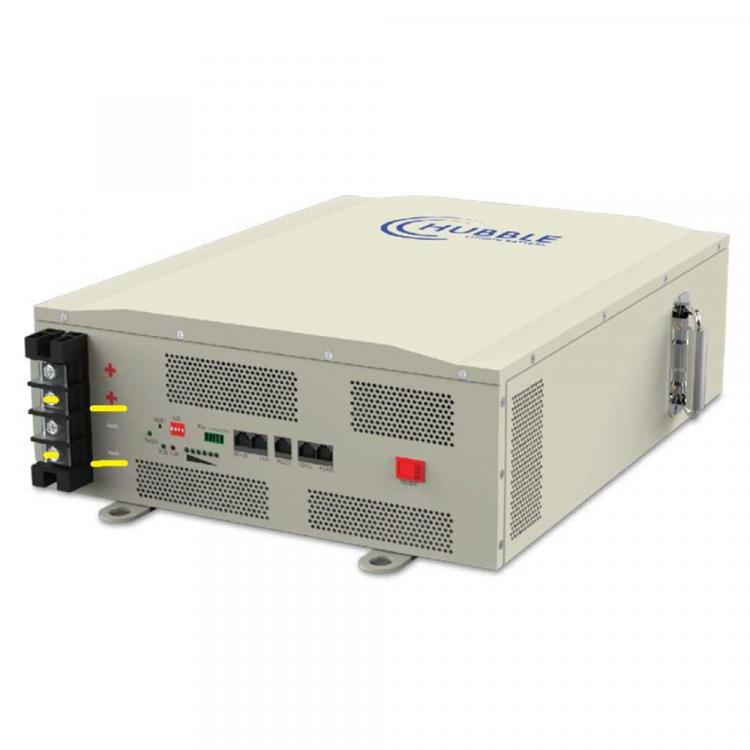

August 11, 20214 yr I'm sorry to say but the documentation for the Hubble Lithium batteries is so bad! I'm looking for the correct info on which terminal to use when only a single battery is connected to an inverter. Can someone who knows, please confirm, the terminals marked in yellow are the correct one for a single battery? I'm just guessing at the moment based on their parallel connectivity diagram. And also, where is the ground/earth terminal on this battery?
August 11, 20214 yr 2 hours ago, PowerUser said: I'm sorry to say but the documentation for the Hubble Lithium batteries is so bad! I'm looking for the correct info on which terminal to use when only a single battery is connected to an inverter. Can someone who knows, please confirm, the terminals marked in yellow are the correct one for a single battery? I'm just guessing at the moment based on their parallel connectivity diagram. And also, where is the ground/earth terminal on this battery? Hi there. You may use any of the positive and negative terminals as they run off a common busbar. You have 2 positives on a busbar and 2 negatives on a busbar.
August 11, 20214 yr Author 1 hour ago, Leshen said: Hi there. You may use any of the positive and negative terminals as they run off a common busbar. You have 2 positives on a busbar and 2 negatives on a busbar. Thank you @Leshen! Could you please tell me, where is best to connect the ground to the chassis of this battery as well?
August 11, 20214 yr 1 hour ago, PowerUser said: Thank you @Leshen! Could you please tell me, where is best to connect the ground to the chassis of this battery as well? There are lots of debate around whether batteries need to be earthed. I’m one of those that believe that they don’t need to however many believe that they do. Hubble has introduced a grounding terminal though on the battery.
August 11, 20214 yr Author 2 hours ago, Leshen said: There are lots of debate around whether batteries need to be earthed. I’m one of those that believe that they don’t need to however many believe that they do. Hubble has introduced a grounding terminal though on the battery. Looks like I need to do a bit of research on the topic then. Do you happen to know where is that grounding terminal on the battery? It’s not marked anywhere I can see.
August 11, 20214 yr 55 minutes ago, PowerUser said: Looks like I need to do a bit of research on the topic then. Do you happen to know where is that grounding terminal on the battery? It’s not marked anywhere I can see. If it’s not marked then you probably have an older model. May I ask, what’s your reason for earthing the body of the battery?
August 11, 20214 yr Author 24 minutes ago, Leshen said: If it’s not marked then you probably have an older model. May I ask, what’s your reason for earthing the body of the battery? Well according to this guide: https://www.solaris-shop.com/blog/grounding-techniques-to-prevent-inverter-damage/ it shows the battery grounded as well. That’s why I thought, I need that. The battery can’t be an old model. Got it only couple of weeks ago and still busy mounting and connecting everything. Haven’t even switched it on yet. @87 Dream, those mounting bolts don’t even make contact with the chassis on the Hubble. There is a very thick layer of baked paint in between. Edited August 11, 20214 yr by PowerUser
August 11, 20214 yr 24 minutes ago, PowerUser said: Well according to this guide: https://www.solaris-shop.com/blog/grounding-techniques-to-prevent-inverter-damage/ it shows the battery grounded as well. That’s why I thought, I need that. The battery can’t be an old model. Got it only couple of weeks ago and still busy mounting and connecting everything. Haven’t even switched it on yet. @87 Dream, those mounting bolts don’t even make contact with the chassis on the Hubble. There is a very thick layer of baked paint in between. What I can say is that Hubble doesn’t need the battery to be earthed so you really don’t need to be concerned. I will however let you know tomorrow about the earthing point they have created for installers that want their batteries to be bonded to earth.
August 11, 20214 yr Author 1 minute ago, Leshen said: What I can say is that Hubble doesn’t need the battery to be earthed so you really don’t need to be concerned. I will however let you know tomorrow about the earthing point they have created for installers that want their batteries to be bonded to earth. Thank you for the clarification @Leshen!
