Hi all

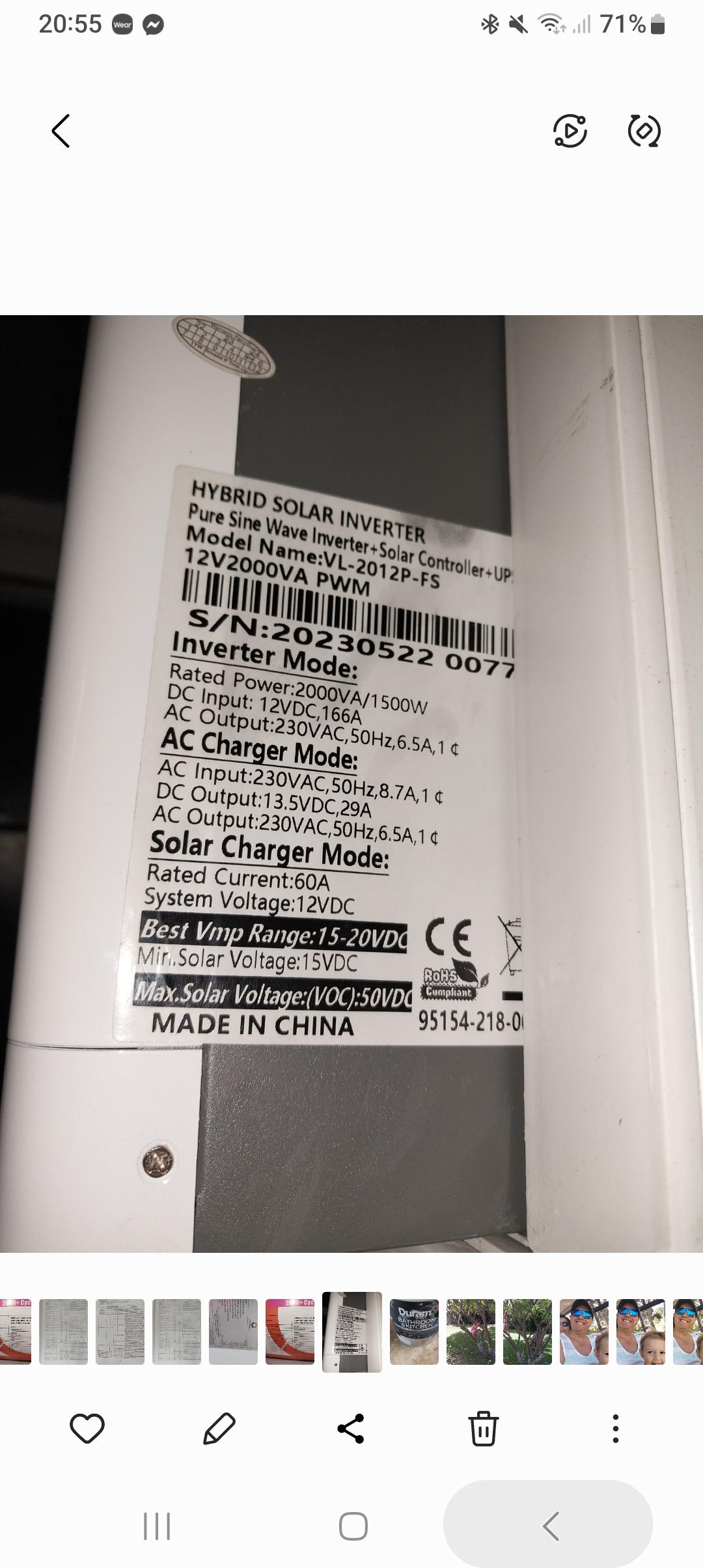

I need some help please. I have a 2 KVA PWM 1500W fivestar 12V Solar Hybrid Inverter.  With a 50Ah lithium battery and one solar panel.  I only get 1hr and 30min running time during LS. I'm only running a small TV, wifi and a light. Load says 6%.  The settings are so confusing. I keep getting at low voltage battery error and ALA 235 error. Please help surely I should be getting more time than this.. what settings do I change ?

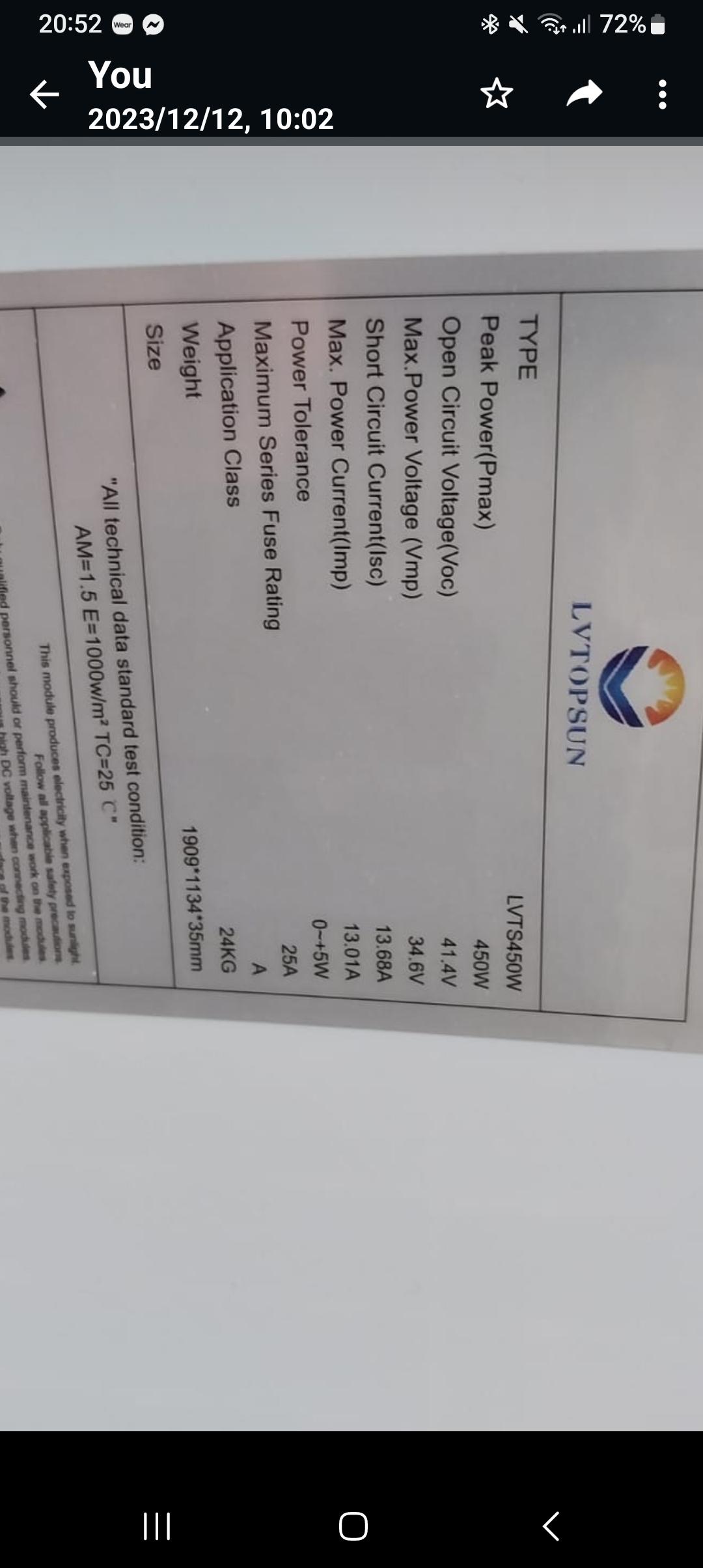

With a 12V PWM system, you really need a "12V" panel, with a Vmp of around 17V. You are wasting more than half of your panel's output running it at around 14V or less most of the time. The best you could get would be around 13A x 14V ~= 180W, often more like 80% of this, or 145W.

I'm guessing that the battery is getting chronically undercharged, and it may already be ruined. You could add another panel in parallel, doubling the solar charge power. Or replace the panel with several 12V panels in parallel, but those are hard to get at reasonable prices.

You could also update to an MPPT based inverter, or use an external MPPT solar charger connected directly to the battery. Or update to a 24V system, either MPPT or PWM. The external MPPT solar charger is probably the easiest and cheapest way.

You may care to update to a lithium battery too, they are more expensive up front, but cheaper and less hassle in the long run. [ Edit: Duh! It already is. So most likely the battery is not ruined, but you still probably need more solar power to charge it. ]

Edited January 6, 20242 yr by Coulomb

Judging by the high number of cycles of the battery, this seems to be a 12V 50Ah lithium battery. This gives better chances that the battery is still okay. Also, OP said it is.

First issue is just that it's a very small battery, with 640 Wh storage capacity, so it will not last long before it's flat. Max 600W output on a 2kW inverter because of the choice of battery. A second battery will help to reach at least 2 hrs.

The panel is also not ideal for this inverter wrong as said above. Another panel will double the output, but again, it's not likely to be good value for the money.

In the end, unfortunately, not a very well put together system.

@donCT

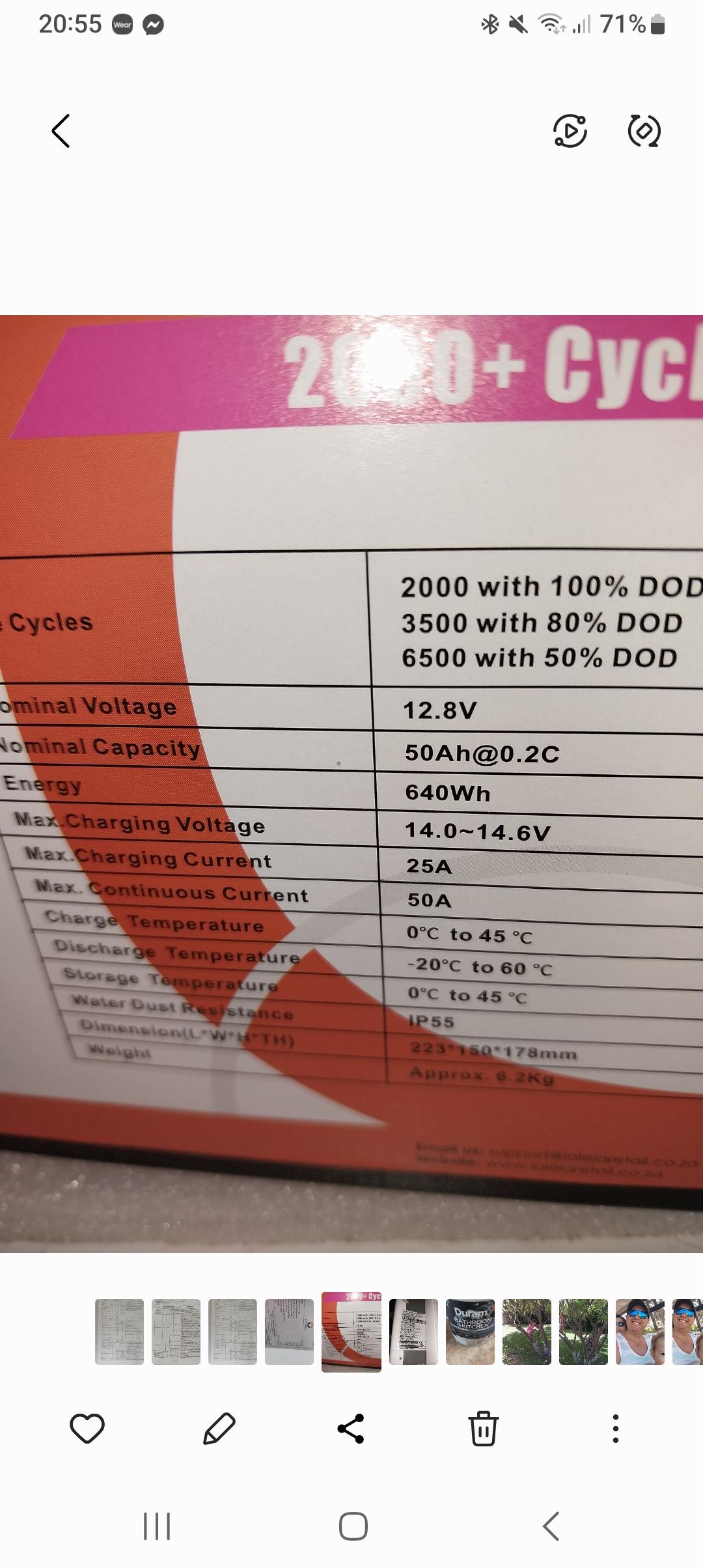

Your load can't be more than 115w as per your appliances used. You have a 640wh lifep04 battery that should give you at least 5 hours coverage when fully charged.

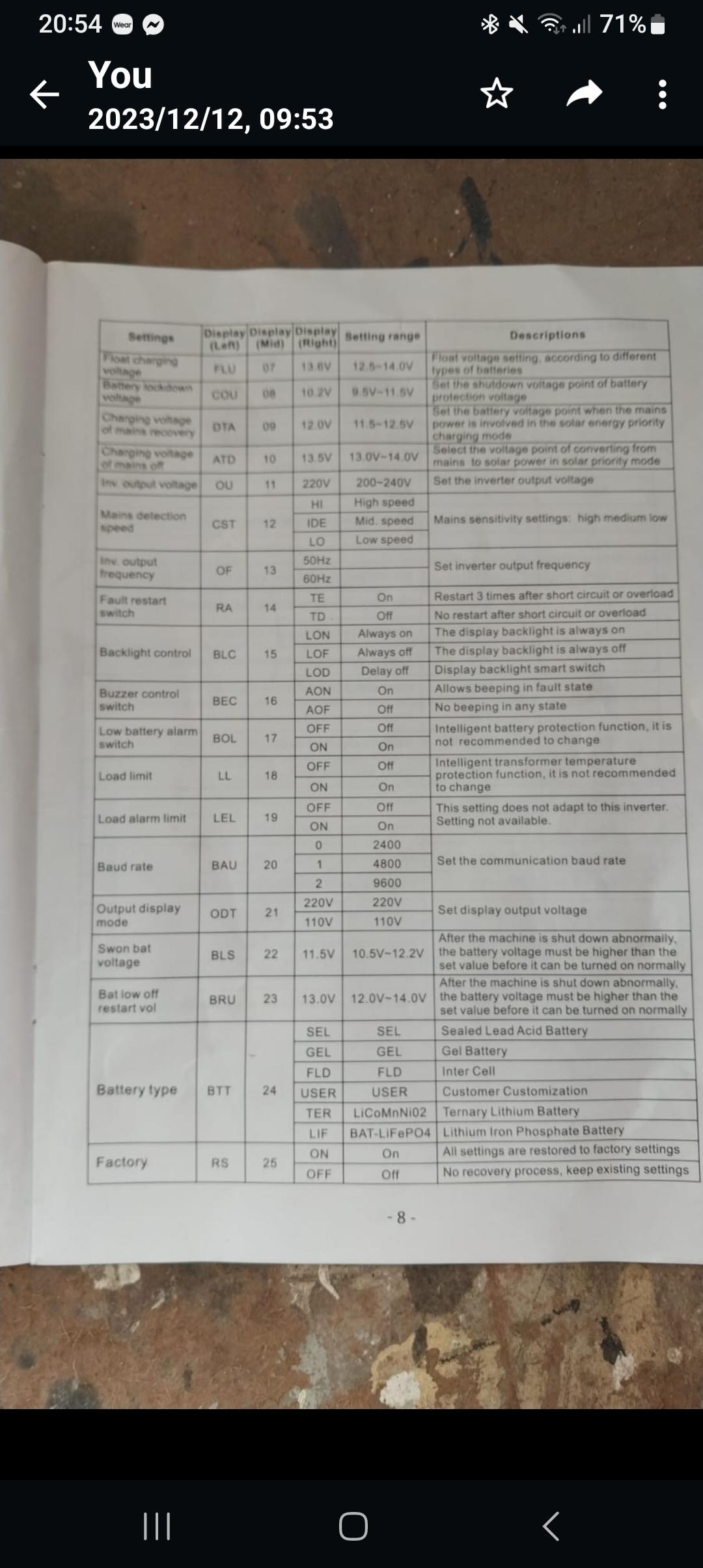

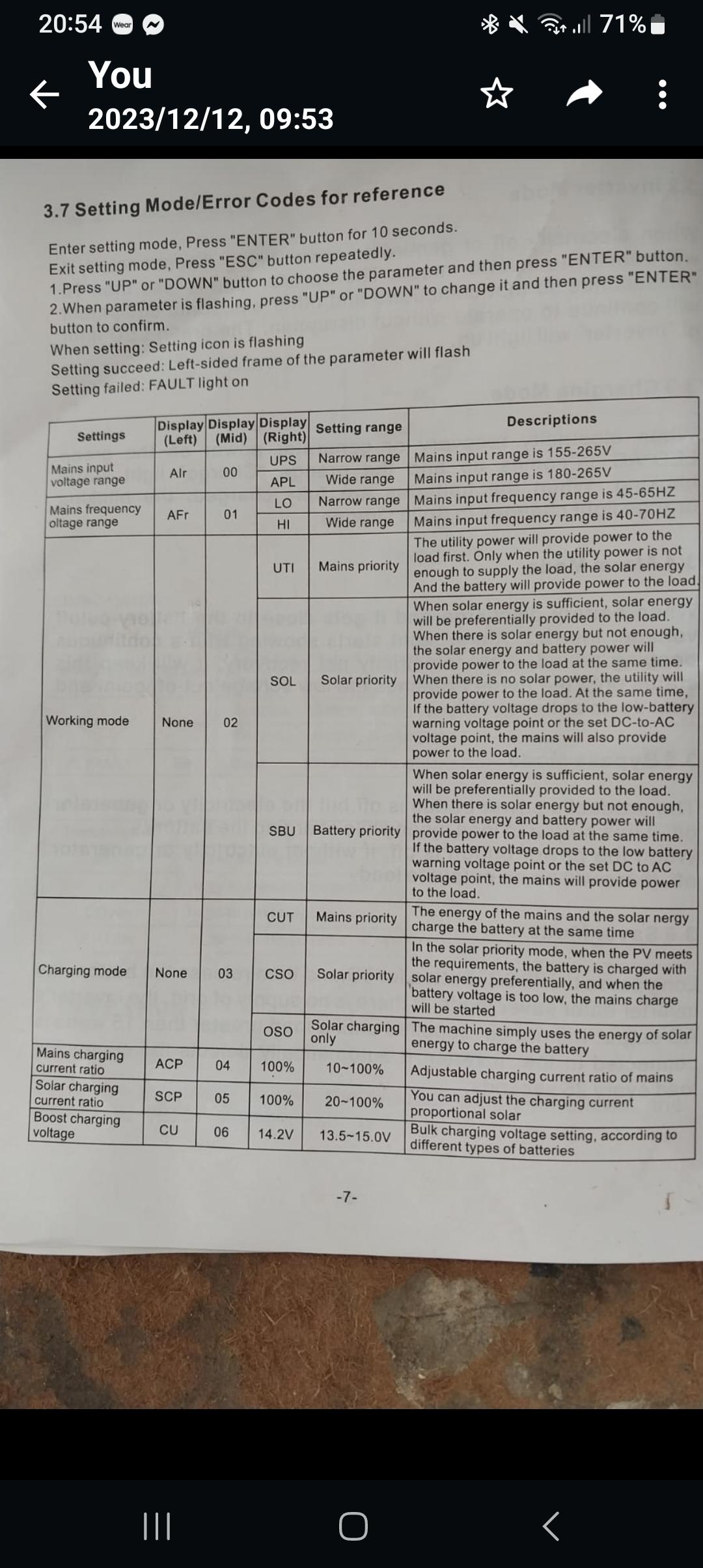

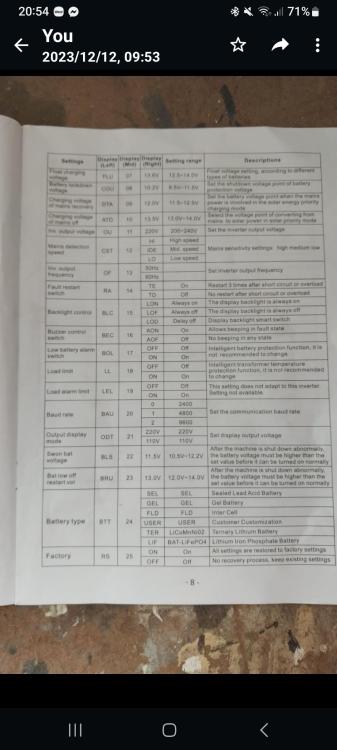

Set parameters as follow:

00- UPS

01- LO

02- UTI

03- CUT

04- 90%

05- 100%

06- 14.2V

07- 13.6V

The inverter is now set up for LS backup only. I am wondering if your parameters 02 was set to SBU and 03 to OSO and your panel is not capable of fully charging your battery. Send me all parameter setting if you get a chance just jot them down and take a picture.

See if you get better results during load shedding your battery should be fully charged by uitility and if results are better we can work on your solar panels and another 50ah battery backup.



Edited January 6, 20242 yr by TaliaB

1 hour ago, TaliaB said:

@donCT

Your load can't be more than 115w as per your appliances used. You have a 640wh lifep04 battery that should give you at least 5 hours coverage when fully charged.

Set parameters as follow:

00- UPS

01- LO

02- UTI

03- CUT

04- 90%

05- 100%

06- 14.2V

07- 13.6V

The inverter is now set up for LS backup only. I am wondering if your parameters 02 was set to SBU and 03 to OSO and your panel is not capable of fully charging your battery. Send me all parameter setting if you get a chance just jot them down and take a picture.

See if you get better results during load shedding your battery should be fully charged by uitility and if results are better we can work on your solar panels and another 50ah battery backup.



Slight correction. I also get a load of 180W as per @Coulombcalculation. Reducing the 640W storage to 90% is 576W. Deducting say 8hrs of standing time(25W) after sunset before LS brings the storage to 376W. This leaves just 2hrs to run the load.

This only if battery was fully charged. Low PV charging might cause battery not to be full and run time will be far less.

1 hour ago, Scorp007 said:

Slight correction. I also get a load of 180W as per @Coulombcalculation. Reducing the 640W storage to 90% is 576W. Deducting say 8hrs of standing time(25W) after sunset before LS brings the storage to 376W. This leaves just 2hrs to run the load.

This only if battery was fully charged. Low PV charging might cause battery not to be full and run time will be far less.

Let's say we have 640wh lifep04 battery fully charged so we have 640wh- 10%= 576wh usable battery. Forget the 1 panel for now. Inverter is in passtrough using utility for loads and 3 watts self consumption from battery. 8 hours x 3 watts= 24wh used for self consumption. 576wh -25wh = 551wh capacity left. 1 small tv =~50watts wifi ont+ router ~ 25watts 1 x light cfl~ 11 to 14w total load =90 watts.

551/ 90 = ~6hours. This setup would cover 2 hours LS with no problem.

8 hours ago, Coulomb said:

You are wasting more than half of your panel's output running it at around 14V or less most of the time. The best you could get would be around 13A x 14V ~= 180W, often more like 80% of this, or 145W.

The 180w Coulomb was reffering to is the charge power from a 41v panel through a pwm charge controller with a battery voltage of 12v.

Edited January 6, 20242 yr by TaliaB

30 minutes ago, TaliaB said:

Let's say we have 640wh lifep04 battery fully charged so we have 640wh- 10%= 576wh usable battery. Forget the 1 panel for now. Inverter is in passtrough using utility for loads and 3 watts self consumption from battery. 8 hours x 3 watts= 24wh used for self consumption. 576wh -25wh = 551wh capacity left. 1 small tv =~50watts wifi ont+ router ~ 25watts 1 x light cfl~ 11 to 14w total load =90 watts.

551/ 90 = ~6hours. This setup would cover 2 hours LS with no problem.

The 180w Coulomb was refering to is the charge power from a 41v panel through a pwm charge controller with a battery voltage of 12v.

OK sorry my mistake. It just happens so that the OP mentioned 6% of 1500W and when I saw 90W I took it as X 2 by error. Then my error again by taking the standing load as from the battery.
