Plaasjapie

I stand to be corrected, but the 1 inverter must be a master and the other 1 a slave in parallel mode. The slave follows the master's commands. Is your setup like that and which inverter receive the ECO command ?

I am in the Western Cape , Boland area (Robertson), but can bring it to Cape Town as well.

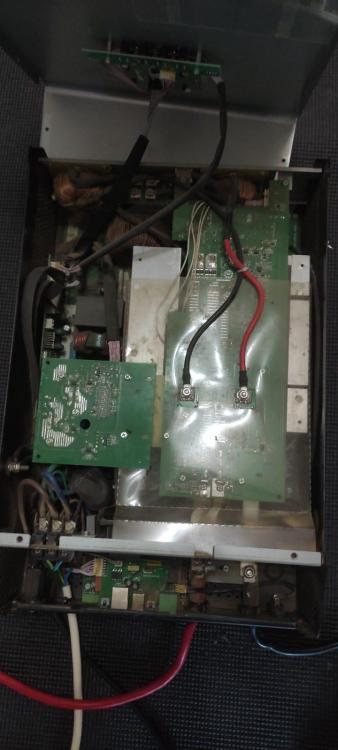

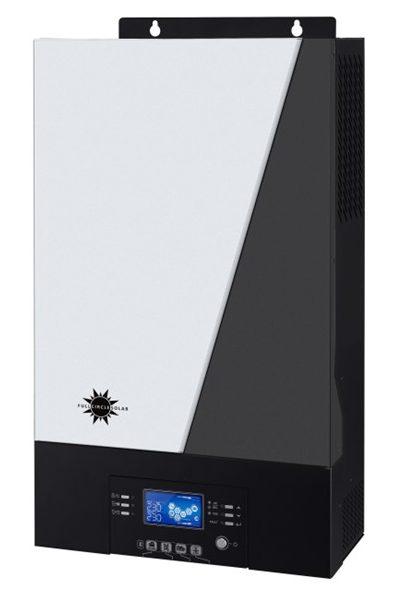

Hi there Is there any hope for fixing this inverter? Is it worthwhile, or should I just send it to the scrapyard never to buy them again ? Bought 2 brand new (and expensive at the time) King II 5 kw inverters (with 6kw MPPT) from FullcircleSolar end of March 2023. Had many problems getting it to work in parrallel mode without error codes due to magnetic interference with each other. Eventually had to send one back and take loss on it by accepting another (bigger) 2nd hand inverter form them in return, for which I had to pay more for. (This unit now also gives problems by just switching off (going in eco mode) whenever it wants. But 6 months ago, after working for 2 years without giving any problems ever, the remaining King II just stopped working one evening while under low load. It smelled like something burned inside. I sent supplier email below but they said warranty is only 1 year. I already bought another inverter to replace this one. Is anyone interested / capable to fix this main board of the King II inverter ? The rest of the components is fine I think. I thought about fixing it myself if it was just a capacitor short or something, but I looked hard and long using my multimeter but as I'm not professional in this stuff I cannot find what is causing the short on the DC circuit. It's taking up space too long now on a spare table in my house and I'm about to scrap it as a lesson learned to never buy a new untested product/inverter from Voltronic brands again. Good day One of these expensive Voltronic Axpert King II inverters that I bought from you just stopped working during Friday night. It does not want to go on again. It seems to have a short on the battery input terminals as it make both my battery DC breakers trip, as well as the over current protection from the batteries themselves. Can I send it back to you for repair? It is still under the 2 year guarantee from when I paid for them. One of the reasons I bought these genuine Voltronic King inverters from you, and paid much more for them than others, is because Paul told me they are much better quality that others on the market that is knock-off Axpert inverters. Looking forward to hearing back from you. Paul is welcome to give me a call to discuss.

Also just want to say thanks to all the contributors of this thread. My E&E engineering son returned back to his flat in Stellenbosch this week only to find the 4 year old Axpert King 1 inverter won't start up after the holiday. As this specific inverter requires a connected battery before it will startup, we originally thought it was just the battery which ran flat (he left it on ...). He first borrowed a 48V charger and charged the battery to 51V which then started the inverter , but with the same flashing LCD and LED lights problem as shown in this thread. Showed him this thread with the possible solution and he then proceeded to take apart the whole inverter, bought 2 new CAPs, soldered them in as replacements and put the whole inverter back together the next day. No screws left behind, he was hopeful ..., and VOILÀ (!) , inverter started back up functioning perfectly as before. Hopefully fit for a good few more years of service. R10 for the CAPs vs R12 000 for a new inverter, now that's a good deal. Reminded me of my days when I was his age when I fixed my PC's by just replacing the busted caps on the motherboard . It's a good feeling !

R19 500-00 new don't think there is any warranty left after 3 years ...

Hi I would appreciate some opinions please in evaluating an offer from a seller of a 2nd hand Voltronic 7.2kW Axpert inverter. It's 3 years old and in good working condition. Price range ? Thanks

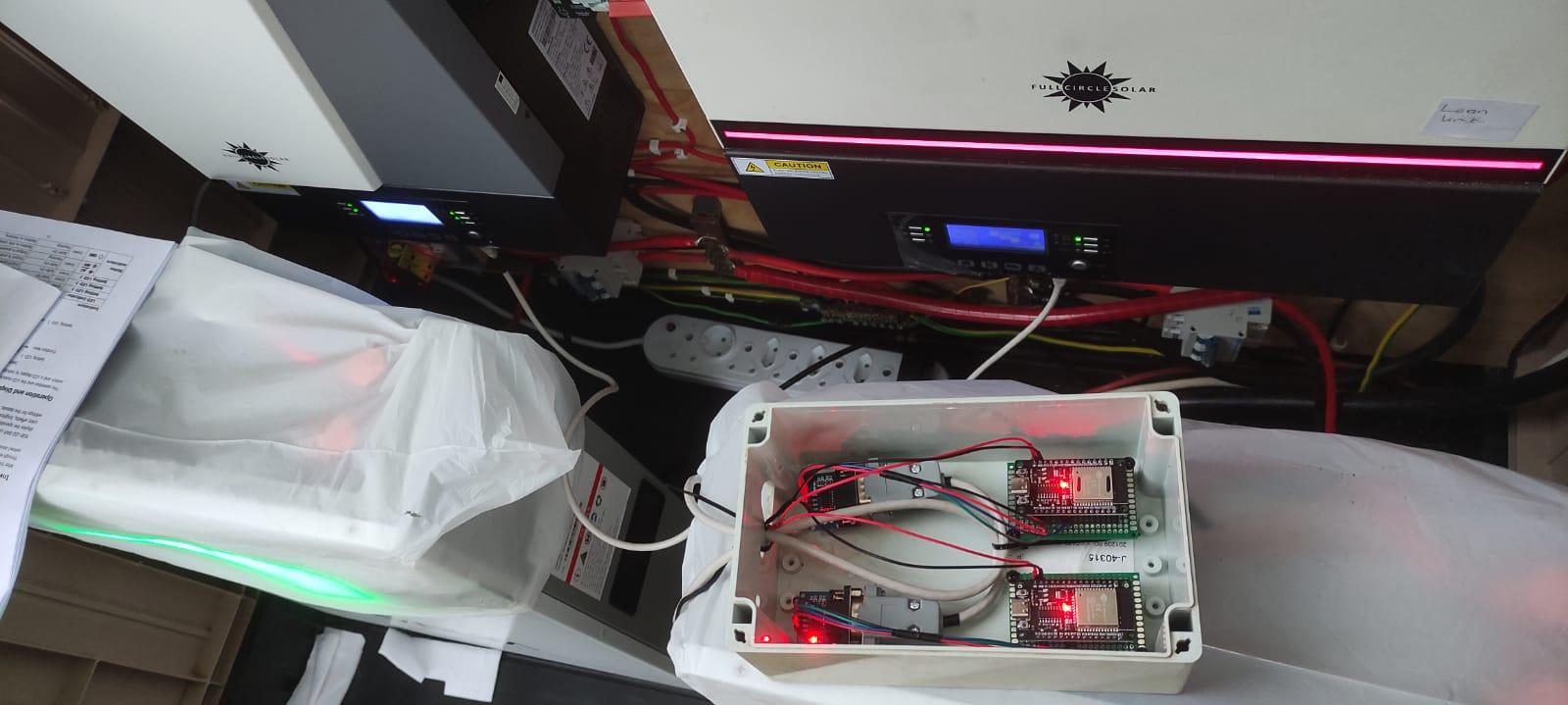

My son this weekend installed for me 2 x ESP32's powered with 5V, while the Max RS 232 converter connected to it uses the 3.3V, so I was just curious what you are meaning. They are connected to 2 different Voltronic inverters (Max 1 and King II ) and sends data to Home Assistant, which also updates a local database, and from where a Grafana dashboard can be viewed for both inverters. He also had an initial problem communicating with the newer model King II , with no replies received, but in the end it was a coding error on the ESP which didn't know how to interpret the responses that came in back from the newer King II which differed from the earlier model King I responses.

Lithium Batteries SA has always been very open which cells and BMS they use in their batteries. Also, some overseas battery manufacturers is open with this as well. I don't know why most of our SA resellers are so shady ... Why are our suppliers not like this one ? 👇

What do you mean by " the ESP32 GPIO's are not 5V tolerant " ?

This post is a good example of why I rage against these unscrupulous sellers of batteries in SA. If they won't tell you what BMS and Cells are inside, run away as fast as you can !

Thanks ! Pretty sure this must be the BMS then here , https://www.cleverbms.com/list_15/82.html

Volta is just a SA spec'd rebrand of this Chinese system builder ... https://www.genixenergy.com/power-storage-wall/5KWH-ES-BOX12-51.2V-Wall-Mounted-LiFePO4-Battery.html Volta refuses to disclose the BMS they use inside their batteries Volta refuses to disclose the cells they use ... It could be cheap 2nd life cells inside, sold as new. Who would know ? Volta does not want to allow me to monitor the individual cell voltages or temps inside the battery on a dashboard like Home Automation ... Volta does not provide a LCD screen on their batteries to show SOC, individual cell voltages, temperature, etc ... Volta does not provide a DC cut-off switch on their batteries Volta include cheap tin-coated (not 100% copper) DC battery cables with their batteries

You should ask Hubble a few questions in return : Who stands behind their warranty on their batteries ? Can you have a copy of the guarantor's financial statements to see if they have a solid balance sheet to honor warranties ? A guarantee/warranty is only as good as the person/company who stands behind it ... Who manufacture the cells used inside the battery ? Is it new Grade A cells, and how many cells are there inside ? Who manufacture the BMS used to protect the cells inside the battery ? ( Long term testing done in Australia has shown that most battery system failures are due to BMS faults or failures ...)
