wael_fathe Posted November 10, 2023 Share Posted November 10, 2023 On 2023/11/05 at 1:33 AM, BritishRacingGreen said: I tend to agree with you , there is closed loop control via the dsp but it is slower than a tight analogue close loop control. Further to this there is no dedicated current sensor on the battery side in order to rapidly detect short circuit currents. Wether such an addition may protect mosfets and igbts I dont really know. detcting shorts in primary is very fast...uc3842 based smps and other "current mode" control smps's are all super fast when it comes to protection they die due to faulty caps more than they die due to over current incidents Quote Link to comment Share on other sites More sharing options...
Coulomb Posted November 11, 2023 Share Posted November 11, 2023 6 hours ago, Mischel68 said: TVS 1 to 12. It looks like a diode? TVS stands for Transient Voltage Suppressor. These are like zener diodes, but optimised for handling high pulse power, usually 400 W or 600 W depending on the package size. They come in unidirectional and bidirectional; you probably want unidirectional (so install the right way around). Choose one with a standoff voltage rating about equal to the maximum expected voltage in normal (non transient) conditions. Quote Link to comment Share on other sites More sharing options...
Mischel68 Posted November 11, 2023 Share Posted November 11, 2023 4 hours ago, Coulomb said: maximum expected voltage in normal (non transient) conditions. Thanks for your answer. Since the battery voltage is present at the MOSFETs, the value of the TVS diode should be around 60V. Or am I wrong in my thought. Quote Link to comment Share on other sites More sharing options...
Coulomb Posted November 11, 2023 Share Posted November 11, 2023 4 hours ago, Mischel68 said: Since the battery voltage is present at the MOSFETs, the value of the TVS diode should be around 60V. Yes. The TVSs have various voltage ratings, the one you want is usually called the stand-off voltage. Quote Link to comment Share on other sites More sharing options...
wael_fathe Posted November 11, 2023 Share Posted November 11, 2023 On 2023/11/04 at 11:00 AM, BritishRacingGreen said: So to bring up the MAX system supplies without powering the battery terminals , I merely remove the SPS BAT+ cable , and feed into the main board with my current limited power supply. You can of course power the main board via feeding the SPS that is 'hot- wired with mains input . In fact I have done so originally , but I do prefer to use a current limited bench power supply instead. the units i met all have built in " main smps 12 5 minus 12 " and bettery sps but i guess feeding dc after the " diode or" connections will prevent fed back to battery what so ever i think this can be done to sps configuration where the "oring is done in the battery side and can be also done in sps confirgurations where the oring is done after the battery sps Quote Link to comment Share on other sites More sharing options...
wael_fathe Posted November 11, 2023 Share Posted November 11, 2023 On 2023/11/04 at 10:14 PM, razmasoom said: i attached to secondary after diode how foolish of me ..yes after diodes and no voltage is going to back fed razmasoom 1 Quote Link to comment Share on other sites More sharing options...
Mischel68 Posted November 13, 2023 Share Posted November 13, 2023 I asked the dealer in China again. The TVS diode is bipolar and 160V voltage. Quote Link to comment Share on other sites More sharing options...

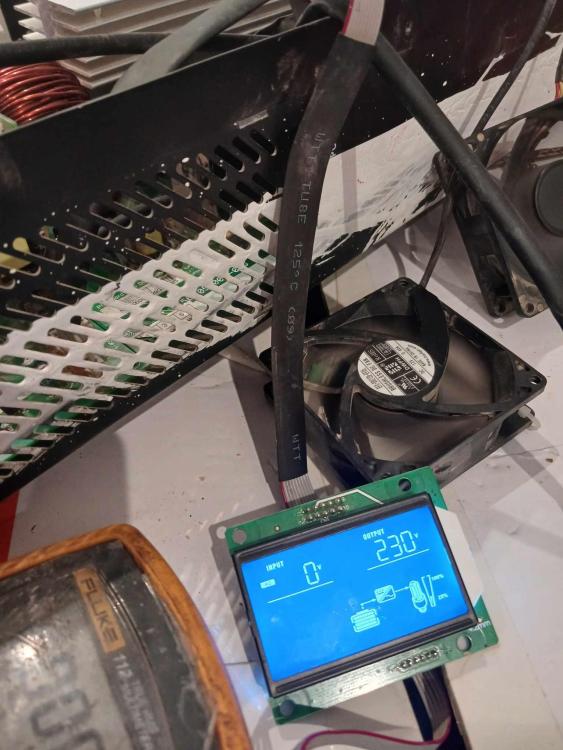

wael_fathe Posted November 13, 2023 Share Posted November 13, 2023 (edited) TODAY i got good repair story that will benifit every one i received an inverter 48vdc 5500 watt , the symptoms is burned mosfets and dc-dc igbts i scaned and replaced all bad fets igbts and resistors in both primary and secondery when i turned the device on ,,the inverter on but the seems to be restarting continusly i immediately suspected the main sps when i checked 12 5 and -12 they all ok i checked the battery sps , its output is fluctating like crazy ffrom 120 to 80vdc ...so big ehhha i brought my cigarette and coffee as i know i am in the right path logically what sps is feeding? it feeds the main sps and the soft start so i checked the mppt board as the soft start sps existed there i find a shorted diode.., this certain diode used in mppt as main boost diode and this certain diode i am sure i cheked it when i first opened the inverter it was goood i felt that its replacment wont bring any fruit , but i did replace it any way now as soon as i turned on the device the diode got shorted again and not only it shorted but mppt igbt is shorted as well ....i know i was close ....but i should avoid losing new diode and new igbt i was not sure what to do ....i decided to replace the diode and igbt again but before doing so i replaced all bus 500vdc caps .....when i turned the device on .. the diode and igbt not shorted and the inverter no longer cycles , it gives me error 53..i have seen this error before it is always have some thing to do with the ac igbts ...so i tested the square wave signal in all 4 igbts and find 2 missing pulses i tracked 18vdc -5vdc power supplies and i detcted one diode is too hot there i tested that diode i find it shorted partly ..i turn the device off and replaced the diode ... i powered the device agian and mppt igbt and diode blow again so it seems they survive when i replaced the caps not because i replace the caps but because last igbt was fitted have taken the zener 18vdc diode with it , prevnting 18vdc to reach to the copler that exist in mppt that copler is partly shorted give him 18vdc and he will destroy ur igbts ....a partly shorted copler will miss translate 18vdc into a dc signal that is not on nor off i quck fix i diconnected the shown cable it is responsible for sending the 18vdc to the mppt board i removed bad fet and bad diode from mppt board and fixed new zener 18vdc diode ...truned inverter on ..guess what.....the device worked!! ------------------------------------------------------- failure analysis ...the device have a dc-dc failure and have bad copler the bad coplerand and bad zener loaded the sps cuasing cpu to restart ....although its not logical because main sps seems ok with good zener the 18vdc travel to the mppt board and ruin the igbts there due to bad copler .. with a partly shorted zener 18vdc voltage is not going to travel to mppt board and the igbts will survive but in other hand you wont have your ac as missing 18vdc is used by ac igbts as well with picture you will see the cable that you have to disconnct when repairing i hope you love my story but have 2 questions i did replace bad t350 with good t250 and it worked can i replace bad copler for3150 with t250? will it work ? the "suspected " bad copler have 30k between its 18vdc pin and 5 vdc pin is it normal reading ? the diode in mppt board have the full bus voltage across it 360vdc is that normal? Edited November 14, 2023 by wael_fathe razmasoom 1 Quote Link to comment Share on other sites More sharing options...
AndrewF Posted November 18, 2023 Share Posted November 18, 2023 On 2022/11/09 at 3:34 PM, BritishRacingGreen said: The PWN duty cycle is typically zero due to the fact that FB pin 2 sits at 5v reference voltage . If this pin is pulled low then the duty cycle will increase and when it reaches 0V , the duty cycle is at its maximum limit 50%. So the DSP can start the PSU by pulling FB low via opto-coupler interface U17. The high voltage bus output will then produced. So on my own journey with the Axpert 5kw , I have discovered that this reference voltage that has mentioned here does not get pulled low by the DSP, is there another process that causes the DSP to pull pin 2 low on U17 thereby pulling FB pin 2 low on U16 . There is 12V present on pin 1 of U17 BTW, so pulling pin 2 low on U17 will do the trick...When the unit is witched on after some time the DC to DC converter does work generating 425V , but the soft start does not precharge the BUS caps......The unit switches off after about 2 seconds when the 425V is generated on the BUS....I have removed the BUS caps for this part of the repair... Any thoughts please..... Quote Link to comment Share on other sites More sharing options...
Coulomb Posted November 19, 2023 Share Posted November 19, 2023 11 hours ago, AndrewF said: The unit switches off after about 2 seconds when the 425V is generated on the BUS....I have removed the BUS caps for this part of the repair... I don't think it's a good idea to remove the bus capacitors. Without them, if and when the bus soft start power supply runs, the output will shoot quickly to a very high voltage, as that power supply has uncontrolled voltage and relies on the capacitors to ramp the voltage. The lack of bus capacitors may be complicating things. If you manually pull pin 2 of the opto to digital earth, does that start the bus soft start power supply? Perhaps check the ULN2003 (from lazy memory) on the control board, to see that it's passing through the instruction from the DSP to turn on the supply. If it's OK, then it seems that the DSP isn't asking for the supply to come on, meaning it may be unhappy with something. I assume that you would be reporting any warnings or fault codes. Quote Link to comment Share on other sites More sharing options...
wael_fathe Posted November 19, 2023 Share Posted November 19, 2023 can i replace bad copler for3150 with t250? will it work ? the "suspected " bad copler have 30k between its 18vdc pin and 5 vdc pin is it normal reading ? @Coulomb Quote Link to comment Share on other sites More sharing options...
razmasoom Posted November 20, 2023 Share Posted November 20, 2023 On 2023/09/06 at 10:36 PM, BritishRacingGreen said: I have drilled down somewhat on this issue . the 'spike' appears as a short spike , but I stretched out the signal wider in time , the images below refers: The Y scale is actually 10V per division It is not apparent in the image, but the bottom of the spike is actually clipped by the zeners. I have removed one zener , and the spike goes below -20V. Note that this is with an IGBT fitted , far more damped . If I remove the igbt , the spike oscillation can clearly be seen, as below: please note this is without zener clamping: and here is the same wave , but zener clamping restored. you can see the shaving at the bottom. This to me is good news because one can observe the zener clamping on the scope without actually have to remove one to prove its ok. So although the pulse reaches very close or on the +-20V absolute maximum rating of the igbt , the circuit under repair is correct , and I will abide by that. I have performed the same test on two different 5kW machines and they both expose the same waveforms. EDIT : It is noteworthy to see that when the igbt is fitted , its capacitive load increases the switch off period from 48nS to 960ns. EDIT2: This data is of course also useful if we want to check whether an alternative / replacement IGBT is suitable in the machine. I think selection of replacement IGBT and MOSFET is only dependent on dead time between the pluse generated from sg3525 ic in output A and output B. I think all igbt/MOSFET suited for replacement if turnoff time is below the dead time of pulse (out A and out and its doesn't matter what's is it's capacitance characteristics. Quote Link to comment Share on other sites More sharing options...
Coulomb Posted November 20, 2023 Share Posted November 20, 2023 On 2023/11/19 at 5:00 PM, wael_fathe said: can i replace bad copler for3150 with t250? will it work ? If you are asking can you replace a faulty HCPL-3150 opto-coupler with a HCPL-T250, I would say yes. The 3150 is a quite crude device, only 0.4 A drive, the T250 has 1.5 A drive. Other parameters seem similar. On 2023/11/19 at 5:00 PM, wael_fathe said: the "suspected " bad copler have 30k between its 18vdc pin and 5 vdc pin If you see anything less than infinite resistance between pins 2 or 3 (on the diode, input) side with any of pins 5-8 (on the gate driver side), then that's very bad, and the isolation has completely failed. If you're saying you see this between pin 8 (Vcc on output) and pin 4 (Vee on output), then that's completely reasonable. I would build a quick test jig to find out if it's working or not. I would expect to see effectively a diode between Vcc and Vee, i.e. on a diode range with the multimeter positive probe on Vee and negative probe on Vcc, I'd expect to see about 0.35 - 0.6 V. In the other direction, I'd expect to see open circuit, even though the chip will draw some power when idle. For the record, the ACPL-T350 is the most powerful device, rated at up to 2.5 A peak drive (2.0 A max recommended). Quote Link to comment Share on other sites More sharing options...
Coulomb Posted November 20, 2023 Share Posted November 20, 2023 (edited) 1 hour ago, razmasoom said: I think all igbt/MOSFET suited for replacement if turnoff time is below the dead time of pulse (out A and out and its doesn't matter what's is it's capacitance characteristics. I disagree. Even the mighty ACPL-T350 is only supposed to drive a maximum of 10 000 pF (10 nF) of gate capacitance. There are a few porky IGBTs that exceed this value, and would not work well in these inverters. See for example this post and the one following it. Edited November 20, 2023 by Coulomb Quote Link to comment Share on other sites More sharing options...
razmasoom Posted November 20, 2023 Share Posted November 20, 2023 6 hours ago, Coulomb said: I disagree. Even the mighty ACPL-T350 is only supposed to drive a maximum of 10 000 pF (10 nF) of gate capacitance. There are a few porky IGBTs that exceed this value, and would not work well in these inverters. See for example this post and the one following it. Sir but presently most of inverter do coming with STGW80H65dFB ( 10524pf)which has obviously higher capacitance then earlier used irgp4066d(4440pf). Quote Link to comment Share on other sites More sharing options...
razmasoom Posted November 20, 2023 Share Posted November 20, 2023 (edited) Can anyone confirm the value of capacitor c4 and C110 out of the circuit. As mentioned in schematic it shows 10nf and both are in parallel. But when i made a test circuit for sg3525 and other the frequency not outputting around 38kHz rather it shows around 7kHZ . but when putting 2.2nf (as have in stock ) ie. total 4.4nf (as both are in parallel) almost reach around 28kHZ and are accordance 2F = 1/{0.7 * 3[R(d)] * R(t) * C(t)} .I have already assembled the unit of mine and is on running condition , so cant test out of circuit. it should be near 1.7-1.8nf i think. Edited November 20, 2023 by razmasoom Quote Link to comment Share on other sites More sharing options...
wael_fathe Posted November 20, 2023 Share Posted November 20, 2023 14 hours ago, Coulomb said: 14 hours ago, Coulomb said: If you are asking can you replace a faulty HCPL-3150 opto-coupler with a HCPL-T250, I would say yes. The 3150 is a quite crude device, only 0.4 A drive, the T250 has 1.5 A drive. Other parameters seem similar. If you see anything less than infinite resistance between pins 2 or 3 (on the diode, input) side with any of pins 5-8 (on the gate driver side), then that's very bad, and the isolation has completely failed. If you're saying you see this between pin 8 (Vcc on output) and pin 4 (Vee on output), then that's completely reasonable. I would build a quick test jig to find out if it's working or not. I would expect to see effectively a diode between Vcc and Vee, i.e. on a diode range with the multimeter positive probe on Vee and negative probe on Vcc, I'd expect to see about 0.35 - 0.6 V. In the other direction, I'd expect to see open circuit, even though the chip will draw some power when idle. For the record, the ACPL-T350 is the most powerful device, rated at up to 2.5 A peak drive (2.0 A max recommended). thanks for your comprehensive answer ...alas i ordered 100pces 3150 and 100 t350...if i got this piece of information before i would have made my order all in t350 Quote Link to comment Share on other sites More sharing options...
Coulomb Posted November 21, 2023 Share Posted November 21, 2023 23 hours ago, razmasoom said: Sir but presently most of inverter do coming with STGW80H65dFB ( 10524pf) Really? I was not aware. Is that only clones or genuine Voltronics? Quote Link to comment Share on other sites More sharing options...
razmasoom Posted November 22, 2023 Share Posted November 22, 2023 (edited) 22 hours ago, Coulomb said: Really? I was not aware. Is that only clones or genuine Voltronics? May be I own a clone one and its using stgw80h65dfb. But i have watched many videos and forum , they are using it . I think irgp4066 has been obsolete and no longer manufactured. Others may confirm usage of 80h65 in their inverter (genuine) Edited November 22, 2023 by razmasoom Coulomb 1 Quote Link to comment Share on other sites More sharing options...
AndrewF Posted December 13, 2023 Share Posted December 13, 2023 On 2022/11/09 at 3:34 PM, BritishRacingGreen said: When I got to my senses I measured the bus voltage and it was sitting at 315V According to the soft start circuit should get to 315v, unless I totally misunderstand the context of this post,. my soft start has already blown blown IGBTs , The voltage is exceeding 600V, is there any modification that been done to the FB to regulate this voltage ... Quote Link to comment Share on other sites More sharing options...
BritishRacingGreen Posted December 13, 2023 Author Share Posted December 13, 2023 3 hours ago, AndrewF said: According to the soft start circuit should get to 315v, unless I totally misunderstand the context of this post,. my soft start has already blown blown IGBTs , The voltage is exceeding 600V, is there any modification that been done to the FB to regulate this voltage ... Hi Andrew , sorry to hear about your failure . I have documented the manual control of bus soft start previously as shown below : I have highlighted the word of WARNING in bold . Quote Link to comment Share on other sites More sharing options...
trevorinrsa Posted January 30 Share Posted January 30 Folks I have an Axpert 5KW Inverter that stopped working after the weekend storm in Joburg. Initially it had a D3 error (Battery overvolts) and I checked and the battery volts was 48 so not the issue there? I have tried Nungu Solar who say they can repair on their web site but I cant get through on a phone!! Can I ask you good folk for another reliable repairer in Gauteng for Axpert? Thanks in advance? Trevor Quote Link to comment Share on other sites More sharing options...
Chris Louw Posted January 30 Share Posted January 30 @trevorinrsa Contact BritishRacingGreen on this forum. He will help you if possible. 5 hours ago, trevorinrsa said: Folks I have an Axpert 5KW Inverter that stopped working after the weekend storm in Joburg. Initially it had a D3 error (Battery overvolts) and I checked and the battery volts was 48 so not the issue there? I have tried Nungu Solar who say they can repair on their web site but I cant get through on a phone!! Can I ask you good folk for another reliable repairer in Gauteng for Axpert? Thanks in advance? Trevor Quote Link to comment Share on other sites More sharing options...
wael_fathe Posted February 17 Share Posted February 17 Hello ...what is the normal tempreture of output igbts heat sink I can sense it with my hand with 100 wattt load its a bit high tempreture ...since i cant tell how much the tempreture all i cab say it is bit higher than a warm heat sink...the output coil is however cold...strange since all ones i repaired coils is more heated than heat sink can any one answer the inverter is 5k qmax clone probably Quote Link to comment Share on other sites More sharing options...
Scorp007 Posted February 17 Share Posted February 17 20 hours ago, wael_fathe said: Hello ...what is the normal tempreture of output igbts heat sink I can sense it with my hand with 100 wattt load its a bit high tempreture ...since i cant tell how much the tempreture all i cab say it is bit higher than a warm heat sink...the output coil is however cold...strange since all ones i repaired coils is more heated than heat sink can any one answer the inverter is 5k qmax clone probably A normal temp is so hot that you cannot keep your finger there longer than 1sec. Not that it is just hot when you touch it. wael_fathe 1 Quote Link to comment Share on other sites More sharing options...
