April 22, 20242 yr Have you followed the setup guides and do you see the data in the developer tools? Also you should not be adding energy consuming devices to the Electicity Grid consumption unless they are outside of the inverter consumption. There is a section for individual devices in the energy dashboard. Gary previously indicated that you should be using the Total values for energy dashboard and not daily.
April 22, 20242 yr 4 hours ago, WazzaCPT said: Have you followed the setup guides and do you see the data in the developer tools? Also you should not be adding energy consuming devices to the Electicity Grid consumption unless they are outside of the inverter consumption. There is a section for individual devices in the energy dashboard. Gary previously indicated that you should be using the Total values for energy dashboard and not daily. I can see the data from the inverter, am trying to find out what should go into the Energy Settings/Configuration. Below is the usage of the data.
April 22, 20242 yr 34 minutes ago, HowserMD said: I can see the data from the inverter, am trying to find out what should go into the Energy Settings/Configuration. Below is the usage of the data. I believe you have not got the setup of everything for Slipx card loaded correctly. You need to check you essential versus load details. Have a look at the template options for the Slipx card on Gary's repo. He has number coordinated this fairl well to align with Slipx data inputs. But using some common sense also goes a long way. Here is an example of my one slipx card: type: custom:sunsynk-power-flow-card cardstyle: full show_solar: true inverter: modern: false three_phase: true battery: energy: 40960 shutdown_soc: 20 show_daily: true solar: show_daily: true mppts: 2 pv1_name: Sunsynk pv2_name: SolarEdge load: show_daily: true grid: show_daily_buy: true show_daily_sell: true show_nonessential: false entities: use_timer_248: none priority_load_243: none inverter_voltage_154: sensor.sunsynk_output_voltage_154 load_frequency_192: sensor.sunsynk_output_frequency_192 inverter_current_164: sensor.sunsynk_output_current_164 inverter_power_175: sensor.sunsynk_output_total_power_175 grid_connected_status_194: sensor.sunsynk_grid_online_194 inverter_status_59: sensor.sunsynk_inverter_status_59 day_battery_charge_70: sensor.sunsynk_battery_daily_charge_70 day_battery_discharge_71: sensor.sunsynk_battery_daily_discharge_71 battery_voltage_183: sensor.sunsynk_battery_voltage_183 battery_soc_184: sensor.sunsynk_battery_soc_184 battery_power_190: sensor.sunsynk_battery_power_190 battery_current_191: sensor.sunsynk_battery_current_191 grid_power_169: sensor.sunsynk_grid_power_169 day_grid_import_76: sensor.sunsynk_daily_grid_buy_76 day_grid_export_77: sensor.sunsynk_daily_grid_sell_77 grid_ct_power_172: sensor.sunsynk_grid_power_172 day_load_energy_84: sensor.sunsynk_daily_load_84 essential_power: sensor.sunsynk_load_power nonessential_power: none aux_power_166: none day_pv_energy_108: sensor.sunsynk_daily_pv_108 pv1_power_186: sensor.sunsynk_pv1_186 pv2_power_187: sensor.solaredge_current_power pv1_voltage_109: none pv1_current_110: none pv2_voltage_111: none pv2_current_112: none Considering that your energy values daily grid buy, daily solar and daily load have no units, I would assume that you have made a mistake somewhere as well. For the Energy Dashboard: Electricity Grid: Grid Consumption: sensor.sunsynk_grid_total You can also add any energy meters of devices installed before the CT clamps of the Sunsynk inverter to the Grid Consumption. Move devices with energy monitoring that are installed after the CT clamps for the inverter to the "Individual Devices" section. Grid Export: sensor.sunsynk_grid_total_export Solar Panels: Solar Production: sensor.sunsynk_pv_total Home Battery Storage Battery Charge: sensor.sunsynk_battery_etotalchg Battery Discharge: sensor.sunsynk_battery_etotaldischg The above is based on whether you are using the templates as Gary has them on his GitHub repo.
April 22, 20242 yr 10 minutes ago, WazzaCPT said: I believe you have not got the setup of everything for Slipx card loaded correctly. You need to check you essential versus load details. Have a look at the template options for the Slipx card on Gary's repo. He has number coordinated this fairl well to align with Slipx data inputs. But using some common sense also goes a long way. Here is an example of my one slipx card: type: custom:sunsynk-power-flow-card cardstyle: full show_solar: true inverter: modern: false three_phase: true battery: energy: 40960 shutdown_soc: 20 show_daily: true solar: show_daily: true mppts: 2 pv1_name: Sunsynk pv2_name: SolarEdge load: show_daily: true grid: show_daily_buy: true show_daily_sell: true show_nonessential: false entities: use_timer_248: none priority_load_243: none inverter_voltage_154: sensor.sunsynk_output_voltage_154 load_frequency_192: sensor.sunsynk_output_frequency_192 inverter_current_164: sensor.sunsynk_output_current_164 inverter_power_175: sensor.sunsynk_output_total_power_175 grid_connected_status_194: sensor.sunsynk_grid_online_194 inverter_status_59: sensor.sunsynk_inverter_status_59 day_battery_charge_70: sensor.sunsynk_battery_daily_charge_70 day_battery_discharge_71: sensor.sunsynk_battery_daily_discharge_71 battery_voltage_183: sensor.sunsynk_battery_voltage_183 battery_soc_184: sensor.sunsynk_battery_soc_184 battery_power_190: sensor.sunsynk_battery_power_190 battery_current_191: sensor.sunsynk_battery_current_191 grid_power_169: sensor.sunsynk_grid_power_169 day_grid_import_76: sensor.sunsynk_daily_grid_buy_76 day_grid_export_77: sensor.sunsynk_daily_grid_sell_77 grid_ct_power_172: sensor.sunsynk_grid_power_172 day_load_energy_84: sensor.sunsynk_daily_load_84 essential_power: sensor.sunsynk_load_power nonessential_power: none aux_power_166: none day_pv_energy_108: sensor.sunsynk_daily_pv_108 pv1_power_186: sensor.sunsynk_pv1_186 pv2_power_187: sensor.solaredge_current_power pv1_voltage_109: none pv1_current_110: none pv2_voltage_111: none pv2_current_112: none Considering that your energy values daily grid buy, daily solar and daily load have no units, I would assume that you have made a mistake somewhere as well. For the Energy Dashboard: Electricity Grid: Grid Consumption: sensor.sunsynk_grid_total You can also add any energy meters of devices installed before the CT clamps of the Sunsynk inverter to the Grid Consumption. Move devices with energy monitoring that are installed after the CT clamps for the inverter to the "Individual Devices" section. Grid Export: sensor.sunsynk_grid_total_export Solar Panels: Solar Production: sensor.sunsynk_pv_total Home Battery Storage Battery Charge: sensor.sunsynk_battery_etotalchg Battery Discharge: sensor.sunsynk_battery_etotaldischg The above is based on whether you are using the templates as Gary has them on his GitHub repo. as far as the current repository, grid sell and buy do not have units. Let me know where I went wrong with the above.
April 22, 20242 yr @HowserMD you need to add a unit of measurement or setup your own daily energy meter within HA using the total energy sensors. - sensor: - name: "Sunsynk Battery Daily Charge 70" state: > {{state_attr('sensor.sunsynk_battery', 'etodayChg')|float(0)|round(1)}} unit_of_measurement: kWh - name: "Sunsynk Battery Daily Discharge 71" state: > {{state_attr('sensor.sunsynk_battery', 'etodayDischg')|float(0)|round(1)}} unit_of_measurement: kWh
April 23, 20242 yr 14 hours ago, slipx said: @HowserMD you need to add a unit of measurement or setup your own daily energy meter within HA using the total energy sensors. - sensor: - name: "Sunsynk Battery Daily Charge 70" state: > {{state_attr('sensor.sunsynk_battery', 'etodayChg')|float(0)|round(1)}} unit_of_measurement: kWh - name: "Sunsynk Battery Daily Discharge 71" state: > {{state_attr('sensor.sunsynk_battery', 'etodayDischg')|float(0)|round(1)}} unit_of_measurement: kWh I have added the units, thanks @slipx
May 31, 20242 yr @slipx at one point you had a map-out of the card showing the Modbus Register numbers on the card itself. Do you still have it or an updated one, can't seem to find it here or on github?
May 31, 20242 yr HI. At the bottom of this page https://slipx06.github.io/sunsynk-power-flow-card/configuration.html
June 6, 20242 yr Hello all, Marginally off topic but also on topic. Does anyone here know of a wifi enabled meter that's approved by CoCT? I'm wanting to set up a prompt and be able to load and track units via these home assistant widgets without having to go up to the box because it's in an awkward location and doesn't have a backlight in the dark. I've been tracking usage via home assistant and this sunsynk hass app but it's such a pain to go to the meter and enter in the entire 10digit string hopefully correct when i could just buy and copy paste into hass...
June 10, 20242 yr On 2024/06/06 at 3:41 PM, SteveRCT said: Hello all, Marginally off topic but also on topic. Does anyone here know of a wifi enabled meter that's approved by CoCT? I'm wanting to set up a prompt and be able to load and track units via these home assistant widgets without having to go up to the box because it's in an awkward location and doesn't have a backlight in the dark. I've been tracking usage via home assistant and this sunsynk hass app but it's such a pain to go to the meter and enter in the entire 10digit string hopefully correct when i could just buy and copy paste into hass... I would also be interested to know this. From what I know there is nothing currently that provides any type of connected system that works on the CoCT. The best would to move over to the new affordable post paid meter. Those meters typically have a data output which may be able to link to HA.
July 3, 20242 yr Hi All have been plugging away at getting this deployed for a couple of days, and lost as to where I’m going wrong. followed v2.4 instructions but still getting the entities listing as unavailable in HA. logger update time is set to 60s, long life token sorted. any pointers would be welcome! thanks ben
July 3, 20242 yr Hi All have been plugging away at getting this deployed for a couple of days, and lost as to where I’m going wrong. followed v2.4 instructions but still getting the entities listing as unavailable in HA. logger update time is set to 60s, long life token sorted. any pointers would be welcome! thanks ben

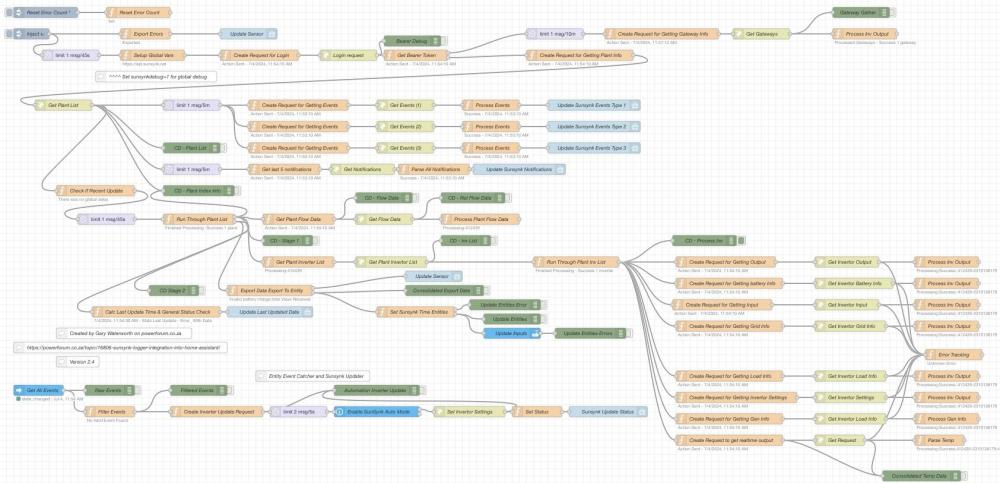

July 4, 20242 yr Author 13 hours ago, Bensalt said: Hi All have been plugging away at getting this deployed for a couple of days, and lost as to where I’m going wrong. followed v2.4 instructions but still getting the entities listing as unavailable in HA. logger update time is set to 60s, long life token sorted. any pointers would be welcome! thanks ben Show screenshots of teh nodered flows please
July 4, 20242 yr Author 45 minutes ago, Bcsalt said: It is moaning about the "total battery charge" figure being returned This a VERY new install ? if (parseFloat(do_value__consolid(global.get("SS_Consolid.Plant"), "battery.etotalChg")) === 0) { node.status("Invalid battery charge total Value Received"); global.set("SS_Export_Data.inverter.status", 0); return null; } Edited July 4, 20242 yr by Gary Waterworth
July 4, 20242 yr Install as of about 5 days ago so yes! there is no battery connected to the system (yet…), and that is set correctly in the Sunsynk inverter settings
July 4, 20242 yr Author 11 minutes ago, Bcsalt said: Install as of about 5 days ago so yes! there is no battery connected to the system (yet…), and that is set correctly in the Sunsynk inverter settings That is why it is not working. Assumes you have a Env with Inverter + Battery Can make a change at some point to cater for it, just have a heavy workload atm This is one of many checks put in to catch when Synsynk updates with "bad" data Edited July 4, 20242 yr by Gary Waterworth
July 4, 20242 yr Gotcha, glad it wasn’t just me being unable to follow instructions! no worries, thanks for your help!
July 4, 20242 yr Set the lines of code relating to battery in the export data to be ignored and all other useful numbers are coming across to HA. Quick fix while I go and order my battery… Thanks again
August 7, 20241 yr I have 3 parallel sunsynk inverters each with 2 MPPT's It pulls in the PV1 and PV2 of the master, it also pulls in the total (which includes the other two inverters luckily) Can I modify the code-red config to somehow poll the other 2 inverters (it can see them in the list) and just pull in the PV1 and PV2 of each of those, so I can monitor them? I can obviously work out totals etc manually.
August 7, 20241 yr 1 hour ago, Inigo Montoya said: I have 3 parallel sunsynk inverters each with 2 MPPT's It pulls in the PV1 and PV2 of the master, it also pulls in the total (which includes the other two inverters luckily) Can I modify the code-red config to somehow poll the other 2 inverters (it can see them in the list) and just pull in the PV1 and PV2 of each of those, so I can monitor them? I can obviously work out totals etc manually. Hello Inigo, The config and node-red already support getting the data of each PV array on each inverter on the system. If you have a look at the Usable PV entry you should see PV1 through to PV3 based on how many inverters you have data polling from. So, if you see 1 through to 6 then all three inverters are been read correctly. 1 + 2 would be Inverter1, 3 + 4 would be Inverter2 and 5 + 6 would be inverter3. From there all you need to do is adjust you template sensors by adding the additional sensors for the rest of the MPPT channels.
August 7, 20241 yr Author 1 hour ago, WazzaCPT said: Hello Inigo, The config and node-red already support getting the data of each PV array on each inverter on the system. If you have a look at the Usable PV entry you should see PV1 through to PV3 based on how many inverters you have data polling from. So, if you see 1 through to 6 then all three inverters are been read correctly. 1 + 2 would be Inverter1, 3 + 4 would be Inverter2 and 5 + 6 would be inverter3. From there all you need to do is adjust you template sensors by adding the additional sensors for the rest of the MPPT channels. Not completely correct The values above depend on how the inverters are seen. All data is gathered from all inverters , but the totals above are dictated by the logic in 1_? to 4_? are the MPPT strings seen and should be a total of the same number mppt string on each of the inverters I am assuming this is a 3phase system You can happily modify the export function to total anyway you wish and add in extra fields that are exported Unfortunately with all teh variations of systems out there I cannot support individual systems The raw data which should allready be gathered for all inverters is available in the global context data area
August 8, 20241 yr On 2024/08/07 at 9:42 AM, WazzaCPT said: Hello Inigo, The config and node-red already support getting the data of each PV array on each inverter on the system. If you have a look at the Usable PV entry you should see PV1 through to PV3 based on how many inverters you have data polling from. So, if you see 1 through to 6 then all three inverters are been read correctly. 1 + 2 would be Inverter1, 3 + 4 would be Inverter2 and 5 + 6 would be inverter3. From there all you need to do is adjust you template sensors by adding the additional sensors for the rest of the MPPT channels. The usable_pv entry is very simular to yours, 1-4 only. 1 and 2 showing the correct values from master mppt1 and mppt2. sensor.sunsynk_usable_pv 1_power: 498 1_current: 2 1_volt: 258.2 2_power: 625 2_current: 2.1 2_volt: 339.2 3_power: 0 3_current: 0 3_volt: 0 4_power: 0 4_current: 0 4_volt: 0 power: 1123 current: 4.1 etotal: 493.9 etoday: 4
August 8, 20241 yr On 2024/08/07 at 10:58 AM, Gary Waterworth said: Not completely correct The values above depend on how the inverters are seen. All data is gathered from all inverters , but the totals above are dictated by the logic in 1_? to 4_? are the MPPT strings seen and should be a total of the same number mppt string on each of the inverters I am assuming this is a 3phase system You can happily modify the export function to total anyway you wish and add in extra fields that are exported Unfortunately with all teh variations of systems out there I cannot support individual systems The raw data which should allready be gathered for all inverters is available in the global context data area I think this is where the issue is coming from. It's not a 3 phase system, its 3 inverters on a single phase. In the SS_Consolid it has the listplant correct and it has the listinverters showing all 3. But I cannot for the life of me find the PV data from the slave inverters. Which in turn is obviously not shown elsewhere.
August 8, 20241 yr Hi, Is it possible to connect to the mag-pie dongle directly and get data from (and adjust parameters on) the Sunsynk inverters locally like some do with the Solarman dongles on Deye inverteres?
