January 26, 20233 yr Hi All, Was wondering if anyone had info on this cable that i purchased. It has USB but on other side a few wires that i need to crimp to RJ45. Not sure of order with this colour scheme. Any help appreciated. Thanks
January 26, 20233 yr A google search gave this, but obviously use on your own risk... Si-Sensor Victron RS485 to USB interface Signal Brown Orange RS485 Data A + Orange Yellow RS485 Data B - Red - Power Pos - 12 to 28 VDC Black Power Neg/Gnd - 0 VDC Black (thick) - Ground / Cable Shield / PE - Red Power Pos - 5 VDC (not used) - Black Power Neg/Gnd - 0 VDC (not used) Brown Terminator 1 - 120R (not used) Green Terminator 2 - 120R (not used)
January 26, 20233 yr On 2023/01/20 at 12:56 PM, Decsus said: Does a wrong serial number (not modbus SN) affect the connection at this stage, if so where do I get the correct one? I have tried all of these, thus also a second USB-rs485 module Can the mbusd also run on the same Raspi, or must i get a second device (pi or similar) to run that? Also what does this mean? 2023-01-20 12:55:37,640 ERROR Read Error: (1,16,2) CRC validation failed. The wrong serial nr in the config does not affect reading the serial from the device... It will tell you if the number was wrong. mbusd can run anywhere, including the same pi A crc error can be due to bad wiring/not using a pair/a bad cable/bad module/too much interference/you trying everything and causing the smoke to escape...
January 27, 20233 yr 10 hours ago, kellerza said: A google search gave this, but obviously use on your own risk... Si-Sensor Victron RS485 to USB interface Signal Brown Orange RS485 Data A + Orange Yellow RS485 Data B - Red - Power Pos - 12 to 28 VDC Black Power Neg/Gnd - 0 VDC Black (thick) - Ground / Cable Shield / PE - Red Power Pos - 5 VDC (not used) - Black Power Neg/Gnd - 0 VDC (not used) Brown Terminator 1 - 120R (not used) Green Terminator 2 - 120R (not used) Thank you @kellerza. I see that matches with my other image i found. So B(Yellow) to RJ45 pin 1 A(Orange) to RJ45 pin2 GND(Black) to RJ45 pin3 and i should be good to go? Thanks for your lib.
January 27, 20233 yr 12 hours ago, kellerza said: The wrong serial nr in the config does not affect reading the serial from the device... It will tell you if the number was wrong. mbusd can run anywhere, including the same pi A crc error can be due to bad wiring/not using a pair/a bad cable/bad module/too much interference/you trying everything and causing the smoke to escape... @kellerzaSeems to have worked i think?
January 27, 20233 yr Thanks @kellerza Just an update. I made use of said cable above and crimped Orange, Yellow and Black to pins 1,2,3 on the RJ45. I made use of KellerZa repo which worked straight away but with some timeout issues which i thought wasnt refreshing the data quick enough. i added more sensors and did some tests and data seems to be coming quicker on MQTT now. example of my Sunsynk Yaml which i edited from the add-on: PORT: "" DEVICE: /dev/serial/by-id/usb-FTDI_FT232R_USB_UART_A10KD3ZH-if00-port0 DRIVER: umodbus SUNSYNK_ID: "2209133222" SENSOR_PREFIX: "" SENSORS: - total_pv_power - total_battery_charge - total_battery_discharge - total_grid_export - total_grid_import - battery_soc - battery_temperature - grid_voltage - battery_power - inverter_power - load_power - grid_power - battery_voltage - overall_state - grid_connected_status - total_active_energy - total_pv_energy - rated_power - pv1_power - pv2_power READ_SENSORS_BATCH_SIZE: 60 NUMBER_ENTITY_MODE: auto PROFILES: [] MODBUS_SERVER_ID: 1 MQTT_HOST: core-mosquitto MQTT_PORT: 1883 MQTT_USERNAME: admin MQTT_PASSWORD: <pwd> DEBUG: 2
February 7, 20233 yr Author @jacauc Have you noticed any issues with the ESP32 and reading you are getting from it after the latest updates? I started getting all sorts of weird reading SOC @ 3800 etc after I did some updates on the 5th. I think it may have something to do with the updates of Home Assistant core from 2023.1.7 to version 2023.3.2 as when I roll it back the issues go away. Was wondering if you have experienced the same issue?
February 7, 20233 yr 7 hours ago, Sc00bs said: @jacauc Have you noticed any issues with the ESP32 and reading you are getting from it after the latest updates? I started getting all sorts of weird reading SOC @ 3800 etc after I did some updates on the 5th. I think it may have something to do with the updates of Home Assistant core from 2023.1.7 to version 2023.3.2 as when I roll it back the issues go away. Was wondering if you have experienced the same issue? No issues whatsoever. Running bleeding edge of HA and ESPHOME.
February 7, 20233 yr Author Thanks Jacauc, will build another one and see if it is a hardware issue causing the problem
February 7, 20233 yr Author Strange, am getting CRC errors in the logs on the ESP32 [22:20:38][W][modbus:105]: Modbus CRC Check failed! B969!=604 [22:20:38][W][modbus:105]: Modbus CRC Check failed! 3A13!=FFFF [22:20:39][W][modbus:105]: Modbus CRC Check failed! C0C1!=403 [22:20:39][W][modbus:105]: Modbus CRC Check failed! CE1!=7F7F [22:20:39][W][modbus:105]: Modbus CRC Check failed! 840!=7FFF [22:20:39][W][modbus:105]: Modbus CRC Check failed! E041!=FF7F
February 7, 20233 yr Not sure if related, but is your inverter set up for Modbus ID #1? Also have a good look at the cabling between the esp and the inverter Edited February 7, 20233 yr by jacauc
February 19, 20233 yr Hi everyone. A simple display showing just the SoC on a LCD screen for occupants to know makes a big difference in behavioural change of a household. How can i tead that of the modbus (with an esp32) and sent the data to a display on another esp32 with and lcd screen? Can anyone help?
February 19, 20233 yr Author Hi @TinkerGuy I have been thinking of doing this exact thing at home 🙂 I think that the easiest would be to use ESPhome as it is pretty easy to do, was actually playing around with some options using either a number of individually addressable LED's to create a type of fuel gauge or alternatively use a OLED or LCD Screen. I liked the idea of using WS2812 strips, trhey can be individually switched on and off and the colour can be changed when SOC gets low. Maybe have a second strip to indicate load shedding and then a 3rd one for the amount of power going in/out the battery. ChatGPT can actually write most of the code for you 🙂
February 20, 20233 yr 9 hours ago, Sc00bs said: Hi @TinkerGuy I have been thinking of doing this exact thing at home 🙂 I think that the easiest would be to use ESPhome as it is pretty easy to do, was actually playing around with some options using either a number of individually addressable LED's to create a type of fuel gauge or alternatively use a OLED or LCD Screen. I liked the idea of using WS2812 strips, trhey can be individually switched on and off and the colour can be changed when SOC gets low. Maybe have a second strip to indicate load shedding and then a 3rd one for the amount of power going in/out the battery. ChatGPT can actually write most of the code for you 🙂 If your inverter is far from the living area you could also consider using another esp32 board elsewhere in the house reading values from home assistant or mqtt and adjusting the display accordingly. I've played around with displays with built-in I2C modules and it's dead easy. Make sure you use I2C displays otherwise cabling is way more complex
February 20, 20233 yr 20 hours ago, TinkerGuy said: How can i tead that of the modbus (with an esp32) and sent the data to a display on another esp32 with and lcd screen? Can anyone help? What is your current setup with regards to data collection? Do you run home assistant? It is dead easy to subscribe to a MQTT topic with an ESP and write the value to a screen, assuming you can do some basic programming. I like @Sc00bs's idea of using a neopixel strip. Personally I use telegram and it sends out a message when the power goes off/on with the current battery percentage. Since we have solar we do not really look at the schedules a lot. When the battery is low you obviously have to pay attention
February 20, 20233 yr Author Are you running Home Assistant @TinkerGuy? If not, you could use the Node Red flows at https://github.com/gdwaterworth/Home-Assistant---E-Linter-Logger---Sunsynk to query the Sunsynk cloud directly and pull the SOC data from there and display it on an LCD panel. A Raspberry Pi Zero should be able to do it.
February 24, 20233 yr Thought I would also contribute with something small. Not as impressive as what some of the others here but a contribution nonetheless. The GUI for Sunsynk System Mode, or lack thereof, has really been annoying me, so I put this together. It needed to be easy to read to quickly understand what's going on, and also easy for the wife to change if needed. It requires the lovelace-layout-card to work. For my purposes, it's also a separate view. views: - theme: Backend-selected title: Grid layout type: custom:grid-layout layout: grid-template-columns: 3fr 2fr 2fr 3fr grid-template-rows: auto grid-template-areas: | ". header header ." ". system priority ." ". prog1 prog2 ." ". prog3 prog4 ." ". prog5 prog6 ." mediaquery: '(max-width: 800px)': grid-template-columns: auto grid-template-areas: | "header" "system" "priority" "prog1" "prog2" "prog3" "prog4" "prog5" "prog6" badges: [] cards: - type: entities entities: - entity: select.system_mode show_header_toggle: false view_layout: grid-area: system - type: vertical-stack cards: - type: custom:mushroom-template-card primary: Program 1 secondary: >- {{ states("select.prog1_time") }} - {{ states("select.prog2_time") }} icon: mdi:timer multiline_secondary: false badge_icon: mdi:lightning-bolt icon_color: blue badge_color: green fill_container: false - type: horizontal-stack cards: - type: entities entities: - entity: select.prog1_time - type: entities entities: - entity: select.prog1_charge - type: entities entities: - type: custom:slider-entity-row entity: number.prog1_power name: Power grow: true - type: custom:slider-entity-row entity: number.prog1_capacity name: Battery SOC view_layout: grid-area: prog1 - type: vertical-stack cards: - type: custom:mushroom-template-card primary: Program 2 secondary: >- {{ states("select.prog2_time") }} - {{ states("select.prog3_time") }} icon: mdi:timer multiline_secondary: false badge_icon: mdi:lightning-bolt icon_color: blue badge_color: green fill_container: false - type: horizontal-stack cards: - type: entities entities: - entity: select.prog2_time - type: entities entities: - entity: select.prog2_charge - type: entities entities: - type: custom:slider-entity-row entity: number.prog2_power name: Power grow: true - type: custom:slider-entity-row entity: number.prog2_capacity name: Battery SOC view_layout: grid-area: prog2 - type: vertical-stack cards: - type: custom:mushroom-template-card primary: Program 3 secondary: >- {{ states("select.prog3_time") }} - {{ states("select.prog4_time") }} icon: mdi:timer multiline_secondary: false badge_icon: mdi:lightning-bolt icon_color: blue badge_color: green fill_container: false - type: horizontal-stack cards: - type: entities entities: - entity: select.prog3_time - type: entities entities: - entity: select.prog3_charge - type: entities entities: - type: custom:slider-entity-row entity: number.prog3_power name: Power grow: true - type: custom:slider-entity-row entity: number.prog3_capacity name: Battery SOC view_layout: grid-area: prog3 - type: vertical-stack cards: - type: custom:mushroom-template-card primary: Program 4 secondary: >- {{ states("select.prog4_time") }} - {{ states("select.prog5_time") }} icon: mdi:timer multiline_secondary: false badge_icon: mdi:lightning-bolt icon_color: blue badge_color: green fill_container: false - type: horizontal-stack cards: - type: entities entities: - entity: select.prog4_time - type: entities entities: - entity: select.prog4_charge - type: entities entities: - type: custom:slider-entity-row entity: number.prog4_power name: Power grow: true - type: custom:slider-entity-row entity: number.prog4_capacity name: Battery SOC view_layout: grid-area: prog4 - type: vertical-stack cards: - type: custom:mushroom-template-card primary: Program 5 secondary: >- {{ states("select.prog5_time") }} - {{ states("select.prog6_time") }} icon: mdi:timer multiline_secondary: false badge_icon: mdi:lightning-bolt icon_color: blue badge_color: green fill_container: false - type: horizontal-stack cards: - type: entities entities: - entity: select.prog5_time - type: entities entities: - entity: select.prog5_charge - type: entities entities: - type: custom:slider-entity-row entity: number.prog5_power name: Power grow: true - type: custom:slider-entity-row entity: number.prog5_capacity name: Battery SOC view_layout: grid-area: prog5 - type: vertical-stack cards: - type: custom:mushroom-template-card primary: Program 6 secondary: >- {{ states("select.prog6_time") }} - {{ states("select.prog1_time") }} icon: mdi:timer multiline_secondary: false badge_icon: mdi:lightning-bolt icon_color: blue badge_color: green fill_container: false - type: horizontal-stack cards: - type: entities entities: - entity: select.prog6_time - type: entities entities: - entity: select.prog6_charge - type: entities entities: - type: custom:slider-entity-row entity: number.prog6_power name: Power grow: true - type: custom:slider-entity-row entity: number.prog6_capacity name: Battery SOC view_layout: grid-area: prog6 - type: custom:mushroom-title-card title: Sunsynk System Mode alignment: center view_layout: grid-area: header - type: entities entities: - entity: select.priority_mode view_layout: grid-area: priority
February 25, 20233 yr 12 hours ago, Rynoster said: The GUI for Sunsynk System Mode, or lack thereof... Very nice layout @Rynoster! Another quick option is the "Add to dashboard" button, available in the Home Assistant settings (Settings->Devices&Services-->Devices-->Sunsynk). But the layout is not as slick. The dashboard I use you have to click to change a value. It still provides an overview, but it's not so easy to accidentally change a setting 😉
February 26, 20233 yr Author Hi @TinkerGuy Put an LCD display together to display the values I desired from the data I am pulling from the Inverter. I used ESPhome to do it so still working out how it all works but not too difficult to do. Going to play around with it a bit more and may see what the coloured LED bars looks like as well . I suspect that the coloured bars may be more useful for a quick glance to see what is going on.
February 27, 20233 yr Author Updated 🙂 Code is way simple esphome: name: esphome-web-c99f28 friendly_name: LCD Display esp32: board: esp32dev framework: type: arduino # Enable logging logger: # Enable Home Assistant API api: encryption: key: "?????????????????????????????????????????" ota: wifi: ssid: !secret wifi_ssid password: !secret wifi_password # Enable fallback hotspot (captive portal) in case wifi connection fails ap: ssid: "Esphome-Web-C99F28" password: "GjiirKa2VeFe" captive_portal: # Example configuration entry i2c: sda: 21 scl: 22 sensor: - platform: homeassistant id: battery_soc entity_id: sensor.ss_battery_soc internal: true - platform: homeassistant id: grid_frequency entity_id: sensor.ss_grid_frequency internal: true - platform: homeassistant id: inverter_power entity_id: sensor.ss_inverter_output_power internal: true - platform: homeassistant id: total_pv entity_id: sensor.ss_total_pv_power internal: true display: - platform: lcd_pcf8574 dimensions: 20x4 address: 0x27 update_interval: 5s lambda: |- it.printf(0, 0, " SOC: %.1f %", id(battery_soc).state); it.printf(0, 1, " Grid Freq: %.1f Hz", id(grid_frequency).state); it.printf(0, 2, " Inver Power: %.1f W", id(inverter_power).state); it.printf(0, 3, " Total PV: %.1f W", id(total_pv).state);
February 27, 20233 yr On 2023/02/25 at 6:25 AM, kellerza said: Very nice layout @Rynoster! Another quick option is the "Add to dashboard" button, available in the Home Assistant settings (Settings->Devices&Services-->Devices-->Sunsynk). But the layout is not as slick. The dashboard I use you have to click to change a value. It still provides an overview, but it's not so easy to accidentally change a setting 😉 Thanks kellerza, appreciate the response. To be fair, us "techies" enjoy fixing broken stuff, almost more than half the fun, so an accidental setting here or there contributes to the fun. 😛
February 27, 20233 yr Author 57 minutes ago, Rynoster said: Thanks kellerza, appreciate the response. To be fair, us "techies" enjoy fixing broken stuff, almost more than half the fun, so an accidental setting here or there contributes to the fun. 😛 Or fix it till it is totally broken 🙂

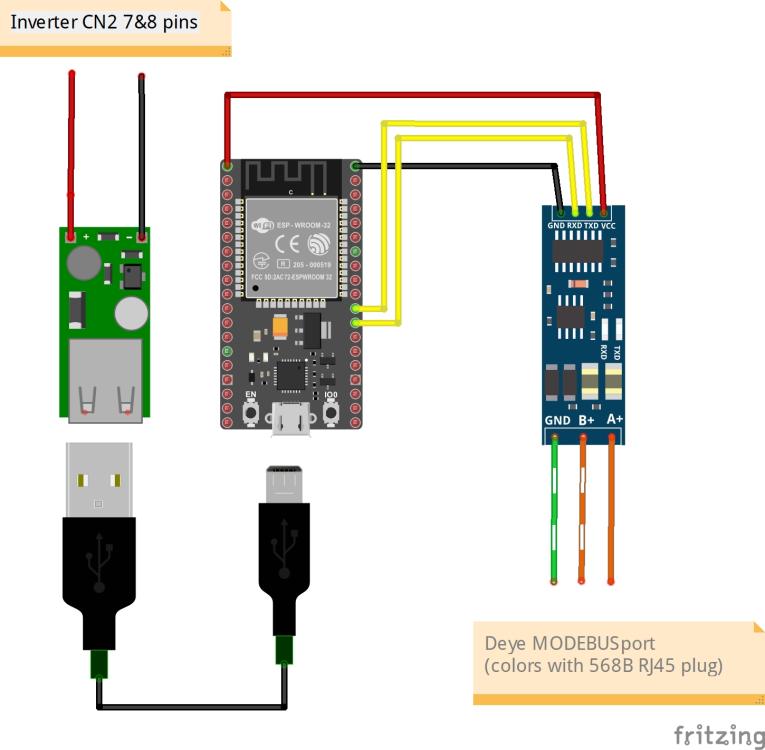

March 1, 20233 yr On 2023/01/08 at 8:43 PM, Klatremis said: I only made this user to share this 🤣 Thanks all for the inspiration. Exactly as BrettC suggest, I made this in the weekend for my deye I have shared it with some hundreds other danish deye owners and waiting for more feedback. The adresses i use is matching my 12kW 3 phase, low voltage hybrid deye inverter. I seems for me that the modbus adresses does not match your sunsync inverters(deye inverters). github.com/klatremis/esphome-for-deye Hello, First of all, a big thanks for the different contributors who made an outstanding job and share it after with the community. With this solution (ESP32 and ESPHome) to retrieve/write data to the Deye inverters, how fast is it possible to retrieve data from the inverter? Every second, every 5 seconds, every 30 secs...?? Thanks,
