reapster

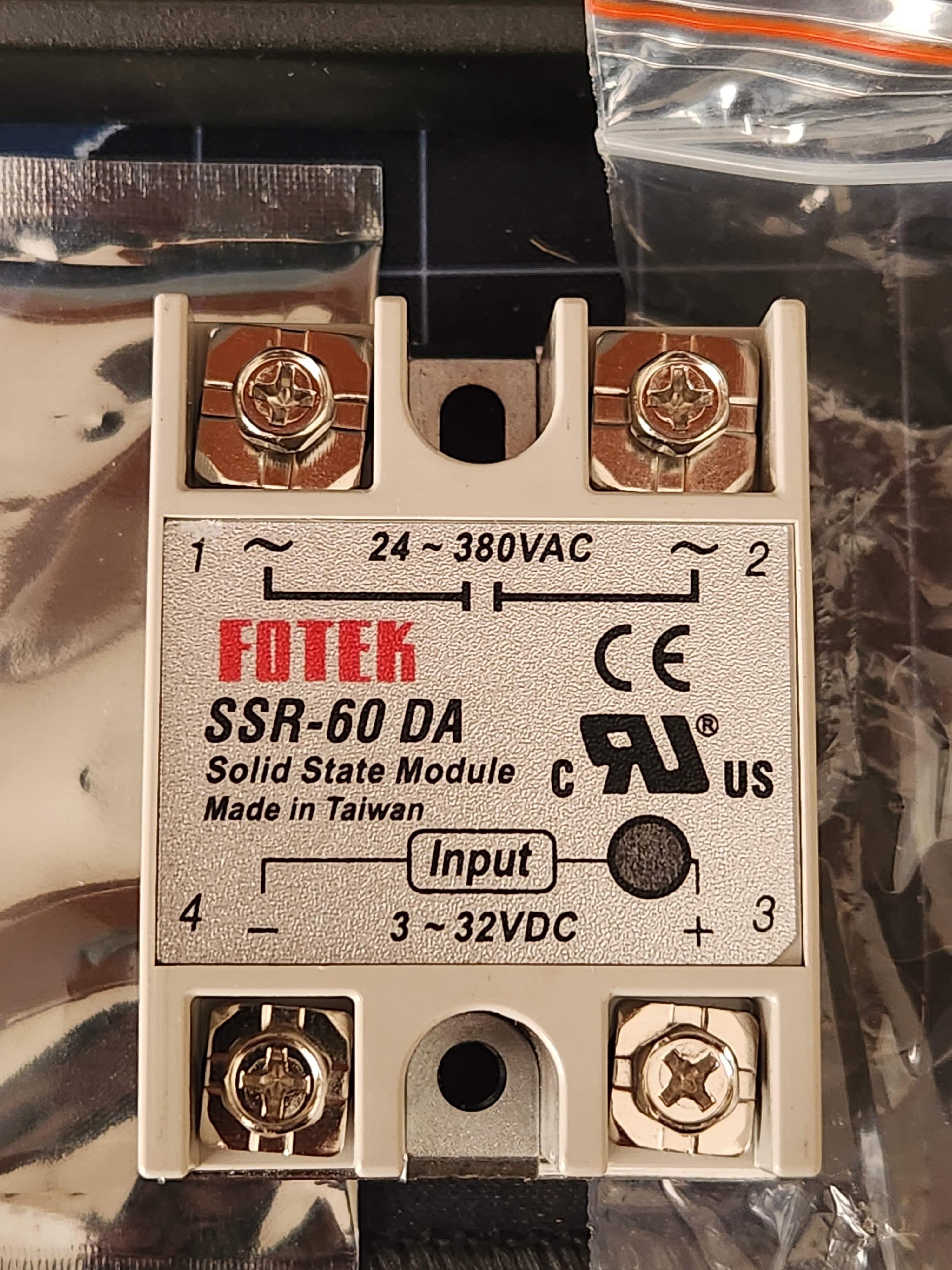

Went down this road recently. Worth keeping in mind that most SSRs sold locally are fakes, specifically fotek fakes. See: https://protosupplies.com/inferior-counterfeit-fotek-ssr-25-solid-state-relays-on-the-market/ I recently purchased from a local supplier (I don't blame them, I expect they weren't aware - I'm just trying to point out that we are likely not buying real/properly rated SSRs here), and it was sold as a "SSR-60 DA", implying 60A rated switching current. After realising this is likely not a real fotek (no datasheet available for this alleged model from fotek, which is a reputable brand), turns out its got a 40A BTA41 1000B triac inside, which in all fairness is way better than what I expected given that its absolutely not a legitimate fotek SSR. Just know what you're getting. Given these tend to fail closed, I'd never trust a locally sourced SSR after this.

Ah, fair enough, the Tuya or CBI apps kinda suck with the breakdown of usage over time, agreed. I got them since they work with Home Assistant, which does do a nice graph. I also have used a Nanoview in the past which I think can do 16 CTs, but that was also feeding into Grafana for graphing which needed some modifications. Good luck!

There's the CBI Astute Smart Controller (grabbed one today for my geyser - Voltex has them for R465 right now) that is allegedly just a rebranded Tuya, and Tuya-compatible, that measures kWh. Dual rail compatible (mini/samite and DIN).

I have 2 setups with a Pi monitoring the batteries via the RS232 port (I just use a MAX2232 module to do the TTL<->RS232 level conversion, but the USB<->RS232 devices work great too), using https://github.com/Tertiush/bmspace. Works great, and goes into home assistant. I've also gotten PBMSTools to work remotely with ser2net to read out the logs which was helpful. They're standard PACE BMS's though, so anything that talks to Hubble/Revov/SVolt (and many, many others) etc will work.

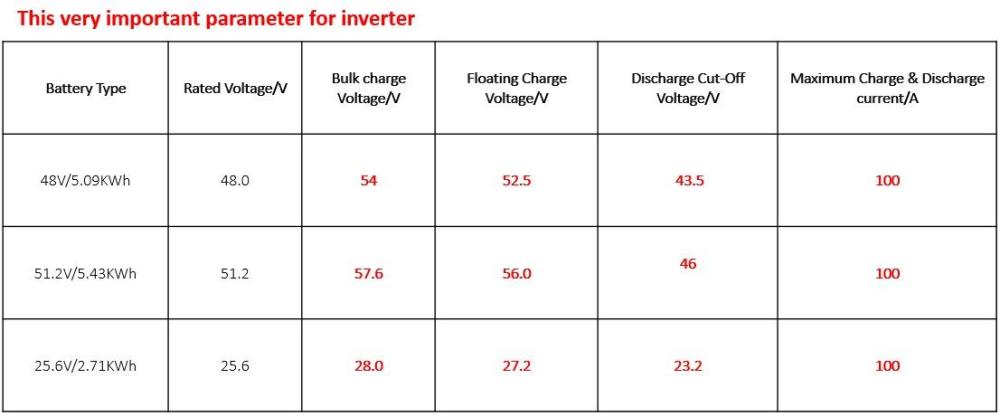

some "gotchas" for balancing these: The SVolts PACE BMS is set to start balancing at 3.5v/cell, 20mv difference (so anything less and it wont kick in). They will keep balancing once OVP is hit at least, so that helps a bit. If at any point it sees a discharge, balancing stops immediately - so, if you have a bulk and float, and the current drops and it drops to float, balancing stops. I usually set float and balance the same when trying to get these (PACE BMS based batteries) balanced. SVolt recently changed their recommended voltages to the below:

Apologies if you've already done this, but worth asking: Did you set the DIP switches on the batteries? On the 1st battery, just switch 1 should be on, on the 2nd, only 2 should be on/up. I think they come with all down which likely wont work with RS485. The SVolt batteries do default to the Pylontech protocol as you've stated, as far as I'm aware.

From SVolt tech support:

Claimed/collected by @WannabeSolarSparky - was great to meet you!

If anyone wants the below, free to anyone willing to collect (Southern Suburbs, CPT)

Apologies for resurrecting an old thread - just dealt with an old Axpert 5kVA (Synerji rebrand of an Axpert MKS 5K) with a blown PAR board. When testing/fixing another similar (the 0.8 PF version) inverter, it ran fine without this board. In the case of the current unit, the board was blown badly, similar to that in the first post. Removing it seems to have no effect, and the inverter functions fine, charging and on battery. (This unit is a single unit, no parallel setup at all) I had assumed this was the "current-sharing" board, or something to do with handling parallel connections (mostly based on it being called the 'PAR' board in the service manual), but my understanding is nothing compared to @Coulomb's - Just wanted to update with some anecdotal experience! Keen to hear anyone elses thoughts and have my (admittedly limited) understanding corrected!

Seems like such a thing called a rotary phase converter exists, which seems pretty interesting, and, possible to DIY (its pretty much 3-phase motor with some capacitors and drop-out relay) it seems.

Depending on your Aircon (eg, Midea - https://esphome.io/components/climate/midea.html), it might be possible to add an esp8266/esp32/ESPHome to it and go the home assistant route there, if you are up for that. EDIT: Sorry - saw you were just using aircons as an example, my bad.

The Pace BMS typically keeps the last 400 or so events/alarms timestamped, I'd guess this is what they use to assist in their warranty-denying escapades. But wow, thats a pretty terrible customer experience.

Altergrid mentioned they expecting them around mid-August

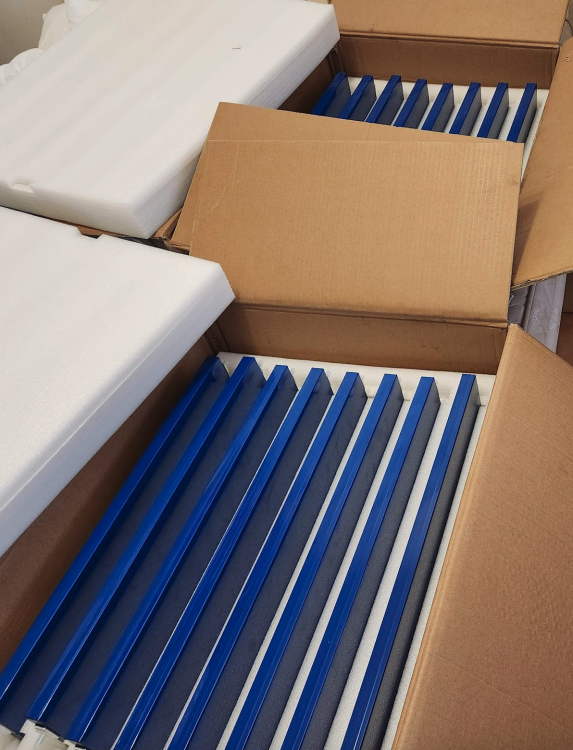

Just got 16 of these too! As mentioned previously, all pretty much perfectly balanced (within 1-2mv) Just waiting on the clips + bus bars too now.
