Pylontech Console Cable


FixAMess
 Share

Recommended Posts

I'm looking for such a cable, does anybody know where I can get one made up in SA?

CONSOLE PORT (RJ-11 connector) pylontech battery cable as below, its to talk natively to the US3000 battery BMS.

 It comes from Yodas post;

https://powerforum.co.za/topic/2322-youdas-off-grid-lab/page/2/?tab=comments#comment-53641Here's the wiring:










Edited by FixAMess
Update
Link to comment
Share on other sites

  • 7 months later...
On 15/4/2020 at 10:11, FixAMess said:

Estoy buscando un cable de este tipo, ¿alguien sabe dónde puedo conseguir uno en SA?

PUERTO DE CONSOLA  (conector RJ-11) cable de batería pylontech como se muestra a continuación, es para hablar de forma nativa con el BMS de la batería US3000.

 Viene de la publicación de Yodas;

https://powerforum.co.za/topic/2322-youdas-off-grid-lab/page/2/?tab=comments#comment-53641 Aquí está el cableado:










Hello dear, I am able to manufacture the cable, I have searched many parts but I have not found a clear scheme, a man from South Africa sold me one, but he sold it as a precious stone.

Link to comment
Share on other sites

  • 2 months later...

I manufactured one for myself, thanks to the schematics above. For the moment I have only 8 US3000 batteries, but I will add another 4 plus a LV Hub, so I will end up with 2 separate banks of 6 batteries. I assume that there is no solution to monitor all connected banks with one cable, but each bank itself...so either you just move the cable from bank to another, or you have one cable per bank. Correct?

Link to comment
Share on other sites

  • 3 weeks later...
On 2021/02/24 at 8:42 AM, cristimv said:

I manufactured one for myself, thanks to the schematics above. For the moment I have only 8 US3000 batteries, but I will add another 4 plus a LV Hub, so I will end up with 2 separate banks of 6 batteries. I assume that there is no solution to monitor all connected banks with one cable, but each bank itself...so either you just move the cable from bank to another, or you have one cable per bank. Correct?

With US3000C you can now connect up to 16 units in one stack without LV Hub.



Link to comment
Share on other sites

On 2020/04/15 at 4:11 PM, FixAMess said:

I'm looking for such a cable, does anybody know where I can get one made up in SA?

CONSOLE PORT (RJ-11 connector) pylontech battery cable as below, its to talk natively to the US3000 battery BMS.

 It comes from Yodas post;

https://powerforum.co.za/topic/2322-youdas-off-grid-lab/page/2/?tab=comments#comment-53641Here's the wiring:












Link to comment
Share on other sites

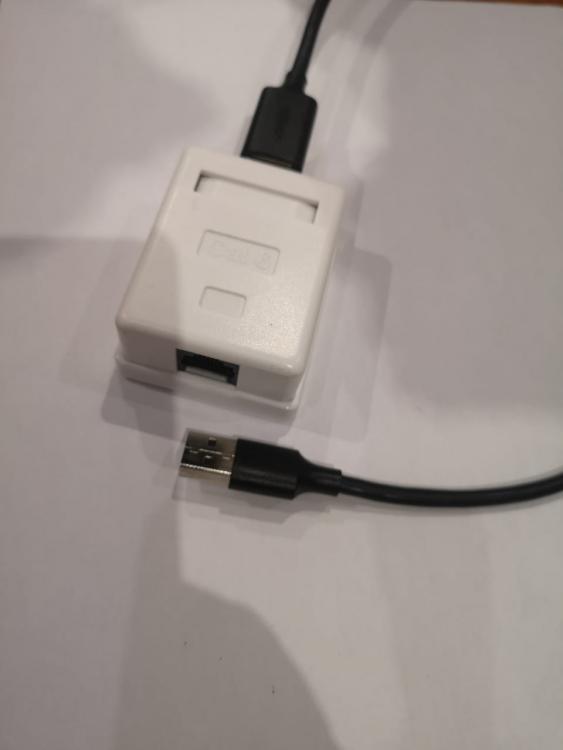

Hi,

I use a normal USB-Serial converter. I then made a cable DB9 to RJ11 and used the info in the Pylontech manual to wire. It is working fine on ICC software and Raspberry PI. I just bought a US3000C and the console port is now a RJ45. I just made a new DB9 to RJ45 cable using info in Pylontech manual. That is also working fine. Just remember RS232-TX of the Pylontech goes to RS-232 RX on DB9 and RS232-RX of the Pylontech goes to RS-232 TX on DB9.



Link to comment
Share on other sites
