MrOccO Posted January 13, 2021 Posted January 13, 2021 Hi All, please can I ask some guidance with tech gurus here. We just purchased another 3000 pylontech battery. I see the new model is revised. The previous 2000 and 3000 we have used a RJ11 console port. We have a cable that communicated fine with the batteries to the PC via serial RS232. The new 3000c unit has a RJ45 console port. Anyone know what the pinout is for the console port in order for me to make up a new cable? Quote
DeeJay Posted January 25, 2021 Posted January 25, 2021 Hi there. I came across this problem last week when trying to install new US3000C batteries. I know you asked this a little while ago, but hopefully this helps you... I asked around and tried to get a definitive answer to this. No one could help. I kept getting given the incorrect cable pin outs. Eventually I used a bit of logic with the manual and what I could find on the net, and figured it out. I made up my own cable and it worked perfectly. here's the pinouts for the new US3000C model. Battery Pin 8 to Inverter Pin 3 ; Battery Pin 7 to Inverter Pin 5 Good luck Let me know if this helps you? aquarat 1 Quote
Yellow Measure Posted January 26, 2021 Posted January 26, 2021 (edited) 20 hours ago, DeeJay said: Hi there. I came across this problem last week when trying to install new US3000C batteries. I know you asked this a little while ago, but hopefully this helps you... I asked around and tried to get a definitive answer to this. No one could help. I kept getting given the incorrect cable pin outs. Eventually I used a bit of logic with the manual and what I could find on the net, and figured it out. I made up my own cable and it worked perfectly. here's the pinouts for the new US3000C model. Battery Pin 8 to Inverter Pin 3 ; Battery Pin 7 to Inverter Pin 5 Good luck Let me know if this helps you? I think that what @MrOccO is wanting to do is to connect the "console port" (RJ-11) to his PC's serial port (RS-232), not the inverter. The US3000C does not have a console port, so the only options are RS-485 (RJ-45 connector) and CAN-bus (the latter which is probably being either used for inverter comms, or BMS comms in the event of multiple batteries). So the only viable option seems to be to use the RS-485 port. The electrical signal characteristics of RS-232 and RS-485 differ, so a converter is necessary, like a RS232 to RS485 adapter such as this. I could be wrong though, if anyone knows of another / easier way to get serial comms to a Pylontech US3000C, please correct me? @MrOccO, this is also just theory, I have also not physically done this before, so getting a converter and hooking it up might still not work, for a variety of reasons. And the console provides a command line interface (cli), whereas I am led to believe that the RS-485 uses the modbus protocol and commands. It may be best to consult the vendor of the PC software that you are using, if any, for further clarification. Edit: I see that Centurion Solar has a cable that may/ may not work. Edited January 26, 2021 by YellowTapemeasure added hyperlink Quote
MrOccO Posted January 26, 2021 Author Posted January 26, 2021 Hi Guys, just an update. I have managed to get it working. @YellowTapemeasureThe unit does have a console port but now they use a RJ45 connection. My frustration is dropping 20k per battery and the vendor does not want to know you in terms of support. Frustrating. Anyway the pinout is as follows for anyone else looking for it: RJ45 CONNECTOR:-------------- > DB9 RS232 PIN 1 -------------- > NOT CONNECTED PIN 2-------------- > NOT CONNECTED PIN 3-------------- > PIN 2 PIN 4-------------- > NOT CONNECTED PIN 5-------------- > NOT CONNECTED PIN 6-------------- > PIN 3 PIN 7-------------- > NOT CONNECTED PIN 8-------------- > PIN 5 Yani from Multisib had to make an update on his brilliant program and now Multisib communicates with Pylontech and Invertor flawlessly. Thanks @DeeJayand @YellowTapemeasurefor your valuable feedback. Coulomb, Yellow Measure, Anonymous_Llopi and 1 other 2 2 Quote
Yellow Measure Posted January 26, 2021 Posted January 26, 2021 9 minutes ago, MrOccO said: Hi Guys, just an update. I have managed to get it working. @YellowTapemeasureThe unit does have a console port but now they use a RJ45 connection. My frustration is dropping 20k per battery and the vendor does not want to know you in terms of support. Frustrating. Anyway the pinout is as follows for anyone else looking for it: RJ45 CONNECTOR:-------------- > DB9 RS232 PIN 1 -------------- > NOT CONNECTED PIN 2-------------- > NOT CONNECTED PIN 3-------------- > PIN 2 PIN 4-------------- > NOT CONNECTED PIN 5-------------- > NOT CONNECTED PIN 6-------------- > PIN 3 PIN 7-------------- > NOT CONNECTED PIN 8-------------- > PIN 5 Yani from Multisib had to make an update on his brilliant program and now Multisib communicates with Pylontech and Invertor flawlessly. Thanks @DeeJayand @YellowTapemeasurefor your valuable feedback. Ah yes, I now see it Thanks for pointing out my mistake. MrOccO 1 Quote
Rautenbach Posted January 26, 2021 Posted January 26, 2021 Interesting I'll also try and make one myself. Previously I bought one here for R650: https://solar-assistant.io/shop It seems like the CenturionSolar/ICC pylontech cable works on SolarAssistant and vice versa. Software is significantly different though. Quote
Denarius Posted January 26, 2021 Posted January 26, 2021 6 hours ago, MrOccO said: Hi Guys, just an update. I have managed to get it working. @YellowTapemeasureThe unit does have a console port but now they use a RJ45 connection. My frustration is dropping 20k per battery and the vendor does not want to know you in terms of support. Frustrating. Anyway the pinout is as follows for anyone else looking for it: RJ45 CONNECTOR:-------------- > DB9 RS232 PIN 1 -------------- > NOT CONNECTED PIN 2-------------- > NOT CONNECTED PIN 3-------------- > PIN 2 PIN 4-------------- > NOT CONNECTED PIN 5-------------- > NOT CONNECTED PIN 6-------------- > PIN 3 PIN 7-------------- > NOT CONNECTED PIN 8-------------- > PIN 5 Yani from Multisib had to make an update on his brilliant program and now Multisib communicates with Pylontech and Invertor flawlessly. Thanks @DeeJayand @YellowTapemeasurefor your valuable feedback. Hi @MrOccO I just want to confirm something, you mention that: RJ45 PIN 3 ------- DB9 PIN 2 RJ45 PIN 6 ------- DB9 PIN 3 Is that male or female DB9? Because PIN2 and PIN3 is swapped between male and female. It swaps the RX and TX of course. Quote
MrOccO Posted January 26, 2021 Author Posted January 26, 2021 Hi @Denarius, the RS232 connector is a female. Quote
Anonymous_Llopi Posted January 29, 2021 Posted January 29, 2021 On 2021/01/26 at 6:44 AM, MrOccO said: Hi Guys, just an update. I have managed to get it working. @YellowTapemeasureThe unit does have a console port but now they use a RJ45 connection. My frustration is dropping 20k per battery and the vendor does not want to know you in terms of support. Frustrating. Anyway the pinout is as follows for anyone else looking for it: RJ45 CONNECTOR:-------------- > DB9 RS232 PIN 1 -------------- > NOT CONNECTED PIN 2-------------- > NOT CONNECTED PIN 3-------------- > PIN 2 PIN 4-------------- > NOT CONNECTED PIN 5-------------- > NOT CONNECTED PIN 6-------------- > PIN 3 PIN 7-------------- > NOT CONNECTED PIN 8-------------- > PIN 5 Yani from Multisib had to make an update on his brilliant program and now Multisib communicates with Pylontech and Invertor flawlessly. Thanks @DeeJayand @YellowTapemeasurefor your valuable feedback. Thank you so much for this information, I have 3 US3000B bateries and bought another one, but instead of them sending me a B they sent me a C!!! I had a RJ11 to DB-9 Serial to usb going into a rapsberry pi for ICC Solar, and it wasn't a pleasant surprise to see that they changed the console port from rj11 to a rj45, even if the RJ11 fits It doesn't work on the C Then I had the idea of making the C battery a Slave (and just conect the RJ11 on the B Master) but that doesn't work because apparently the C has to be the master if you have any Bs Anyways I did the cable and it works perfectly with icc, here's a more visual thingy if you wanna make it and wherever your db-9 port is male or female: MrOccO, mojive, PurePower and 1 other 4 Quote
rezna8 Posted March 21, 2021 Posted March 21, 2021 Is there any link to software like Battery View that works with US2000C or US3000C ??? For Win10. Quote
PurePower Posted March 21, 2021 Posted March 21, 2021 8 hours ago, rezna8 said: Is there any link to software like Battery View that works with US2000C or US3000C ??? For Win10. Check my post here: Quote
rezna8 Posted March 22, 2021 Posted March 22, 2021 Battery view does not want to communicate with US2000C. I created the cable according to the instructions above. Is there a new version of Battery view that can display the status of the US2000C / 3000C ??? Is there any other program to view BMS? Quote
Japie Muller Posted March 25, 2021 Posted March 25, 2021 Good day, How do I know if I have the Pylontech US3000B or OS3000C. The part number that I can see is US3000NA01V00101 but I cannot find any information to tell me if it is the B or C? Quote
Denarius Posted March 25, 2021 Posted March 25, 2021 2 minutes ago, Japie Muller said: Good day, How do I know if I have the Pylontech US3000B or OS3000C. The part number that I can see is US3000NA01V00101 but I cannot find any information to tell me if it is the B or C? Check your RS232 console port. If it looks like a phone line you have an A or B. If it looks like a network port you have C. PurePower 1 Quote
zyxel0815 Posted April 17, 2021 Posted April 17, 2021 Hi, as I also bought 2 US2000C and attached ist to my 4 US2000B. I can tell you ist is working well. I use this Software to Monitor both inverters and all batteries. Just give it a try. No installation needed, just connect your serial cable using a rs232 to USB Adapter. Software can be found here : www.multisibcontrol.net Regards Markus Quote
catalincre Posted November 4, 2021 Posted November 4, 2021 Can please help me someone with an info about the console cable for this us2000C? I have 3 of them in parallel with other 2 us2000 plus. I can see al 5 under multisib software ( doesn't matter what baud rate is selected with the dip switch), but I get "time out" message in battery view every single time. If I use the cable from ICC with the rj11 i can see the plus pylontech, but only the plus and the one what is actually connected. I want to see all 5 under solpiplog. Quote
PurePower Posted November 5, 2021 Posted November 5, 2021 On 2021/03/22 at 2:03 AM, rezna8 said: Battery view does not want to communicate with US2000C. I created the cable according to the instructions above. Is there a new version of Battery view that can display the status of the US2000C / 3000C ??? Is there any other program to view BMS? Try BatteryView version 3.0.24 from the thread below. Quote
PurePower Posted November 5, 2021 Posted November 5, 2021 On 2021/03/25 at 5:03 PM, Japie Muller said: Good day, How do I know if I have the Pylontech US3000B or OS3000C. The part number that I can see is US3000NA01V00101 but I cannot find any information to tell me if it is the B or C? Use BatteryView from my previous post on this thread. There will be info on the left hand side. Quote
PtaSolar Posted November 8, 2021 Posted November 8, 2021 Good morning to all the guru's (I am totally technical ignoramus - and Newbie on this site, plse excuse any breaches of protocol) I just replaced the previous batteries on my system with 3 Pylontech US3000C batteries - similar to other people (Deejay and Occo above) I have problems with the new RS485 port when my inverter has a RS232 comms port. I have a Solax SK-SU5000E inverter. I see that they found a solution for their comms cable problems and if anybody could help me to find out what the pinouts must be to connect the batteries to my inverter I would be extremely grateful. Even if someone can just give me a reference to an expert who might know - After spending what I consider to be a lot of money on the batteries which are currently paperweights I would really be willing to pay a lot for a solution!! I have contacted the battery supplier and Solax, but without any joy. Quote
Chris Jensen Posted May 6, 2022 Posted May 6, 2022 Hi All Hope someone could assist me in my dilemma. I have a Raspberry pie with solar-assistant installed. It works well with my inverters, I now just want to connect my pylontech us3000c master battery to the pie. I have bought a usb to rs232 converter(picture attached) and I am not sure how to crimp the rj45. I have tried green to pin 8,red to pin 6 and white to pin 3, left out the black wire but there is no communication with the pie. Hope someone can help me out. Thanks in advance. Quote

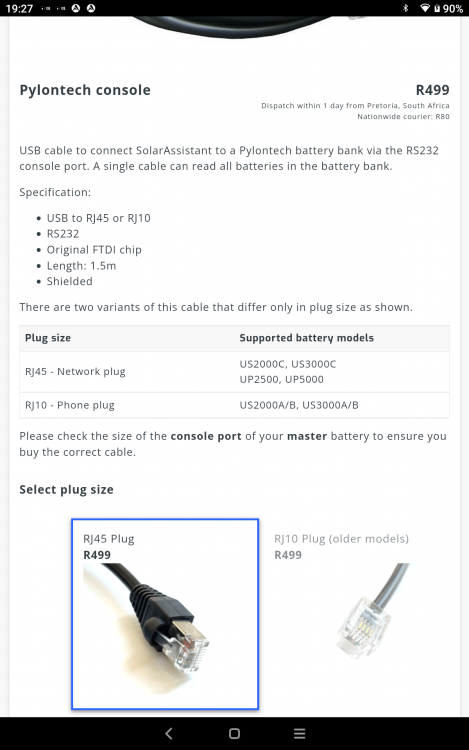

Chris Louw Posted May 7, 2022 Posted May 7, 2022 On 2022/05/06 at 6:30 PM, Chris Jensen said: Hi All Hope someone could assist me in my dilemma. I have a Raspberry pie with solar-assistant installed. It works well with my inverters, I now just want to connect my pylontech us3000c master battery to the pie. I have bought a usb to rs232 converter(picture attached) and I am not sure how to crimp the rj45. I have tried green to pin 8,red to pin 6 and white to pin 3, left out the black wire but there is no communication with the pie. Hope someone can help me out. Thanks in advance. Available at Solar assistant Quote
Stinger Posted February 21, 2023 Posted February 21, 2023 Can someone please help me with the color codes to crimp a RJ45 connector for a Pylontech UP5000 battery? I dont want to buy another cable as I already have a RJ11 cable that works perfectly with my US3000 battery bank and ICC software. I purchased an additional UP5000 that must be set as the master and now need a RJ45 connector. I want to cut of the RJ11 connector and crimp a new RJ45 for the UP5000. Quote
BritishRacingGreen Posted February 21, 2023 Posted February 21, 2023 @Stinger Please find the details below from another post on this forum : So here is the summary Axpert Inverter <--> Pylontech Pin 3 <--> Pin 8 (RS485 B) Pin 5 <--> Pin 7 (RS485 A) You don't have to tie any GND connections. Quote
PurePower Posted February 21, 2023 Posted February 21, 2023 42 minutes ago, Stinger said: Can someone please help me with the color codes to crimp a RJ45 connector for a Pylontech UP5000 battery? I dont want to buy another cable as I already have a RJ11 cable that works perfectly with my US3000 battery bank and ICC software. I purchased an additional UP5000 that must be set as the master and now need a RJ45 connector. I want to cut of the RJ11 connector and crimp a new RJ45 for the UP5000. I am assuming you referring to the cable that goes into the Console port. The UP5000 uses the same RJ45 connection as a US3000C. Quote
Stinger Posted February 21, 2023 Posted February 21, 2023 Thanks for the feedback and help. Yes, it goes in to the COM port (RJ45) and into a raspberry pi (USB). I am going to cut off the RJ11 and crimp a RJ45 onto the USB/com cable to allow the UP5000 communication with the raspberry pi and inverter via ICC. PurePower 1 Quote
